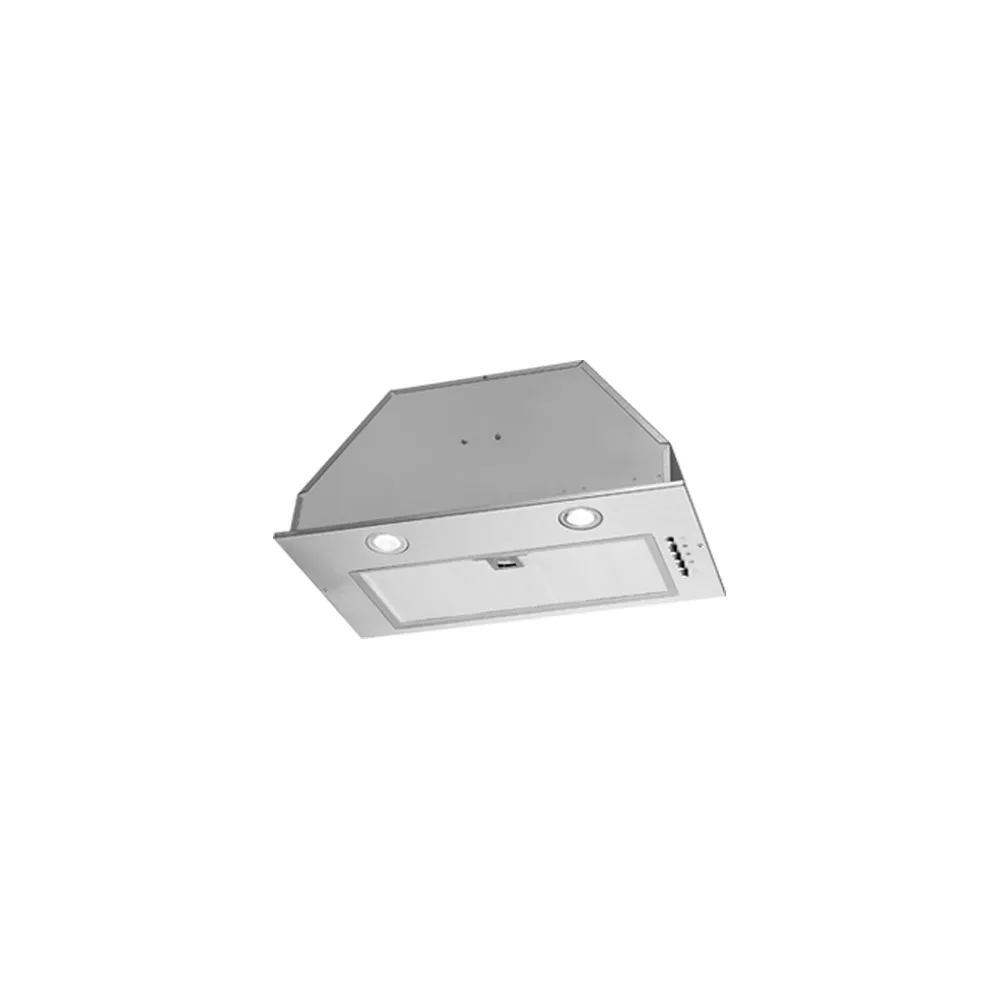

RANGE HOOD - 24122 - BUILT-IN ELITE 22" - 490 CFM - STAINLESS STEEL

Name: RANGE HOOD - 24122 - BUILT-IN ELITE 22" - 490 CFM - STAINLESS STEEL
Brand: LUMIFARO
SKU: 24122
Price: 323.97 CAD
Availability: InStock

SKU: 24122

Brand: LUMIFARO

Want a kitchen that stays fresh without a bulky hood hanging in the middle of your cabinets? The LUMIFARO Elite 24122 is a built-in range hood, also called a range hood insert or custom hood liner, designed to disappear inside a cabinet or a custom hood enclosure above your cooktop. With a powerful 490 CFM blower in a 22" width, it captures smoke, grease and cooking odours at the source, making it a smart choice for homeowners renovating a kitchen and for contractors building custom cabinetry across Canada.

Performance meets comfort: this stainless steel range hood offers 3-speed soft-touch controls and a noise level that starts at a whisper-quiet 0.6 sones on low speed and reaches 8.0 sones on high when you are searing or stir-frying. Two 5W LED bulbs are included to light your cooking surface clearly, and the 5-layer aluminum grease filters are included too. The hood exhausts through a 6" round vertical vent, and an optional CF24000 disc-shaped charcoal filter pair is available when you need a recirculating setup. At 28.5 lbs with a required opening of 10 1/4" x 19 1/2", installation planning is simple.

This kitchen hood insert shines in modern kitchens, condo renovations, cottages and custom builds where the hood must blend into wood or painted cabinetry. It is warranted for residential use: 1 year on parts and labour, then 2 years on parts only. Pair it with its matching charcoal filter if ducting outside is not possible, have it installed by a qualified installer, and enjoy a cleaner, quieter kitchen every day with the LUMIFARO 24122.

A built-in hood that hides in your cabinetry
The LUMIFARO Elite 24122 is a built-in range hood made to be installed inside a cabinet or a decorative hood enclosure. Only the stainless steel underside and its controls remain visible, so your kitchen design stays clean and uninterrupted. It is a favourite for custom range hood projects where a cabinetmaker builds the enclosure and the insert does the ventilation work. The stainless steel finish is easy to wipe down and matches most modern appliances.

Ventilation power and quiet operation
The blower delivers 490 CFM, enough to handle everyday family cooking and the smoke of a hot pan. The 3-speed soft-touch controls let you choose the right level: low speed runs at 0.6 sones for simmering, while high speed reaches 8.0 sones for heavy frying. Air leaves through a 6" round vertical vent exhaust. The 5-layer aluminum range hood filters trap grease before it reaches the duct; they are included and can be cleaned regularly. For installations without outside ducting, the optional CF24000 charcoal filter (pair) captures odours in recirculating mode.

Lighting over the cooktop
Two 5W LED bulbs are included and light up the cooking surface so you can check doneness, read a recipe and keep an eye on every pot. LED lighting runs cool and uses far less energy than old halogen bulbs.

Installation tips
The required cabinet opening is 10 1/4" x 19 1/2" and the unit weighs 28.5 lbs. Connect and test the hood before final installation. Remove the protective adhesive strip on the exhaust flaps, never install the duct so tightly that it prevents the flaps from opening, and use duct tape rather than screws on the hood outlet. To check the flaps, run the hood for 30 seconds, turn it off, and after 2 or 3 seconds you should hear them close. Installation by a qualified installer is recommended; problems caused by improper installation are not covered.

Technical specifications
Model: 24122
Width: 22"
Airflow: 490 CFM
Noise level: 0.6 sones (low) to 8.0 sones (high)
Controls: 3-speed soft-touch
Lighting: 2 LED bulbs, 5W (included)
Filters: 5-layer aluminum (included), charcoal CF24000 optional
Exhaust: 6" round vertical
Warranty: residential use, 1 year parts and labour, then 2 years parts only. The spec sheet is available in the Documentation tab.
