A powerful insert for custom kitchens

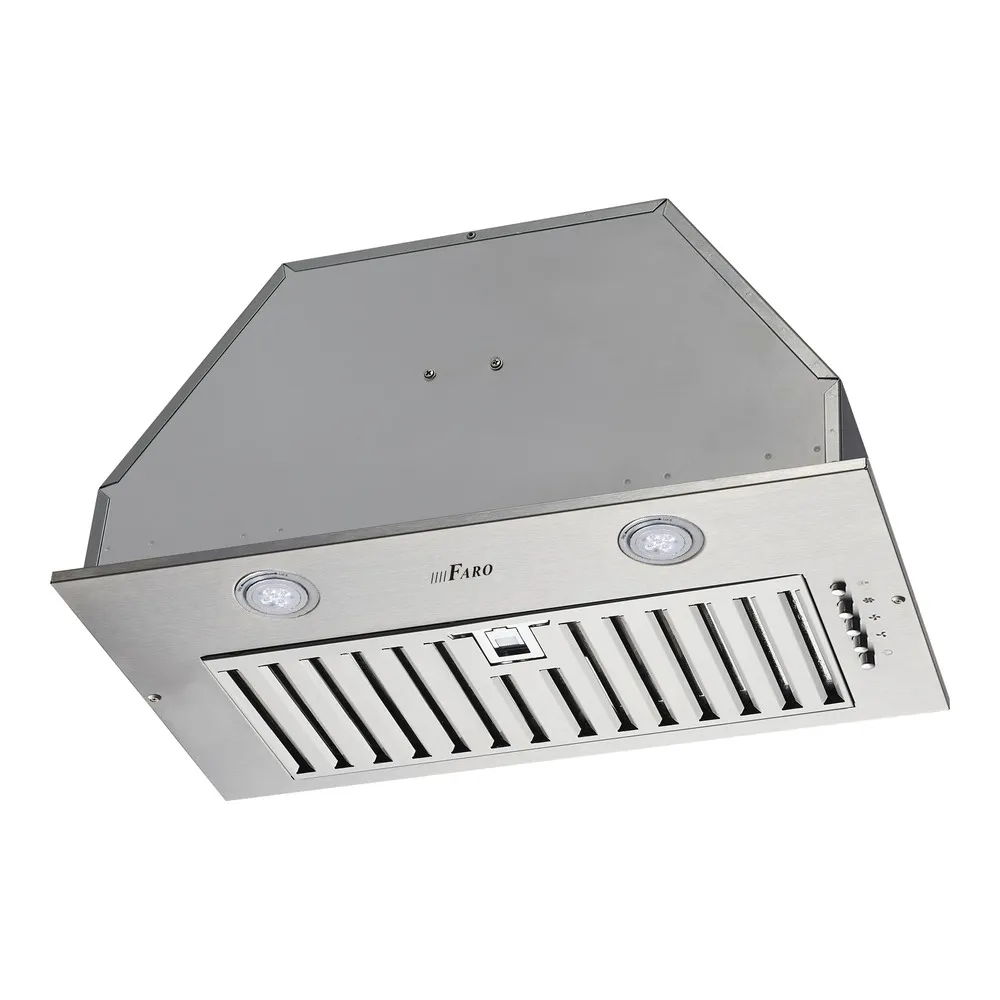

The LUMIFARO Elite-Pro 24030 is a built-in range hood designed to be mounted inside a cabinet or a custom hood enclosure. Only the stainless steel underside, the filters and the controls remain visible, so the kitchen keeps a clean, seamless look. This is exactly what designers and cabinetmakers look for in a custom range hood project: the enclosure carries the style, and the insert does the ventilation work. The stainless steel finish is easy to clean and matches most modern appliances.
600 CFM of ventilation
With 600 CFM, this hood is well suited to cooks who sear, grill on a stovetop griddle or cook for a crowd. The 3-speed push button control is straightforward: low speed runs at 0.7 sones for simmering and everyday cooking, while high speed reaches 9.0 sones when you need to clear smoke fast. Air leaves through a 6" round vertical vent exhaust, to be ducted to the outside. Good ventilation also protects cabinets, ceilings and walls from grease buildup over the years.
Baffle filters and LED lighting
The included stainless steel baffle filters channel the air and trap grease before it enters the duct. They are durable and simple to remove for cleaning, a practical detail for anyone searching for easy-care range hood filters. Two 5W LED bulbs are also included; they light up the cooking surface and use far less energy than old halogen bulbs.
Installation tips
The required opening is 10 3/4" x 28 3/8" and the unit weighs 32 lbs. Connect and test the hood before final installation. Remove the protective adhesive strip on the exhaust flaps, avoid installing the duct so tightly that the flaps cannot open fully, and use duct tape rather than screws on the hood outlet. To check the flaps, run the hood for 30 seconds, turn it off, and after 2 or 3 seconds you should hear them close one after the other. Installation by a qualified installer is recommended, as problems caused by improper installation are not covered by the warranty.
Technical specifications
Model: 24030
Width: 30"
Airflow: 600 CFM
Noise level: 0.7 sones (low) to 9.0 sones (high)
Controls: 3-speed push button
Lighting: 2 LED bulbs, 5W (included)
Filters: stainless steel baffle (included)
Exhaust: 6" round vertical
Warranty: residential use, 1 year parts and labour, then 2 years parts only. The spec sheet is available in the Documentation tab.
