Turn corners with your track

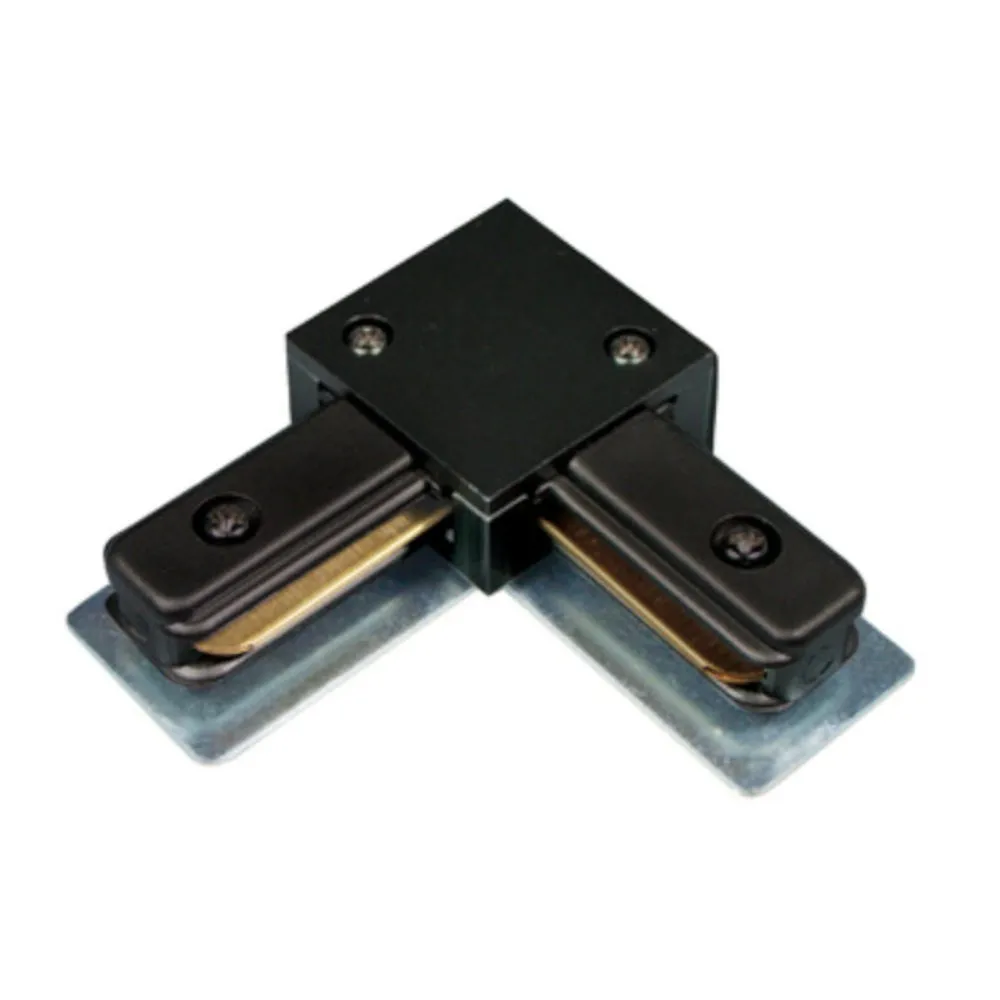

The L connector for track LCTC-L-6102-BK is a corner fitting for a track lighting system: it connects two track sections at 90°, forming an L. Instead of stopping a run at a wall or installing two separate tracks, you can continue around the corner and keep one coherent layout. It is the answer for anyone searching for an L-shaped track connector or a right-angle track joiner, whether for a renovation or a new build.
Part of a single-circuit track system
This connector belongs to a single-circuit track system designed for 120V applications. According to the spec sheet, the system electrical rating is 20A, 120V, 60Hz, and the single hot and neutral conductors are rated for 20 amps per branch circuit. The track itself is extruded aluminum with flat, solid integral conductors; the copper electrical conductors are concealed in an insulating thermoplastic cross-section, and sections are joined together using compatible track connectors. A polarity groove on the face of the track indicates the location of the grounding conductor. The system also includes other connector shapes, straight, T, X and flexible, for more complex layouts.
Installation
Turn off the power at the breaker and have the installation completed by a qualified electrician, in line with the electrical code of your province. Plan the corner precisely: measure both walls or both ceiling lines, mark the point where the two runs meet and position the L connector there. When you join the sections, use the polarity groove on the face of the track to keep the grounding conductor on the correct side through the corner. Secure the track so both legs of the L sit flush and square, then install your track lighting heads on either side and aim them. The spec sheet (PDF) is available in the Documentation tab.
Where an L layout shines
At home, an L-shaped run of track lighting follows an L-shaped kitchen counter, wraps two sides of an island, lights a corner reading nook or frames a sectional sofa in a basement family room. In commercial spaces, it outlines corner displays, follows two walls of a boutique, lights a gallery corner or runs along a bar and its back shelf. The black finish stands out on white ceilings for a graphic, contemporary look, or blends into dark and exposed ceilings. It is designed for residential and commercial projects across Canada.
Technical specifications
Model: LCTC-L-6102-BK
Type: L connector for track
Function: connects two track sections at 90°
Finish: black (BK)
Other finishes: brushed nickel (BN), silver (SL), white (WH)
Track system: single circuit, for 120V applications
System electrical rating: 20A, 120V, 60Hz
Applications: residential and commercial projects
Documentation: spec sheet (PDF)
