The corner piece of your layout

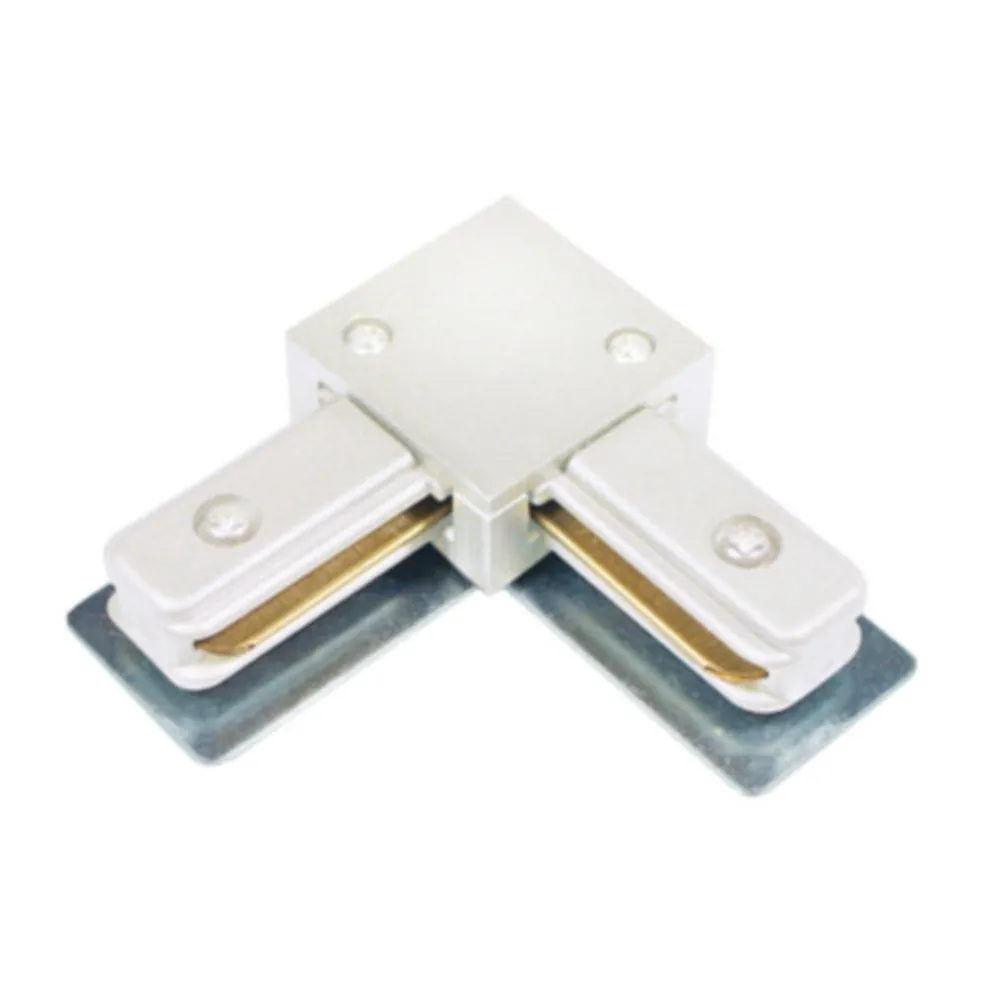

The L connector for track LCTC-L-6102-WH is a right-angle fitting for a track lighting system: it connects two track sections at 90°. It lets a run change direction cleanly, so the track can follow the shape of a kitchen, the edge of a ceiling or the walls of a shop instead of stopping at a corner. Searched as a corner connector or an L-shaped track connector, it is the part that makes lighting plans fit real rooms.
What the spec sheet says about the system
The connector belongs to a single-circuit track system for 120V applications, whose system electrical rating is 20A, 120V, 60Hz; its single hot and neutral conductors are rated for 20 amps per branch circuit. The track is extruded aluminum with flat, solid integral conductors, and the copper electrical conductors are concealed in an insulating thermoplastic cross-section. Sections are joined together using compatible track connectors. A polarity groove on the face of the track indicates the location of the grounding conductor. In addition to the L connector, the system includes straight, T, X and flexible connectors for other configurations.
Step-by-step installation
First, turn off the power at the breaker; the connections should be made by a qualified electrician in accordance with the electrical code of your province. Next, mark both legs of the L on the ceiling and locate the exact corner. Then join the two sections with the connector, keeping the polarity groove on the same side so the grounding conductor stays aligned through the corner. Finally, check that the track is flush and square before securing it, and install your track lighting heads. The spec sheet (PDF) can be found in the Documentation tab.
Bright, discreet and versatile
At home, a white L-shaped run of track lighting suits bright kitchens, all-white living rooms, playrooms, laundry rooms and home offices, where fixtures should fade into the ceiling. In commercial settings, it serves clinics, pharmacies, beauty salons, art studios and boutiques that want even light along two walls without visual clutter. The white finish keeps attention on what is lit rather than on the hardware. It is designed for residential and commercial projects everywhere in Canada.
Technical specifications
Model: LCTC-L-6102-WH
Type: L connector for track
Function: connects two track sections at 90°
Finish: white (WH)
Other finishes: black (BK), brushed nickel (BN), silver (SL)
Track system: single circuit, for 120V applications
System electrical rating: 20A, 120V, 60Hz
Applications: residential and commercial projects
Documentation: spec sheet (PDF)
