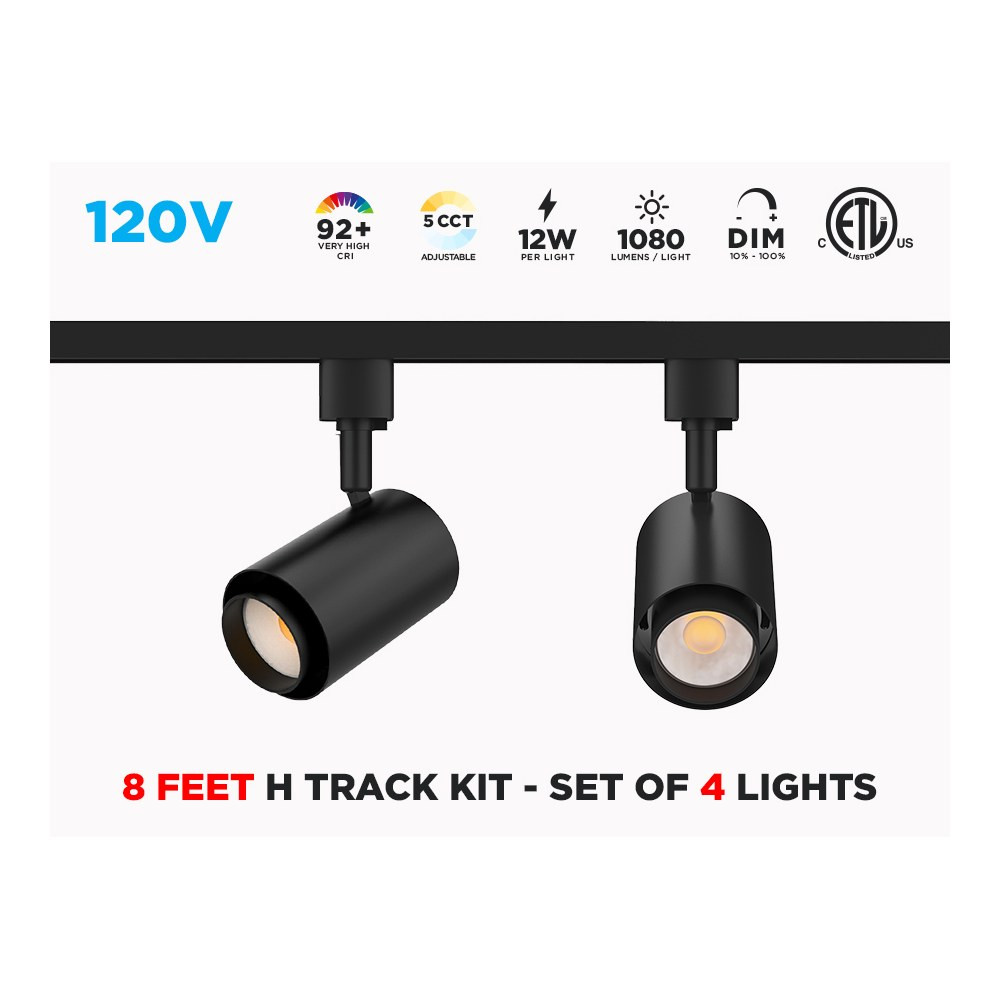

A complete kit, not a pile of partsTrack lighting usually means buying a rail, heads, a connector and a canopy separately and hoping the standards match. Here everything ships together and speaks the same language: an
8-foot H-type track, four 12W LED heads with
H-type 3-wire adaptors, and a connector designed for a standard ceiling junction box with a floating canopy. H-type is the most common track standard on the market, which makes the layout easy to plan and easy to expand later with additional H-type heads.
Light quality you can seeEach head delivers
1080 lumens from only
12W, an efficiency of
90 lumens per watt — that's roughly the output of a standard 75W bulb per head, with four heads covering a long run. The
CRI of 92 is where this set really separates itself from basic spotlights: at that level, reds stay red, whites stay clean and merchandise, artwork and finishes look the way they do in daylight. The
36° lens gives a controlled accent beam that grazes a wall or lands on a display without spilling everywhere, and other beam angles are available separately if a project needs a wider wash.
Technical specificationsSKU: TRACKLK8-B
Brand: LED MONTREAL
Input voltage: AC120V 60Hz
Power per light: 12W
Lumens per light: 1080 lm
Light efficiency: 90 lumens/W
CRI: 92
Colour temperatures: 5 selectable CCT
Dimming: Triac dimming
Beam angle: 36° lens (other beam angles available separately)
Track adaptor: H-type, 3 wires
Head movement: 350° swivel, 90° tilt
Track length: 8 feet
Heads included: 4
Colour: Black
Certification: cETLus
Projected lifespan: 50,000 hours
Electrical and installationThe set connects to a standard
120V household or commercial circuit through the ceiling junction box, so in most renovations you reuse the box left by an old fixture instead of opening the ceiling. Mount the track, slide each head in, twist to lock, then set the swivel and tilt. Because the heads are
Triac dimmable, pair the circuit with a compatible Triac (leading-edge) dimmer to take the room from full work light down to a soft evening level; always confirm dimmer compatibility and stay within the dimmer's load range. Electrical work should follow the Canadian Electrical Code and your provincial rules — when in doubt, have a licensed electrician make the final connection.
Where it works and what's documentedUse it over a kitchen island or peninsula, along a hallway of framed photos, above a home-office desk, in a finished basement with low ceilings, or commercially in a boutique, café, salon, clinic waiting room or small gallery where displays change often and aimable light is worth more than fixed downlights. The
5 CCT selection lets one kit serve a warm residential feel or a crisp retail look, and the black finish keeps the hardware discreet. The matching
white version of this 8-foot H-track set is available for lighter ceilings or mixed installations. Full details are in the technical PDF spec sheet found in the Documentation tab of this page.
Compatible H-Track system components•
4 Feet H Type Track - Black (TRACK4-B)
•
8 Feet H Type Track - Black (TRACK8-B)
•
Corner (L) Connector for H Type Track - Black (TRACKACC-B)
•
Mini Joiner for H Type Track - Black (TRACKACC-B-MJ)
•
Flexible Connector for H Type Track - Black (TRACKACC-B-FLEX)
•
Floating Canopy for H Type Track - Black (TRACKPOW-B)
•
Monopoint Canopy for H Type Track Head - Black (TRACKPOW-B-MONO)
•
Live End Connector for H Type Track - Black (TRACKPOW-B-LIVE)
•
12W LED Track Light Head for H-Track - Black (TRACKL-B)
•
20W 10° To 60° LED Track Light Head for H-Track - Black (TRACKLZ-B)
•
15° And 25° Lens for For H Type LED Track Light (TRACKLENS)
•
4 Feet H-Track Light Set: 2 Dimmable 12W LED Lights with 5 CCT - cETLus Certified - Black (TRACKLK-B)
