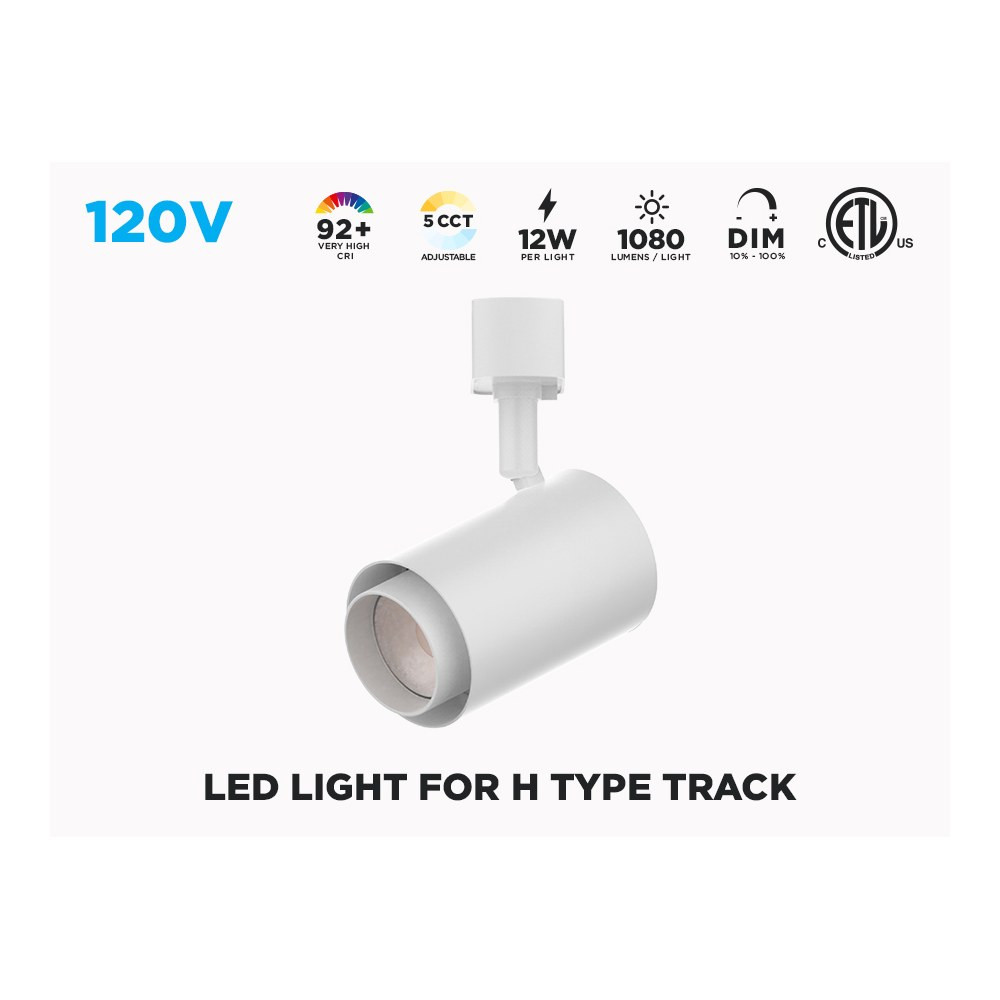

12W LED TRACK LIGHT HEAD FOR H-TRACK - WHITE

Name: 12W LED TRACK LIGHT HEAD FOR H-TRACK - WHITE
Brand: LED MONTREAL
SKU: TRACKL-W
Price: 49.97 CAD
Availability: InStock

SKU: TRACKL-W

Brand: LED MONTREAL

Point the light exactly where you want it, then move it again next season — that's the beauty of a good track light head. The 12W LED TRACK LIGHT HEAD FOR H-TRACK - WHITE by LED MONTREAL (SKU TRACKL-W) is a complete LED spot head that clips onto an H-type track and locks in place in seconds. People search for it as track lighting heads, track spots, rail spotlights or simply LED track lights, and they all mean the same thing: a swivelling head you add to a rail to build your own custom setup, replace a tired old halogen head, or extend a kit you already own. With a 350° swivel and a 90° tilt, one head can wash a brick wall, graze a kitchen island, or put a crisp pool of light on a painting — and be re-aimed later without tools.

Each head draws only 12W and delivers 1080 lumens, roughly the punch of a standard 75W bulb, at an efficiency of 90 lumens per watt. The integrated switch lets you pick between 5 selectable white colour temperatures, so one product covers warm, living-room light and cooler, task-friendly light without reordering. Colour rendering is a high CRI 92, which means wood grain, skin tones, fabrics and merchandise look the way they should instead of washed out. It runs on AC120V 60Hz, offers Triac dimming for standard wall dimmers, uses a 36° lens (other beam angles available separately), fits an H-type 3-wire track adaptor, and carries a projected lifespan of 50,000 hours in a clean white finish.

This head earns its place in kitchens over counters and islands, in living rooms and hallways for artwork, in home offices, and in retail boutiques, galleries, salons, cafés and showrooms where displays change constantly — a very Canadian reality when a shop resets its window every season. Because it is an accessory head, it mounts on any H-type (3-wire) track system and mixes freely with other heads on the same rail; for a two-tone look or darker ceilings, pair it with the matching 12W LED track light head for H-track in black. Build your run, aim it, dim it — and enjoy lighting that finally does what you want.

Sold separately
To complete the installation, add:
Channel / profile: TRACK4-W, TRACK8-W

Built to be aimed, over and over
The whole point of a track system is flexibility, and this head is designed around that idea. The adaptor is an H-type 3-wire connector: line it up with the track channel, twist to lock, and the head is powered and held. From there, the 350° swivel and 90° tilt let you aim the beam anywhere in the room, and re-aim it whenever the furniture, the artwork or the merchandise moves. The white finish keeps the head discreet against white ceilings and white tracks, so the eye sees the light rather than the fixture.

Light quality you can actually see
With CRI 92, this is accent-grade light. Reds stay red, whites stay clean, and the difference is obvious on artwork, food, clothing racks, wood cabinetry and cosmetics. The 36° lens gives a controlled, gallery-style beam that concentrates the 1080 lumens on a target instead of spilling everywhere, and other beam angles are available separately if you need a tighter accent or a wider wash. The 5 selectable white colour temperatures are chosen with the integrated switch on the head, so you can warm up a dining area and cool down a work zone using the exact same product.

Technical specifications
SKU: TRACKL-W
Brand: LED MONTREAL
Input voltage: AC120V 60Hz
Power: 12W
Lumens per light: 1080lm
Light efficiency: 90 lumens/W
CRI: 92
Dimming: Triac dimming
Beam angle: 36° lens (other beam angles available separately)
Track adaptor: H-type 3 wires
Colour: White
Adjustment: 350° swivel, 90° tilt
Projected lifespan: 50,000 hours

Electrical, dimming and installation
The head runs on standard 120V residential and commercial power, so no driver box or low-voltage transformer to hide. It is Triac dimmable, meaning it works with common forward-phase wall dimmers; as with any LED load, keep the total connected wattage within the dimmer's LED rating and test one head before wiring a full run. Installation is tool-free at the head: cut the power at the breaker, insert the adaptor into the live H-track channel, rotate to lock, restore power, then set the colour temperature switch before you aim. Heads can be positioned anywhere along the track, which makes spacing decisions easy — put them where the light is needed, not where a junction box happens to be.

Where it works and what it fits
Use it over a kitchen island or peninsula, along a hallway of framed photos, in a basement renovation with low ceilings, in a home office, or in a condo where adding new junction boxes is not an option. On the commercial side it suits boutiques, jewellery and clothing displays, art galleries, hair salons, cafés, showrooms and office reception walls. Because it is a component, compatibility is simple: it fits H-type 3-wire track only, and multiple heads can share the same rail. Mix finishes if you like — the same head is offered as the 12W LED track light head for H-track in black for darker ceilings or contrast looks.

Documentation
The technical PDF for the 12W LED TRACK LIGHT HEAD FOR H TYPE TRACK - WHITE is available in the Documentation tab, with the full electrical and photometric data listed above. Keep it handy for permit files, electrician quotes and dimmer selection.

Compatible H-Track system components
• 4 Feet H Type Track - White (TRACK4-W)
• 8 Feet H Type Track - White (TRACK8-W)
• Corner (L) Connector for H Type Track - White (TRACKACC-W)
• Mini Joiner for H Type Track - White (TRACKACC-W-MJ)
• Flexible Connector for H Type Track - White (TRACKACC-W-FLEX)
• Floating Canopy for H Type Track - White (TRACKPOW-W)
• Monopoint Canopy for H Type Track Head - White (TRACKPOW-W-MONO)
• Live End Connector for H Type Track - White (TRACKPOW-W-LIVE)
• 20W 10° To 60° LED Track Light Head for H-Track - White (TRACKLZ-W)
• 15° And 25° Lens for For H Type LED Track Light (TRACKLENS)
• 4 Feet H-Track Light Set: 2 Dimmable 12W LED Lights with 5 CCT - cETLus Certified - White (TRACKLK-W)
• 8 Feet H-Track Light Set: 4 Dimmable 12W LED Lights with 5 CCT - cETLus Certified - White (TRACKLK8-W)
