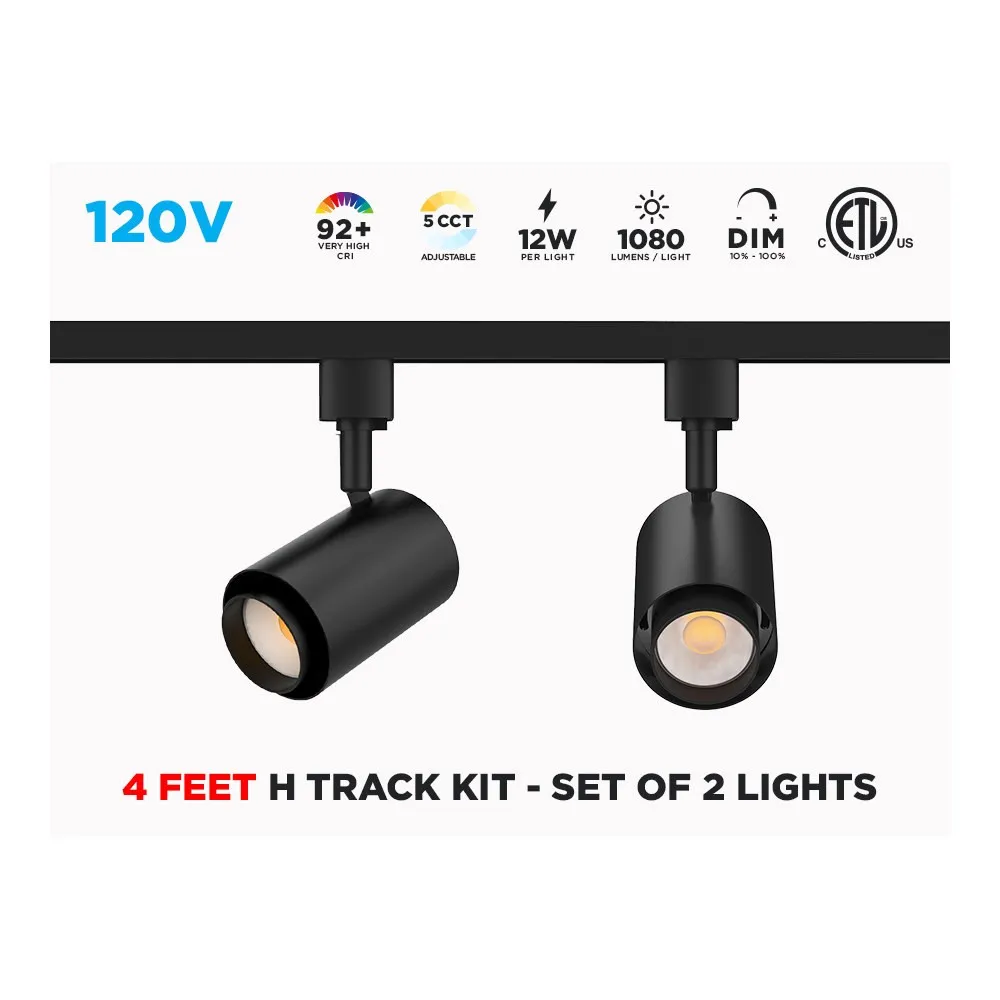

A complete kit, not a puzzleTrack lighting usually means buying a rail, heads, a connector and a canopy separately, then hoping they match. This set removes the guesswork: a 4-foot H-type track, two 12W LED heads and a connector for a standard ceiling junction box with a floating canopy, all designed to work together. The heads use an
H-type 3-wire track adaptor, the most common standard on the market, so they slide in, twist and lock in seconds. Each head offers 350° of swivel and 90° of tilt, which means you can re-aim the whole installation later — after you move the sofa, rearrange the artwork or rebuild the kitchen island.
Light quality you can actually seeEach LED head produces 1080 lumens from just 12W, an efficiency of 90 lumens per watt and roughly the output of a standard 75W bulb. The
CRI 92 rating is what sets this kit apart from generic spots: at that level, reds stay red, whites stay clean and skin tones look natural, which matters when you are lighting a backsplash, a clothing rack or a painting. The
5 CCT feature means five selectable white colour temperatures, so you pick the ambience on site instead of living with whatever the box gave you. The 36° lens delivers a focused accent beam; other beam angles are available separately if you need a wider wash.
Technical specificationsSKU: TRACKLK-B
Brand: LED MONTREAL
Input voltage: AC120V 60Hz
Power: 12W per light
Lumens per light: 1080lm
Light efficiency: 90 lumens/W
CRI: 92
Colour temperatures: 5 selectable CCT
Dimming: Triac dimming
Beam angle: 36° lens
Track adaptor: H-type 3 wires
Track length: 4 feet
Heads included: 2
Adjustment: 350° swivel, 90° tilt
Colour: Black
Lifespan: 50,000 hours
Certification: cETLus
Installation and dimmingWiring is straightforward for a renovation or a new build: the floating canopy connector mounts to a standard ceiling junction box, so in most cases you are replacing an existing fixture with no new electrical box required. The system runs on standard
120V residential and commercial power, and it is
Triac dimmable — pair it with a compatible Triac (forward-phase) LED dimmer to bring levels down for evenings and presentations. As with any LED dimming installation, confirm the dimmer's minimum and maximum load against the total wattage of the heads you connect, and always cut power at the panel before working. Any electrical work should follow the Canadian Electrical Code and local municipal requirements.
Where it works and what to knowHomeowners use this
LED track lighting kit over kitchen islands, in hallways as a gallery wall, above home office desks, in basements and in loft-style condos with exposed ceilings. Contractors and small businesses put it to work in boutiques, cafés, hair salons, galleries, offices and small showrooms where the merchandise moves every season and the lighting has to follow. The black finish is the go-to for dark or industrial ceilings; if your ceiling is white or your décor is lighter, the identical
4 feet H-track light set in white gives you the same performance in a discreet finish. Full details, including the values above, are in the technical spec sheet available in the Documentation tab of this page.
