    TUROSMART LINE VOLTAGE RELAY POWER PACK 120-347V 6A - 12V DC OUTPUT
    TUROSMART LINE VOLTAGE RELAY POWER PACK 120-347V 6A - 12V DC OUTPUT

    TUROSMART LINE VOLTAGE RELAY POWER PACK 120-347V 6A - 12V DC OUTPUT

    SKU: TL-TUROSMART/POWERPACK/PPA103S.D1

    Brand: TUROLIGHT

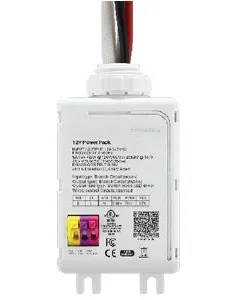

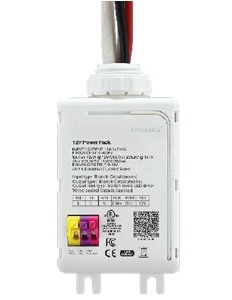

    The Turolight TuroSmart power pack TL-TUROSMART/POWERPACK/PPA103S.D1 switches line-voltage lighting (120-347V, 6A relay) from a low-voltage sensor. It supplies 12V DC, 200 mA to power the sensor and provides a 0-10V dimming wire for bi-level motion control. A 1/2 in. threaded nipple mounts it through a standard knockout.

    73.97$

    Specifications

    • Model: TL-TUROSMART/POWERPACK/PPA103S.D1
    • Input / switched load: 120-347V AC, 50/60 Hz
    • Relay: 6A max (720W @ 120V, 1200W @ 277V, 2082W @ 347V)
    • Auxiliary output: 12V DC, 200 mA (sensor power)
    • Dimming: Class 2, 0-10V DC, 10 mA max
    • Mounting: 1/2 in. threaded nipple
    • Indoor use only, IP20
    • Operating temperature: -30°C to 65°C
    • Colour: white
    • cULus listed, UL8750, RoHS
    • Warranty: 5 years
