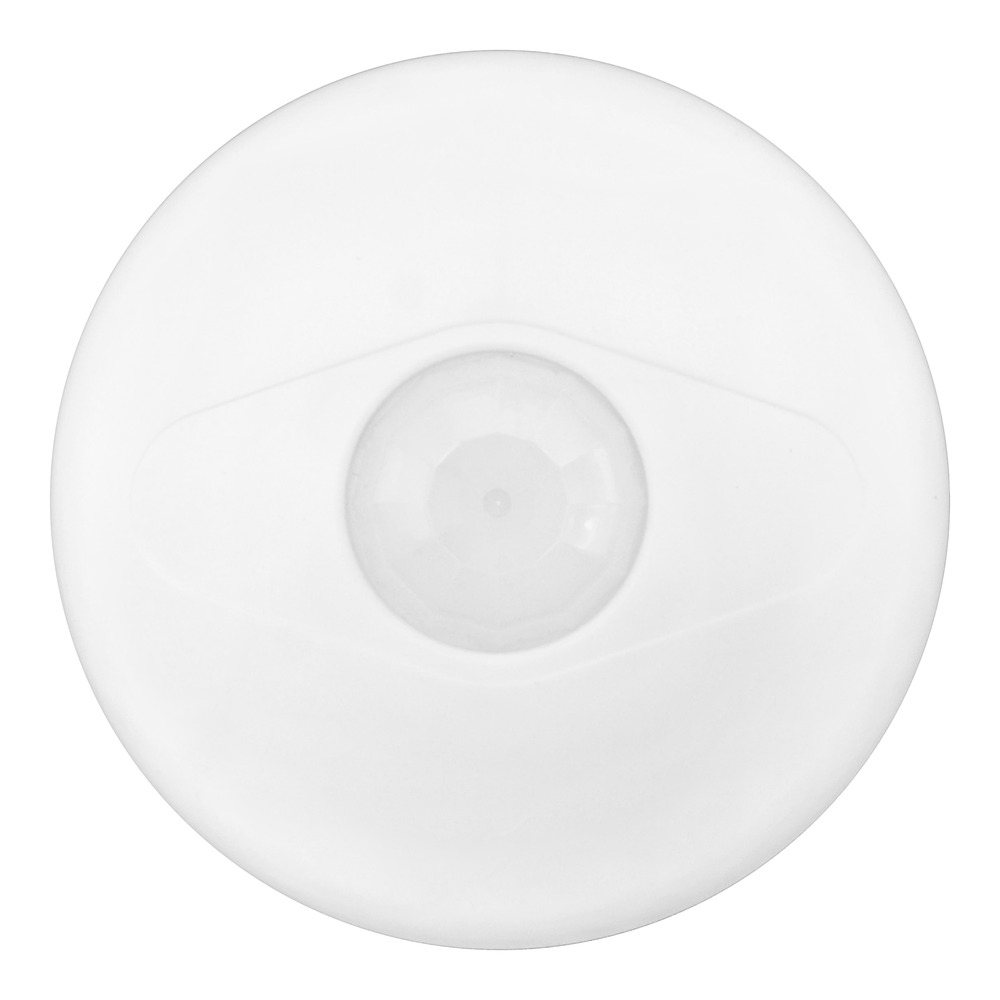

TL-TUROSMART PIR BLUETOOTH CEILING MOUNTED SENSOR 120-347V 0-10V

Name: TL-TUROSMART PIR BLUETOOTH CEILING MOUNTED SENSOR 120-347V 0-10V
Brand: TUROLIGHT
SKU: TL-TUROSMART-SENSOR-PIR-CEILING-120-347V-0-10V
Price: 185.97 CAD
Availability: InStock

SKU: TL-TUROSMART/SENSOR/PIR/CEILING/120-347V/0-10V

Brand: TUROLIGHT

Give your lights a brain, not just a switch. The TL-TUROSMART/SENSOR/PIR/CEILING/120-347V/0-10V is a low-profile ceiling-mounted PIR motion sensor with Bluetooth mesh control and 0-10V dimming output — the part people look for when they search "motion sensor", "ceiling occupancy sensor", "capteur de mouvement" or a Bluetooth switch for dimmable LED fixtures. It reads body heat with passive infrared technology, sits flat and discreet against the ceiling, and covers a full 360 degrees around it. Use it to turn LED panels, troffers, linear strips and downlights on when someone walks in, dim them when daylight floods the space, and shut them off when the room empties — no more lights burning all night in an empty warehouse aisle, storage room or office.

Built by TUROLIGHT, this sensor is a Bluetooth to 0-10V dimming signal converter running on a Bluetooth SIG mesh network, where each device relays the signal to its neighbours for far greater control distance. It accepts 120/230 (single phase)/277/347VAC, 50/60 Hz, so it drops into residential and commercial panels alike, and delivers a 0-10V dim control output with max. 25mA sinking current. Detection radius reaches Max. 20ft (6.1m) at a mounting height of 12ft (3.7m) Max., with a 360° detection angle and an LED motion indicator so you can see it working. The built-in light level sensor works from 10 to 300 footcandles (107.6 to 3,229.2 lux) for true daylight harvesting. Remote range is 50ft (15m) indoor, no backlight, typical outdoor wireless range is 150ft (40m), it has an on-board antenna, handles Max. 95% RH and 0°C ~ 55°C, and it's backed by a 5 years warranty.

It's a natural fit for offices, classrooms, clinics, corridors, stockrooms, garages, retail floors and finished basements — anywhere a Canadian project needs occupancy detection, scheduling and daylight harvesting without pulling new control wire. It's field installed and mounts to a 4 square junction box with double gang mud ring or a 4 inch octagonal junction box. Need simple on/off instead of dimming? Pair the room with the Bluetooth mesh 120-347V occupancy sensor on/off switch on the same mesh. Add this sensor to your next lighting package and let the ceiling do the thinking.

Construction and design

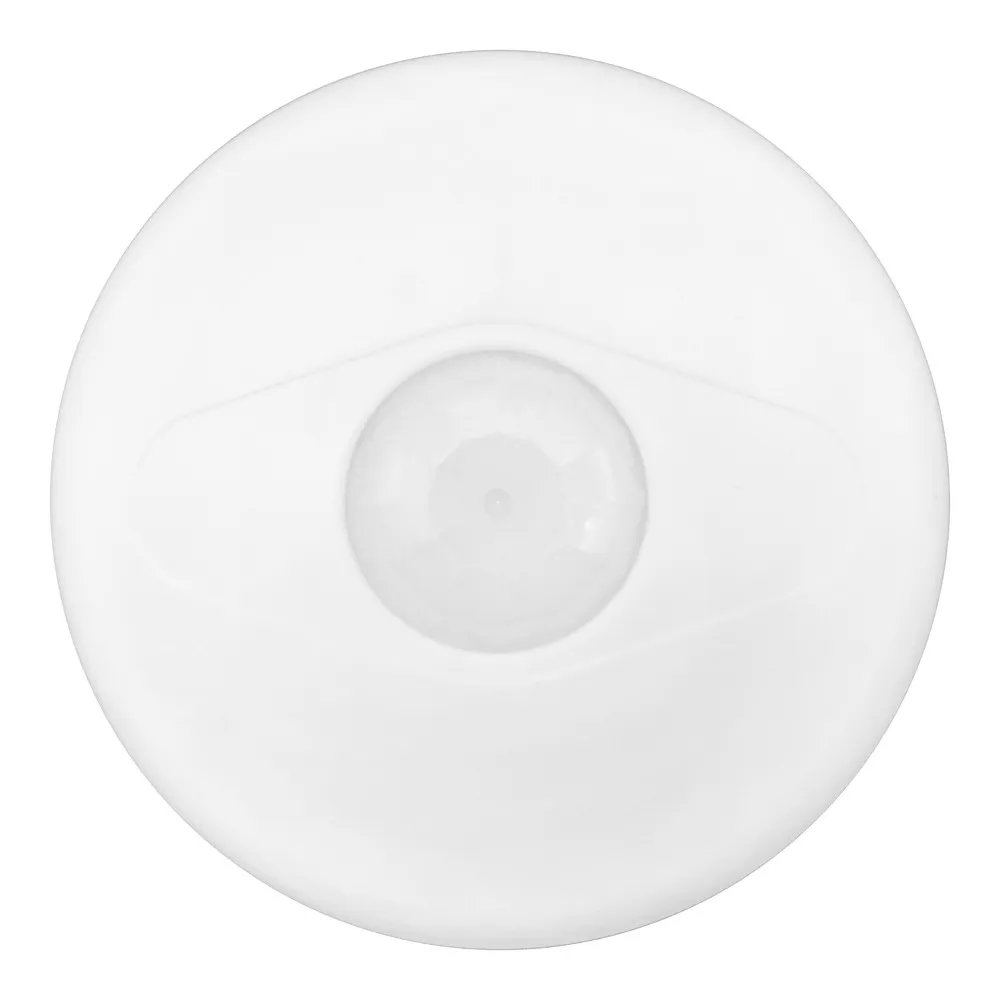

The TL-TUROSMART ceiling Bluetooth passive infrared sensor was drawn to disappear. Its low-profile housing mounts flat against the ceiling with an unobtrusive appearance, so it reads as part of the ceiling plane rather than as add-on hardware — important in offices, clinics and retail spaces where the ceiling is part of the design. The PIR sensor looks straight down and out for a full 360° coverage pattern, and an on-board LED motion indicator blinks as it detects, which makes aiming, testing and commissioning far quicker than guessing from the floor.

Bluetooth mesh control and dimming
This device is a Bluetooth to 0-10V dimming signal converter built on a Bluetooth® SIG mesh network. In a mesh, every node passes the signal along to its neighbours, so control distance grows with the number of devices instead of being limited to one radio hop. The dim control output is 0-10V with max. 25mA sinking current, and the built-in light level sensor works from 10 to 300 footcandles (107.6 to 3,229.2 lux) so fixtures ride down automatically when daylight comes through the windows. Occupancy detection, over-the-air updates, daylight harvesting, adjustable sensitivity, automated controls and smart scheduling are all handled through the TUROSMART app, which lets you add and rename lights, set wattage and dimming, adjust sensor settings, create and edit groups and scenes, and build schedules linked to a group with set repetition times.

Technical specifications
SKU: TL-TUROSMART/SENSOR/PIR/CEILING/120-347V/0-10V
Input power: 120/230 (single phase)/277/347VAC, 50/60 Hz
Dim control output: 0-10V, max. 25mA sinking current
Detection radius: Max. 20ft (6.1m)
Mounting height: 12ft (3.7m) Max.
Detection angle: 360°
Remote range: 50ft (15m) indoor, no backlight
Built-in light level sensor: 10 to 300 footcandles (107.6 to 3,229.2 lux)
Humidity: Max. 95% RH
Operating temperature: 0°C ~ 55°C
Mounting options: 4 square junction box with double gang mud ring; 4 inch octagonal junction box
Installation: field installed
Warranty: 5 years

Installation and compatibility
Installation is straightforward for any electrician: the sensor is field installed, wired per the diagram on the spec sheet, and fixed to a 4 square junction box with double gang mud ring or a 4 inch octagonal junction box. The 120-347V connector means one part number covers residential 120V and commercial 347V distribution. Keep the mounting height at 12ft (3.7m) Max. to stay within the Max. 20ft (6.1m) detection radius, and remember the on-board antenna's typical outdoor wireless range of 150ft (40m) is a guideline — actual range depends on field installation, walls and metal decking. Reset is available two ways: press the button on the sensor for 5 seconds, or use remote reset by pressing "RESET" then "ON/OFF" in sequence. On the TUROSMART compatibility chart, this version works with the RGD-CDR, EDA-SP, EDA-HS, EDA-ECL, SGS-R, RGD-CB3, RGD-CB3 LVS, RGD-BLP6, PRO-BLP3, ZNTH60-PD, ZNTH60-PDI, ZNTH60-RD, ZNTH60-SD, ZNTH60-WD, ZNTH60-WDI, DL-EC2~D, DL-EC2~D/A, PRO-EC2~D, DL-VT2, DL-VT3, DL-WA5T2, DL-WA2 and DL-WA3 families.

Applications and documentation
Think open-plan offices where perimeter rows dim against window light, school corridors that wake as students pass, a mechanic's bay or warehouse aisle where vapour tight fixtures only run when someone is there, a condo storage locker room, or a small business back office. Because everything is grouped, scened and scheduled in the app, changes later are a phone task, not a rewire. For projects that need straight occupancy on/off rather than 0-10V dimming, the companion Bluetooth mesh 120-347V occupancy sensor on/off switch lives on the same mesh network. The full spec sheet, with the wiring diagram, sensor coverage chart and the complete Turosmart fixture compatibility table, is in the Documentation tab.
