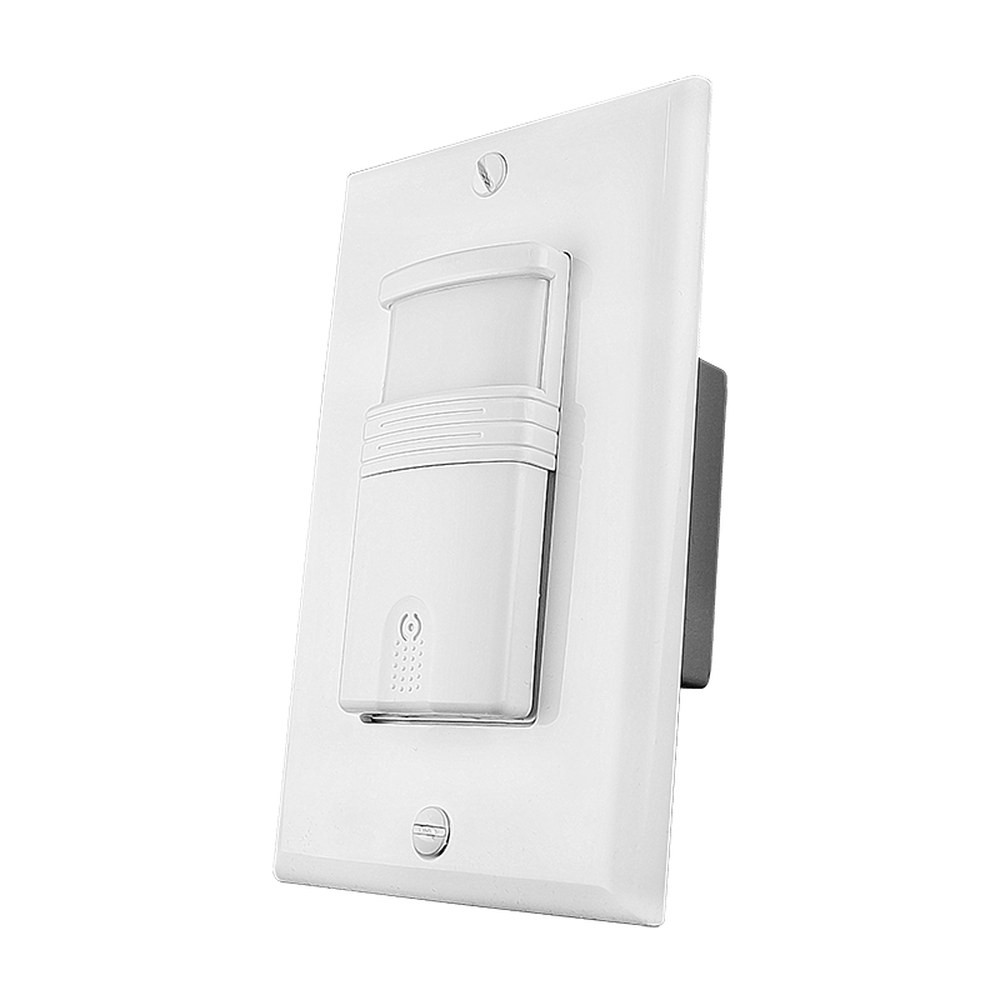

PIR WALL SWITCH VACANCY AND OCCUPANCY SENSOR 120V-277V WORKS WITH OR WITHOUT NEUTRAL WIRE

Name: PIR WALL SWITCH VACANCY AND OCCUPANCY SENSOR 120V-277V WORKS WITH OR WITHOUT NEUTRAL WIRE
Brand: TUROLIGHT
SKU: TL-6012-PLUS
Price: 61.97 CAD
Availability: InStock

SKU: TL-6012-PLUS

Brand: TUROLIGHT

Turn off the light switch habit for good. The PIR wall switch vacancy and occupancy sensor TL-6012-PLUS from TUROLIGHT replaces a standard light or fan switch and lets the room do the thinking. People search for it as a 120V motion sensor, a wall-mounted occupancy sensor, a motion sensor light switch or simply a "capteur de mouvement" switch — it is all of those in one compact device. Using passive infrared (PIR) technology, it detects motion from a heat-emitting source and turns the load On or Off automatically, so lights stop burning in empty storage rooms, washrooms, stairwells and shop corners.

This sensor runs on 120/277 VAC at 50-60 Hz and handles a load of 300W LED, which covers a lot of fixtures on a single-pole circuit. Its 180° coverage reaches 600 sq.ft., and three operation modes let you choose exactly how the room behaves: OFF, OCC (Auto ON / Auto OFF) or VAC (Auto OFF / Manual ON) with reset. Adjustable sensitivity and light harvesting mean it can hold the lights off when daylight is already doing the job, while the LED indicator and the ON/OFF button keep manual control at your fingertips. It requires a hot and a ground wire and works with or without a neutral wire, measures 4.06" H x 1.68" W x 1.90" D, weighs 5 oz, mounts at a height of 30" to 48", operates from 0° to 55° C, and is backed by a 2 year warranty.

Ideal for warehouses, manufacturing plants, gymnasiums and storage rooms, this occupancy and vacancy sensor is equally at home in a Canadian residential basement, a garage, a condo corridor or a small business back room — anywhere lights get left on for hours. It is a smart pairing with high bay and linear LED fixtures in shops and warehouses, where a single switch can control a whole bay. Note that TL-6012-PLUS must be properly grounded for the sensor to function; improper grounding will cause a malfunction. Order the TL-6012-PLUS and let your lighting switch itself off.

Built to replace a standard switch
The TL-6012-PLUS is a wall mounted sensor designed to drop into the same spot as an ordinary light or fan switch. It measures 4.06" H x 1.68" W x 1.90" D and weighs only 5 oz, so it fits the footprint electricians and renovators already know. The recommended mounting height is 30" to 48", which puts the lens at the right angle to read movement across the room instead of staring at the floor. An integrated LED indicator confirms detection and an ON/OFF button keeps manual override available, so nobody is ever stuck waiting for the sensor to make up its mind.

PIR detection and three operation modes
The sensor uses PIR (passive infrared) technology: it reacts to motion from a heat-emitting source and switches the load On or Off accordingly. Three modes cover every scenario — OFF, OCC and VAC. In OCC mode the lights come on automatically and go off automatically once the space is empty. In VAC mode they turn off automatically but must be turned on manually, which is often what energy codes and picky clients prefer. Coverage is 180° over 600 sq.ft., sensitivity is adjustable, and light harvesting lets the sensor take available daylight into account instead of lighting a room the sun has already handled.

Electrical and installation details
The TL-6012-PLUS is a single pole device rated 120/277 VAC, 50-60 Hz, with a load capacity of 300W LED. A hot wire and a ground are required; it works with or without a neutral wire, which is a real advantage in older Canadian homes and retrofit jobs where no neutral was ever pulled to the switch box. Proper grounding is not optional: the spec sheet states clearly that the sensor must be properly grounded for correct operation and that improper grounding will result in malfunction. Operating temperature runs from 0° to 55° C, and the case quantity is 50 pcs for contractors buying by the box.

Technical specifications
SKU: TL-6012-PLUS
Brand: TUROLIGHT
Technology: PIR
Coverage: 180° / 600 sq.ft.
Voltage: 120/277 VAC
Frequency: 50-60 Hz
Load: 300W LED
Hot required: Y
Ground required: Y
LED indicator: Y
ON/OFF button: Y
Adjustable sensitivity: Y
Light harvesting: Y
Operation mode: OCC & RESET/VAC
Switching: Single Pole
Operating temperature: 0° to 55° C
Size: 4.06" H x 1.68" W x 1.90" D
Weight: 5 oz
Mounting height: 30" to 48"
Case quantity: 50 pcs
Warranty: 2 years

Applications and documentation
The spec sheet lists warehouses, manufacturing plants, gymnasiums and storage rooms as target applications — spaces where lights routinely stay on long after the last person leaves. Picture a 600 sq.ft. parts room where the occupancy sensor kills the lights minutes after the shelf is restocked, a gym corridor lit only when someone walks through, or a home garage where hands full of groceries no longer means fumbling for a switch. With a 300W LED load on a single pole circuit, one device can control a group of high bay or linear LED fixtures at once. The complete TL-6012-PLUS spec sheet is available as a PDF in the Documentation tab, with detection patterns, dimensions and wiring notes for your electrician.
