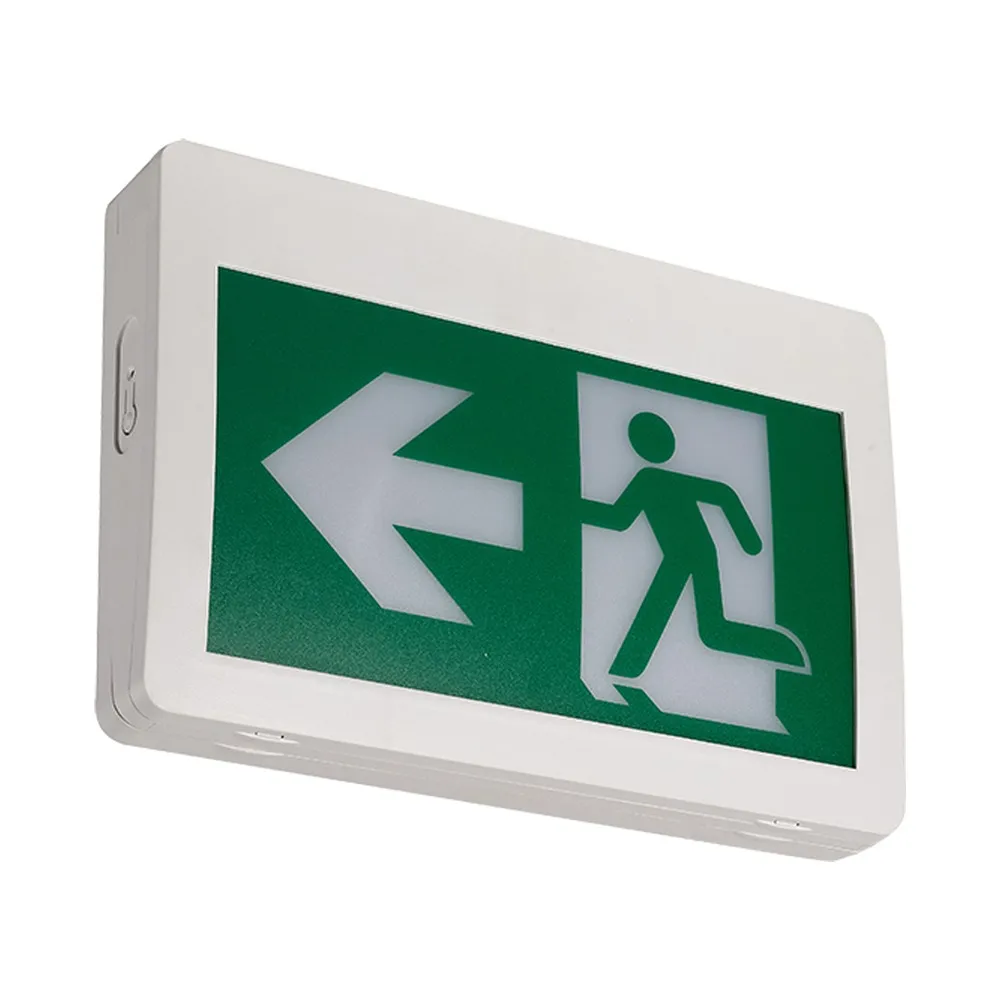

    LED EMERGENCY SIGN TL-RMES111-UDC “RUNNING MAN” (WHITE PLASTIC HOUSING) - AC / 6-24V UDC
    LED EMERGENCY SIGN TL-RMES111-UDC “RUNNING MAN” (WHITE PLASTIC HOUSING) - AC / 6-24V UDC

    LED EMERGENCY SIGN TL-RMES111-UDC “RUNNING MAN” (WHITE PLASTIC HOUSING) - AC / 6-24V UDC

    SKU: TL-RMES111-UDC

    Brand: TUROLIGHT

    Every code-compliant building needs one thing above all when the lights go out: a clear path to the door. The TUROLIGHT TL-RMES111-UDC is a “Running Man” LED emergency sign — the universal pictogram exit sign that replaced the old word-based signs across Canada. People search for it as a running man sign, an exit sign, an emergency sign or simply the "bonhomme qui court", and this version is the DC-powered model designed to run from a central emergency system instead of its own battery. With its white plastic housing, polycarbonate pictogram and super bright SMD LED illumination, it marks stairwells, corridors, exit doors and assembly areas day and night, in new construction as well as in renovations where an old sign no longer meets today's requirements.

    This model draws only 2W and accepts 120/347V input as well as AC / 6-24V UDC, so it can be wired to building power or fed from a low-voltage emergency supply — and it is remote capable, making it easy to tie into an existing central battery unit. The housing measures 13.19" × 8.86" × 2.01", a compact profile that stays discreet above a doorframe, and it ships with 3 pictograms included for single or double face configuration. Universal mounting — wall, ceiling or side — means one product covers every location on the floor plan. It is rated for damp location use and operates from -10˚C to +40˚C, a real advantage in Canadian vestibules, parking garages and unheated stairwells. It carries a 2-year limited warranty. Note that this UDC version has no self-powered battery; if you need an autonomous unit, choose the battery-backup model instead.

    Contractors install the TL-RMES111-UDC in office buildings, retail stores, restaurants, schools, warehouses, condo corridors and multi-unit residential projects — anywhere a central emergency lighting system already exists. Because it runs on remote DC power, it pairs naturally with a central battery unit and remote heads on the same circuit. If your project calls for a stand-alone sign with its own 2-hour Ni-Cd battery backup, look at the Running Man LED emergency sign TL-RMES111 with 2-hour battery backup. Add the running man exit sign your plans require and finish the job with confidence.

    70.97$

    Supplier availability: In stock (+100)

    Built for everyday building life
    The TL-RMES111-UDC is built around a white plastic housing with a PC (polycarbonate) pictogram sign — light, impact-tolerant and easy to keep clean in high-traffic corridors. The “Running Man” emergency sign format is the pictogram-based standard used across Canada, readable instantly and without language, which is exactly why it is specified in schools, hospitals, malls and multilingual workplaces. The unit includes 3 pictograms, so the same box can be configured for single or double face viewing and fitted with the directional arrow the floor plan calls for, rather than ordering a different SKU for every doorway.

    Light output and visibility
    Illumination comes from super bright SMD LED sources behind the translucent pictogram, giving an even green glow with no hot spots or dark corners on the panel. LED technology means very low draw — just 2W for this model — and no lamps to replace over the life of the sign, which matters when the fixture is mounted twelve feet up in a stairwell. The green running man pictogram stays legible through smoke and in total darkness, and the low consumption keeps the load on your emergency circuit minimal when several signs share the same supply.

    Electrical and installation details
    This is the DC version of the TL series sign: it accepts 120/347V input and operates on AC / 6-24V UDC, and it is remote capable, which is what lets it be fed from a central emergency power source rather than an on-board battery. There is no self-powered battery in this model. Universal mounting — wall, ceiling or side — combined with the brand's innovative, easy installation design keeps the labour short: pick the orientation on site instead of on the order sheet. It is listed for damp location installation and rated for an operating temperature range of -10˚C ~ +40˚C.

    Technical specifications
    SKU / Model: TL-RMES111-UDC
    Brand: TUROLIGHT
    Ordering code: 3461213
    Description: “Running Man” LED emergency sign, white plastic housing
    Wattage: 2W
    Input voltage: 120/347V
    Supply: AC / 6-24V UDC
    Remote capable: Yes
    Self powered battery: No
    Mounting: Wall, ceiling, side (universal)
    Location: Damp
    Dimensions (L×W×H): 13.19" × 8.86" × 2.01"
    Operating temperature: -10˚C ~ +40˚C
    Pictograms included: 3 (single / double face)
    Case quantity: 10
    Warranty: 2-year limited

    Applications, compatibility and documentation
    Typical projects: a retail store where every checkout aisle leads to a marked exit, an office floor with a central battery unit in the electrical room feeding signs and remote heads, a restaurant back-of-house corridor, a condo stairwell landing, a warehouse or a garage where the damp location rating and cold-weather range earn their keep. Where the building has no central emergency system, the self-powered sibling is the right call — see the TL-RMES111 running man sign with 2-hour Ni-Cd battery backup, identical in housing and dimensions but self powered. The complete TL-RMES111-UDC spec sheet, with the dimensional drawing and the full ordering table, is available in the Documentation tab — hand it straight to your electrician or attach it to your submittal package.
