LED PUCK #800

Name: LED PUCK #800
Brand: LEDCO
SKU: LCPK800-24V-0.5W-30K-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK800-24V-0.5W-30K-BK

Brand: LEDCO

Tiny light, big impact. The LED PUCK #800 is a mini recessed LED puck light — also called a mini puck, cabinet spotlight or micro downlight — that hides almost completely in the surface it lights. With a body measuring just 19 x 19 x 21 mm and a 16 mm (5/8") cutout, it slips into places a normal fixture could never go: shelf edges, display cases, toe-kicks, stair risers, closet frames, headboards, millwork and thin panels. If you have been searching for LED puck lights for kitchen under cabinet lighting, a bathroom cabinet light, or discreet display cabinet lighting, this is the low-profile solution that gives you light without giving away the fixture. SKU: LCPK800-24V-0.5W-30K-BK, in a black finish that reads as a clean dark dot on light wood, painted MDF or white melamine.

Under the hood: a 0.5 watt LED running on DC 24V, delivering 68 lumens in a tight 30º beam angle — a real accent beam that pools light on a countertop, a shelf or a bottle display instead of washing everywhere. Colour temperature is 3000K, the warm white most people want in kitchens, bathrooms and cabinetry, and the CRI >85 keeps wood tones, tile, food and skin looking true. It is dimmable, so you can take the same pucks from task light to evening glow. Rated IP65, it handles splashes and humidity — a real advantage near sinks, in bathrooms and in covered outdoor millwork. Pressure-fit clips hold it firmly even in thin-walled structures, the trim stays low profile, and installation is genuinely simple. Lifespan is rated at 25 000 hours and it carries a 3 year warranty.

This little puck earns its place in kitchen cabinets and pantries, bathroom vanities and medicine cabinets, retail display cases, jewellery and boutique shelving, bar backs, hotel headboards, stair nosings and custom millwork all over Canada. Because it runs on 24V DC, it works from a low-voltage driver/transformer, which keeps wiring compact and safe inside cabinetry. Want a different look or a cooler light? The same puck is offered as LED puck #800 24V 3000K stainless, LED puck #800 3000K white, LED puck #800 4000K black and LED puck #800 4000K white. Map out your points of light, add it to your project, and let the light do the talking.

Built to disappear

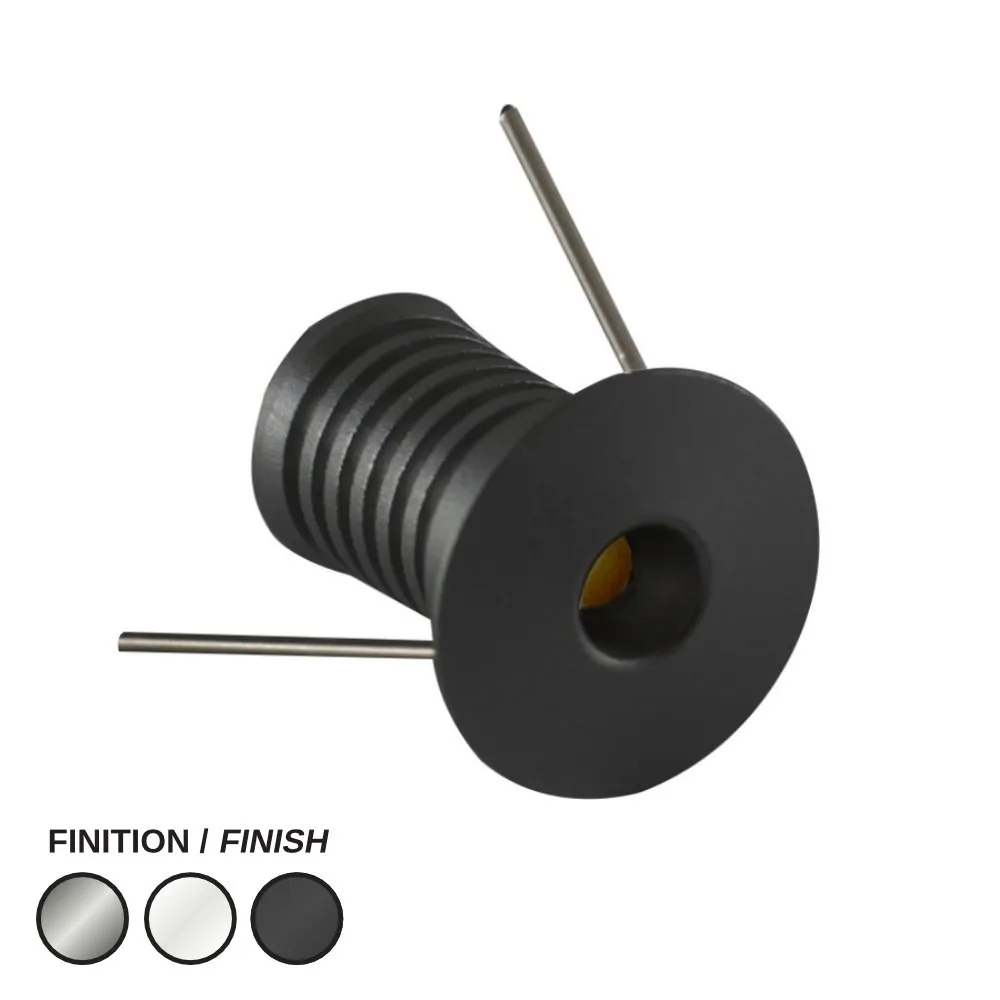

The whole idea behind this mini LED puck light is discretion. The housing measures 19 x 19 x 21 mm and drops into a 16 mm (5/8") hole, so all you see once installed is a small low-profile trim sitting nearly flush with the wood, panel or metal. The finish on this version is black, which visually reads as a shadow line rather than a fixture — perfect when a designer or cabinetmaker wants the light and not the hardware. Pressure-fit clips grip the material from behind, and they are specifically good for thin-walled structures such as cabinet gables, shelf fronts, display boxes and light valances where there is very little depth to work with.

Light quality you can trust on finishes
At 0.5 W this puck produces 68 lumens in a 30º beam, which is exactly what accent lighting should be: a controlled cone of light that highlights a surface, a product or a backsplash without spilling into your eyes. The 3000K warm white tone flatters oak, walnut, brass, warm quartz and painted cabinetry, while the CRI greater than 85 means colours stay honest — important for retail merchandise, cosmetics in a bathroom, food prep on a counter, or artwork in a display case. Dimming support lets you install several pucks in a row and then dial the whole run down for evening ambience.

Technical specifications
SKU: LCPK800-24V-0.5W-30K-BK
Input voltage: DC 24V
LED power: 0.5 Watt
Lumen output: 68 LM
Colour temperature: 3000K
CRI: >85
Beam angle: 30º
IP class: IP65
Dimensions: 19 x 19 x 21 mm
Cutout size: 16 mm – 5/8"
Dimmable: Yes
Lifespan: 25 000 hrs
Warranty: 3 years
Finish: Black

Wiring and installation
This is a 24V low-voltage puck light, so it is powered by a DC 24V driver or transformer rather than wired directly to line voltage — the standard, safe approach inside cabinetry and furniture. Because each puck only draws 0.5 W, a long run of accent points stays very light on the power supply, leaving room to grow the project later. Practical sequence: lay out your points of light on the panel, drill the 16 mm (5/8") holes, run the low-voltage leads through the millwork, press each puck into place until the clips bite, then connect back to the driver and, if you want control, a compatible dimming system. Keep the driver accessible — inside a cabinet, above a valance or in a service space — so servicing never means taking the millwork apart.

Where it performs, and what pairs with it
Think kitchen under cabinet lighting over a counter or island, glass shelves in a china cabinet, a bathroom vanity or medicine cabinet, walk-in closets and shoe shelving, wine racks, bar backs, reception desks, museum-style vitrines and retail display cabinet lighting in a boutique. The IP65 rating makes it a sensible pick near sinks, in humid bathrooms and in covered exterior millwork. Building a mixed layout? The same puck family covers other looks and tones: LED puck #800 3000K stainless, LED puck #800 3000K white, LED puck #800 4000K stainless and LED puck #800 4000K white — handy when one room wants warm light and another wants crisp 4000K.

Documentation
The full technical PDF (LCPK800-24V-0.5W-30K-BK spec sheet) is available in the Documentation tab, including the technical drawing with dimensions and the cutout size. Download it before you machine your panels so your holes, spacing and driver capacity are right the first time.
