LED PUCK #800 - LCPK800-24V-0.5W-40K-BK

Name: LED PUCK #800 - LCPK800-24V-0.5W-40K-BK
Brand: LEDCO
SKU: LCPK800-24V-0.5W-40K-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK800-24V-0.5W-40K-BK

Brand: LEDCO

Some of the best lighting ideas are the ones nobody sees — until you flip the switch. The LED puck #800 is a miniature recessed LED puck light that disappears into shelves, cabinets, stair risers and millwork, leaving only a crisp little beam of light behind. People call these mini puck lights, mini downlights, button lights or cabinet lights, and they answer exactly what shoppers are looking for when they search for kitchen under cabinet lighting, display cabinet lighting or a discreet bathroom cabinet light. With a body measuring just 19 x 19 x 21 mm and a 16 mm cutout, it slips into places a standard fixture could never go: the underside of upper cabinets, glass display cases, closet shelving, toe-kicks, headboards, bar backs and custom cabinetry.

This version runs on DC 24V low voltage and draws only 0.5 watt for 68 lumens, with a tight 30º beam angle that puts light exactly where you aim it instead of spilling everywhere. The 4000K colour temperature delivers a clean, neutral white that keeps countertops, glassware, jewellery and merchandise looking sharp, while a CRI greater than 85 keeps colours and wood tones true. It is dimmable, so you can dial it from task-bright to a soft evening glow, and rated IP65 — a real advantage anywhere steam, splashes or humidity are part of daily life. The black finish reads almost invisible against dark millwork and metal, pressure-fit clips make it friendly to thin-walled structures, and the low-profile trim sits nearly flush. Rated 25 000 hours with a 3-year warranty. SKU: LCPK800-24V-0.5W-40K-BK.

Designers and contractors across Canada reach for these little pucks in kitchen upper cabinets, pantry shelving, bathroom vanities and medicine cabinets, retail display cases, museum-style vitrines, reception desks, wine cellars and stair-nose accents. Because it is a 24V DC fixture, it needs a 24V LED driver and installs beautifully in multiples along a run. Prefer a warmer glow or a different trim? The same puck is offered in LED puck #800 3000K black, LED puck #800 4000K stainless and LED puck #800 4000K white, so you can match every cabinet in the project. Download the spec sheet, confirm your cutout, and add the finishing touch your millwork deserves.

Built to hide, made to last

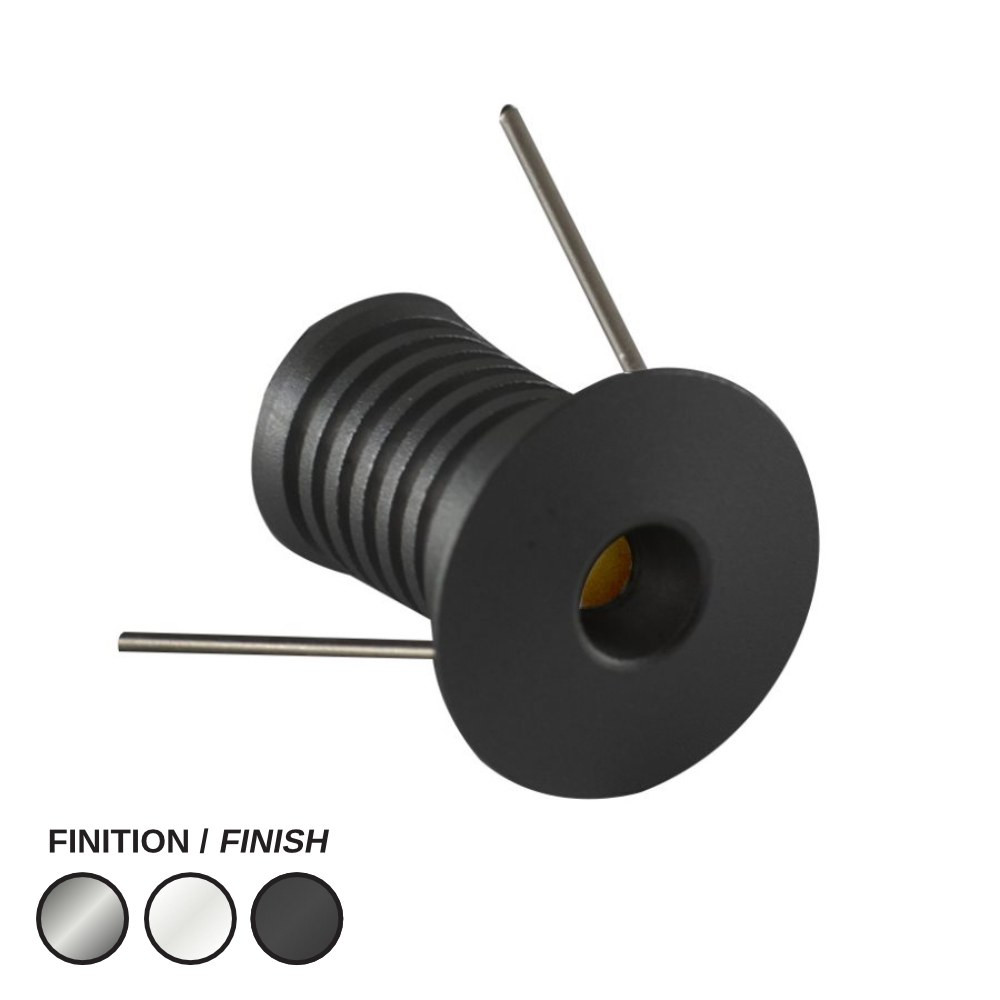

The PK800 is a true micro recessed fixture: a 19 x 19 x 21 mm body that drops into a 16 mm (5/8") cutout and leaves only a low-profile trim visible. The black finish is the stealth choice — against dark-stained wood, black melamine, metal shelving or a matte bar front, the puck practically vanishes and all you notice is the light. Pressure-fit clips hold it securely and are specifically designed for thin-walled structures, which is why cabinetmakers like them in shelf panels, cabinet bottoms and display boxes where there is very little depth to work with. Installation is intentionally simple: drill, feed the lead, push the clips home.

Light quality that flatters what it touches
Small does not mean weak. This 0.5 W LED puck light produces 68 lumens in a focused 30º beam, which is ideal for accenting rather than flooding — think a pool of light on a bottle, a handbag, a plate or a countertop zone. The 4000K neutral white tone is the go-to for kitchens, bathrooms and retail displays where you want crispness and contrast, and the CRI >85 rendering keeps whites clean and colours honest, an important detail when customers are judging merchandise or you are matching makeup at the vanity. Space pucks evenly along a run for a rhythmic look, or place them singly as pinpoint accents.

Electrical and installation details
This puck operates on DC 24V, so it must be powered by a 24V LED driver or low-voltage supply; total the wattage of all pucks on the circuit and choose a driver with comfortable headroom. It is dimmable, meaning a compatible dimming driver or control lets you set a bright task level for prep work and a low ambient level for evenings and after-hours retail. Because of its IP65 rating, it handles dust and water jets, making it a smart pick for bathroom cabinetry, shower niches in covered locations, bar and coffee stations, and outdoor kitchens under cover. Keep leads accessible for service and plan your driver location inside a cabinet or ceiling void before the millwork closes up.

Technical specifications
SKU: LCPK800-24V-0.5W-40K-BK
Input voltage: DC 24V
LED power: 0.5 W
Lumen output: 68 lm
Colour temperature: 4000K
CRI: >85
Beam angle: 30º
IP class: IP65
Dimensions: 19 x 19 x 21 mm
Cutout size: 16 mm / 5/8"
Dimmable: Yes
Finish: Black
Lifespan: 25 000 hrs
Warranty: 3 years

Applications, family options and documentation
Real projects: a row of pucks under kitchen uppers for under cabinet lighting, one per shelf in a lit display cabinet, a pair flanking a bathroom mirror cabinet, pinpoints in a wine rack, stair-nose accents in a basement renovation, or grazing lights in a jewellery or boutique vitrine. The same PK800 platform is available in other colour temperatures and finishes so a whole job can stay consistent: 3000K black, 3000K white, 4000K stainless and 4000K white. The technical PDF spec sheet, including the technical drawing with the cutout dimension, is available in the Documentation tab — worth printing before you pick up the drill.
