Ultra-small by design

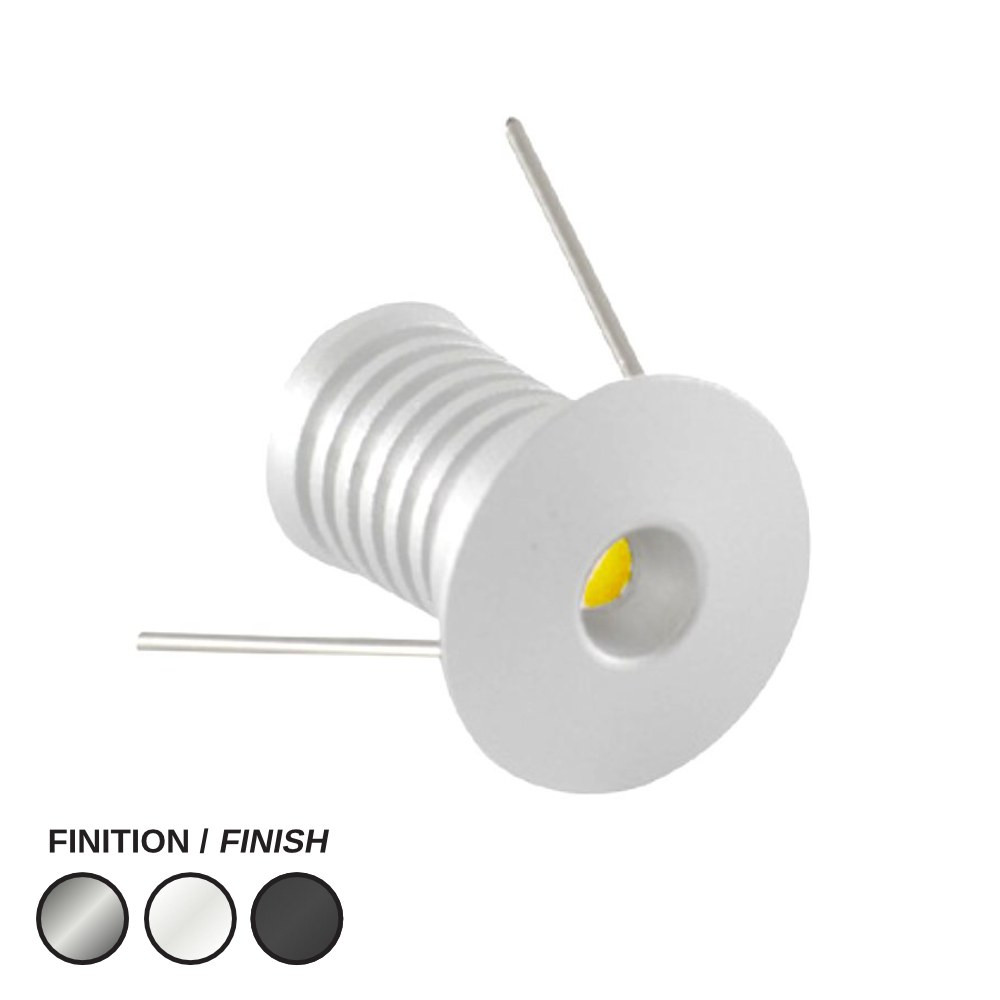

The PK800 is an ultra-small recessed puck: the spec sheet gives dimensions of 19 x 19 x 21 mm and a 16 mm cutout (5/8"). Its low-profile trim sits neatly against the surface, and the white finish blends into white cabinetry, painted ceilings, lacquered shelving and light-coloured display furniture. Because it is so compact, you can place several pucks close together to create a line or a pattern of light without cluttering the design.
Light quality
With 68 lumens from only 0.5 watt, the PK800 is made for accent lighting: showcasing, highlighting and guiding rather than lighting a whole room. The 4000K neutral white is clean and crisp, a great match for glassware, jewellery, stainless and white or grey interiors. Its CRI above 85 renders colours with richness and accuracy, and the 30° beam angle creates a defined pool of light that makes objects pop. It is dimmable, so you can fine-tune the effect from a subtle glow to a brighter highlight.
Installation and electrical details
The PK800 runs on DC 24V low voltage, so it must be powered by a suitable 24V DC LED driver and never connected directly to household line voltage. For dimming, choose a dimmable driver and a compatible dimmer. Installation is simple: drill a 16 mm hole, feed the wire through and press the puck into place; its pressure-fit clips are designed for thin-walled structures such as cabinet panels, shelves and display bases. The IP65 rating means it is dust-tight and protected against water jets, which suits bathrooms and humid areas as well as dry interiors. Plan your driver location and wire runs first, and have a qualified electrician make the line-voltage connections.
Technical specifications
SKU: LCPK800-24V-0.5W-40K-WH
Input voltage: DC 24V
LED power: 0.5 W
Lumen output: 68 lm
Colour temperature: 4000K
CRI: above 85
Beam angle: 30°
IP class: IP65
Dimensions: 19 x 19 x 21 mm
Cutout size: 16 mm (5/8")
Mounting: pressure-fit clips
Finish: white
Dimmable: yes
Lifespan: 25,000 hours
Warranty: 3 years
Applications
Jewellery stores, watch shops and gift boutiques use tiny pucks like these to make every piece sparkle in its display case. At home, try them inside a glass-front china cabinet, above a wine rack, in a bookcase, in a bathroom vanity niche or under upper kitchen cabinets for a minimalist under cabinet light. They also work in ceilings and soffits for discreet accent points. The spec sheet, with the technical drawing and all specifications, is available in the Documentation tab.
