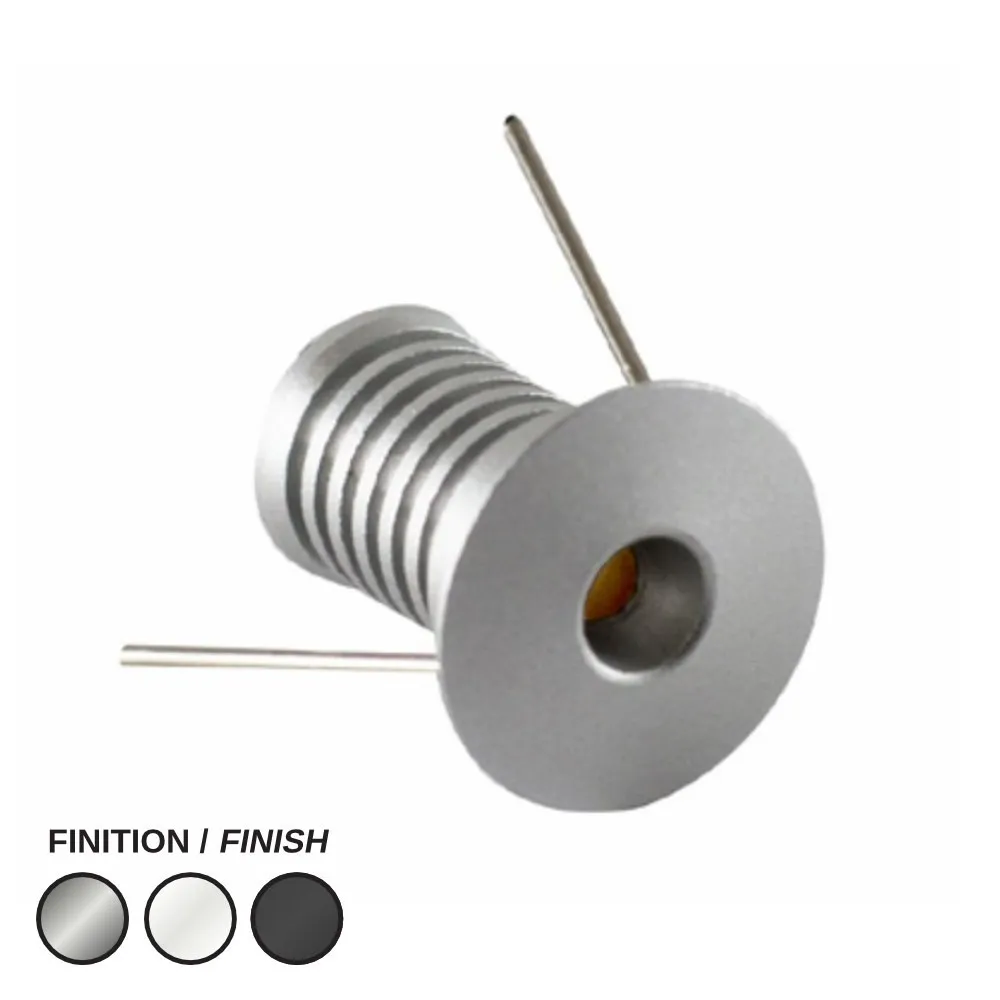

LED PUCK #800 - LCPK800-24V-0.5W-40K-BS

Name: LED PUCK #800 - LCPK800-24V-0.5W-40K-BS
Brand: LEDCO
SKU: LCPK800-24V-0.5W-40K-BS
Price: 30.97 CAD
Availability: InStock

SKU: LCPK800-24V-0.5W-40K-BS

Brand: LEDCO

Tiny light, big impact: the LED PUCK #800 is a mini recessed LED puck light barely bigger than a dime, made to hide inside cabinetry, shelving and millwork and let the light do all the talking. People search for it as a mini puck light, a display cabinet lighting point source, a bathroom cabinet light or simply kitchen under cabinet lighting — and it answers to all of those names. Slip it into a china cabinet, a jewellery or retail display case, a bar back, a stair nosing, a closet niche or the underside of an upper kitchen cabinet, and you get a crisp, jewel-like beam with no visible fixture and no hot bulb to change.

Model LCPK800-24V-0.5W-40K-BS runs on DC 24V and draws only 0.5 Watt while delivering 68 lumens in a tight 30º beam angle — that focused punch is exactly what makes glassware, bottles and merchandise sparkle. Its 4000K colour temperature gives a clean, neutral-white light that keeps whites white and details sharp, and a CRI >85 keeps colours, wood grain and skin tones looking true. The body measures just 19 x 19 x 21 mm and drops into a 16 mm (5/8") cutout, with pressure-fit clips designed for thin-walled structures and a low-profile trim in a stainless finish. It is dimmable, rated IP65, rated for 25 000 hours of life and backed by a 3 year warranty.

This little recessed puck is at home in Canadian kitchens and bathrooms, in condo millwork, in boutique and pharmacy display cases, in restaurant bars, hotel casegoods and office reception desks — anywhere a cabinetmaker wants light without seeing a fixture. Because it is a 24V low-voltage puck, plan it with a 24V DC driver and, if you want dimming, a compatible dimming system. Want a warmer, cozier glow instead? The same puck is offered in 3000K, and in black or white trims: see the LED puck #800 24V 3000K stainless, the LED puck #800 4000K black and the LED puck #800 4000K white. Pick your finish, drill a 5/8" hole, and light up every shelf in the room.

Built to disappear into the millwork
The whole idea behind this mini LED puck is that you see the light, not the light fixture. The housing is only 19 x 19 x 21 mm, with a low-profile trim in a stainless finish that sits nearly flush once installed. Pressure-fit clips hold it in place and are made specifically for thin-walled structures — cabinet bottoms, shelf panels, display case decks, toe kicks and closet frames where a bulky recessed housing would never fit. An IP65 rating means the lens face shrugs off dust and water jets, which is reassuring in a bathroom vanity, a bar area or a work zone where splashes happen.

Light quality that makes merchandise pop
At 0.5 Watt this puck produces 68 lumens concentrated in a 30º beam angle. That narrow beam is deliberate: instead of washing a surface flatly, it drops a bright accent pool exactly where you aim it, which is what you want over a bottle, a watch tray, a plate of food or a decorative object. The 4000K neutral white keeps the look clean and modern, ideal for contemporary kitchens, retail displays and bathrooms, while CRI >85 renders colours, finishes and materials faithfully instead of washing them out. Multiply the pucks along a shelf and you get a rhythm of sparkle rather than one big glare spot.

Technical specifications
Model: LCPK800-24V-0.5W-40K-BS
Input voltage: DC 24V
LED power: 0.5 Watt
Lumen output: 68 LM
Colour temperature: 4000K
CRI: >85
Beam angle: 30º
IP class: IP65
Dimensions: 19 x 19 x 21 mm
Cutout size: 16 mm - 5/8"
Dimmable: Yes
Lifespan: 25 000 hrs
Warranty: 3 years

Wiring and installation
This is a low-voltage 24V DC luminaire, so it must be fed by a 24V DC power supply sized for the total load of the run — at 0.5 W each, a long series of pucks still adds up to very little. Installation is genuinely simple: drill or bore a 16 mm (5/8") hole, run the leads through, push the puck in and let the spring clips grab the panel. Because the puck is dimmable, you can pair it with a dimming system compatible with your 24V driver to set a soft evening level under the upper cabinets and a full-output level when you're cooking or serving customers. Keep the driver accessible — inside a cabinet, above a bulkhead or in a service cavity — for easy maintenance down the road.

Applications, family and documentation
Think kitchen uppers and open shelving, vanity cabinets, pantry interiors, wine racks, bookcases, jewellery and pastry display cases, reception desks, bar backs, and accent niches in condo or basement renovations across Canada. If you prefer a warmer 3000K tone or a different trim colour, the same puck exists in several versions: LED puck #800 24V 3000K stainless, LED puck #800 3000K black, LED puck #800 3000K white and LED puck #800 4000K black — handy when you want one temperature in the kitchen and another in the display case. The full technical PDF spec sheet, including the technical drawing with cutout dimensions, is available in the Documentation tab so your cabinetmaker or electrician can plan the holes before the panels are even assembled.
