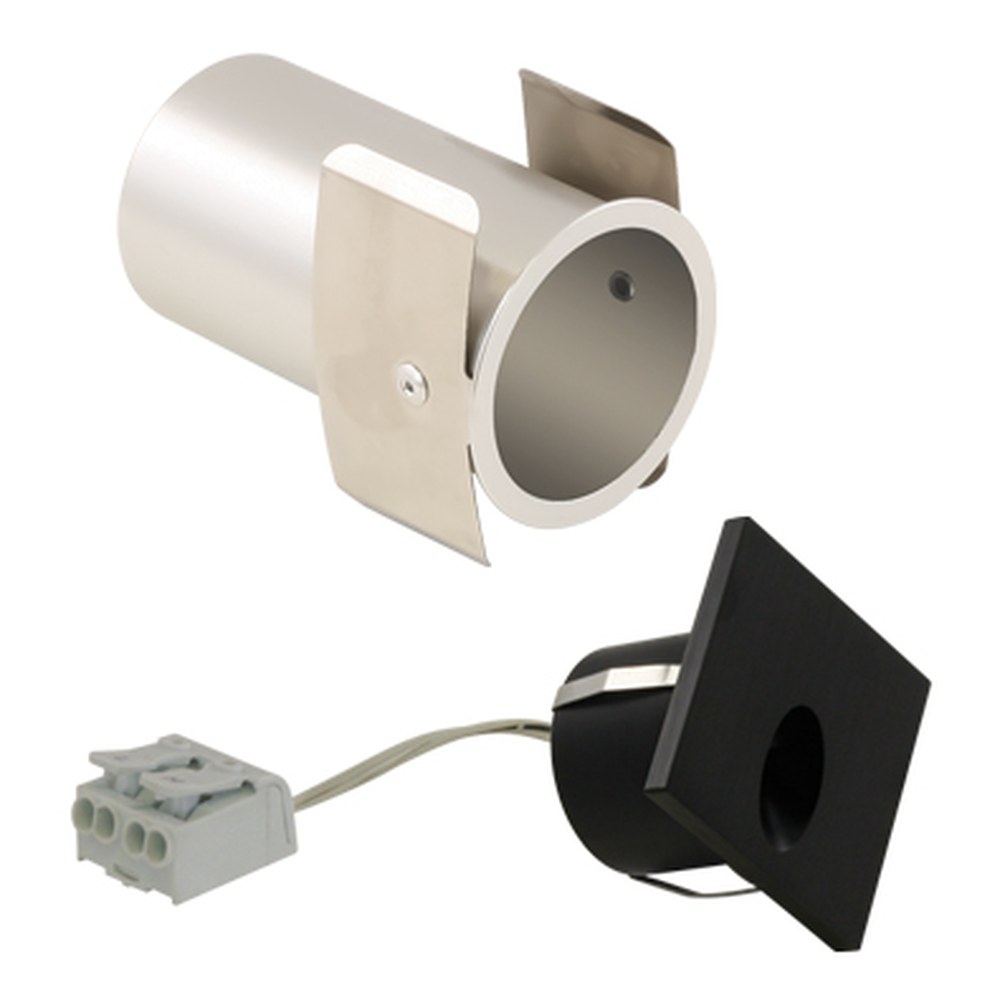

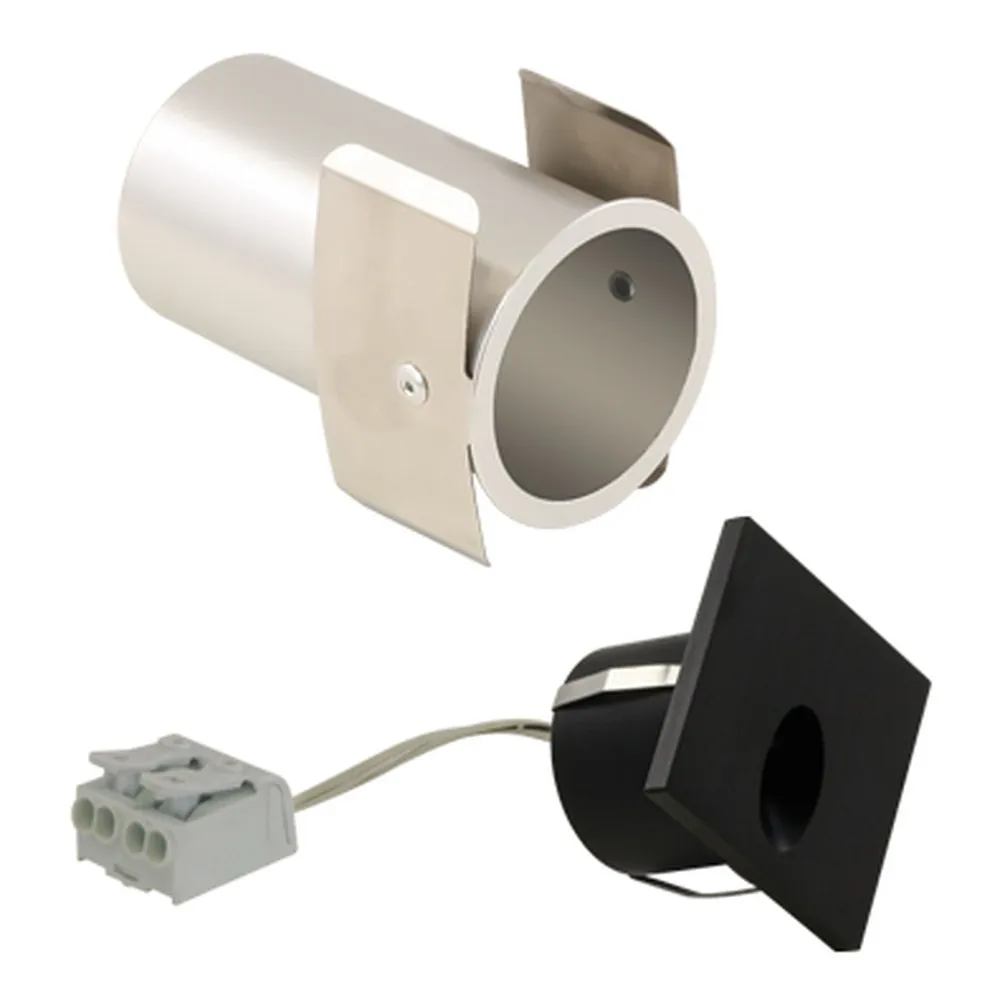

ASYMMETRIC - 1.4W - 30K - 90CRI - 24V 45° - HARDWIRE - SQUARE TRIM - ABK - WLTDS-1W30K-90-ABK

Name: ASYMMETRIC - 1.4W - 30K - 90CRI - 24V 45° - HARDWIRE - SQUARE TRIM - ABK - WLTDS-1W30K-90-ABK
Brand: LITELINE
SKU: WLTDS-1W30K-90-ABK
Price: 146.97 CAD
Availability: InStock

SKU: WLTDS-1W30K-90-ABK

Brand: LITELINE

Asymmetric recessed LED step light with a crisp square trim in an anodized black finish (SKU WLTDS-1W30K-90-ABK): the discreet way to light stairs, hallways and entrances indoors. Set low into the wall or beside each tread, this indoor step light sends a warm, controlled beam down and across the walking surface instead of into people's eyes. Homeowners use it as a stair light or a night-safe hallway marker; designers and contractors specify it for corridors, lobbies and entrances, and for accent lighting under cabinets, in displays and for soft wall washing.

Every detail serves the light. The 1.4W LED sits in a machined aluminum body that doubles as its heat sink, and the fixture rotates 360° to lock its 45° asymmetric beam exactly where you need it. Colour is a warm white 3000K with 90 CRI, so wood treads, carpet, paint and artwork keep their true tones. It runs on 24V constant voltage from a remote driver and dims from 100% down to 5% with a compatible electronic or magnetic dimming driver. The housing is IC rated for insulated walls, and the fixture is cETLus certified for dry and damp indoor locations.

Where does it shine? Basement and main-floor staircases, long condo and hotel corridors, mudrooms and entrances, home theatres, restaurants and retail displays: anywhere a low, glare-free marker light makes moving around safer at night. The black square trim suits modern dark hardware, black stair railings and deep wall colours in Canadian homes. Pair it with a dimmable 24V hardwire driver such as the 24V 60W dimmable hardwire box driver, plan your layout at the framing or renovation stage, and give every step a soft, welcoming glow.

Sold separately
To complete the installation, add:
Power supply: HWB-DIM-CDC-24V-30W, HWB-DIM-CDC-24V-60W, HWB-DIM-CDC-24V-96W

Built for precise, low-glare light
The WLTDS-1W30K-90-ABK is a recessed asymmetric wall light designed for indoor use in dry and damp locations. Its body is machined from aluminum, which acts as the heat sink for the 1.4W LED. The fixture can be rotated 360° and set in a fixed position, so each light on a staircase or along a corridor aims its asymmetric beam exactly toward the floor or tread. The square trim comes in anodized black, a clean, modern accent on white, grey or dark walls.

Light quality
A warm white 3000K colour temperature and a 90 CRI rating give a cozy residential glow with natural colour rendering: wood stairs, stone tile, carpet and paint look the way they should. The 45° beam spread, combined with the asymmetric optic, keeps light low and directional, ideal for stair lighting, hallway wayfinding and wall washing without glare at eye level. Dimming runs from 100% down to 5% with compatible electronic and magnetic dimming drivers, so you can set a gentle night-light level.

Wiring and installation
This hardwire fixture operates on 24V constant voltage and needs a remote power supply, sold separately; a dimmable option is the 24V 60W dimmable hardwire box driver. A toolless push-in connector lets you daisy chain several lights with 18-2 AWG LVT cable (not provided). The aluminum housing allows enclosed wiring and, being IC rated, can be installed where insulation is present; a strain relief secures the cables and two torsion clips hold it firmly in the wall. In an insulated wall, a vapour barrier and a pre-mounting plate (both sold separately) are required. Ask your electrician about voltage drop on long runs, and plan cable routes before the drywall goes up.

Technical specifications
SKU: WLTDS-1W30K-90-ABK
Type: recessed asymmetric step and wall light, square trim
Wattage: 1.4W
Colour temperature: 3000K
CRI: 90
Beam: 45°, asymmetric, 360° rotation
Voltage: 24V constant voltage (remote driver)
Dimming: 100% to 5% with a compatible driver
Finish: anodized black (ABK)
Housing: machined aluminum, IC rated
Cut-hole: 44 mm
Location: indoor, dry and damp
Certification: cETLus

Applications and documentation
Use it along residential staircases, in condo and hotel corridors, at entrances and landings, in home theatres, and for accent lighting under cabinets, in displays and on feature walls. The technical spec sheet (PDF) is in the Documentation tab for your electrician or designer.
