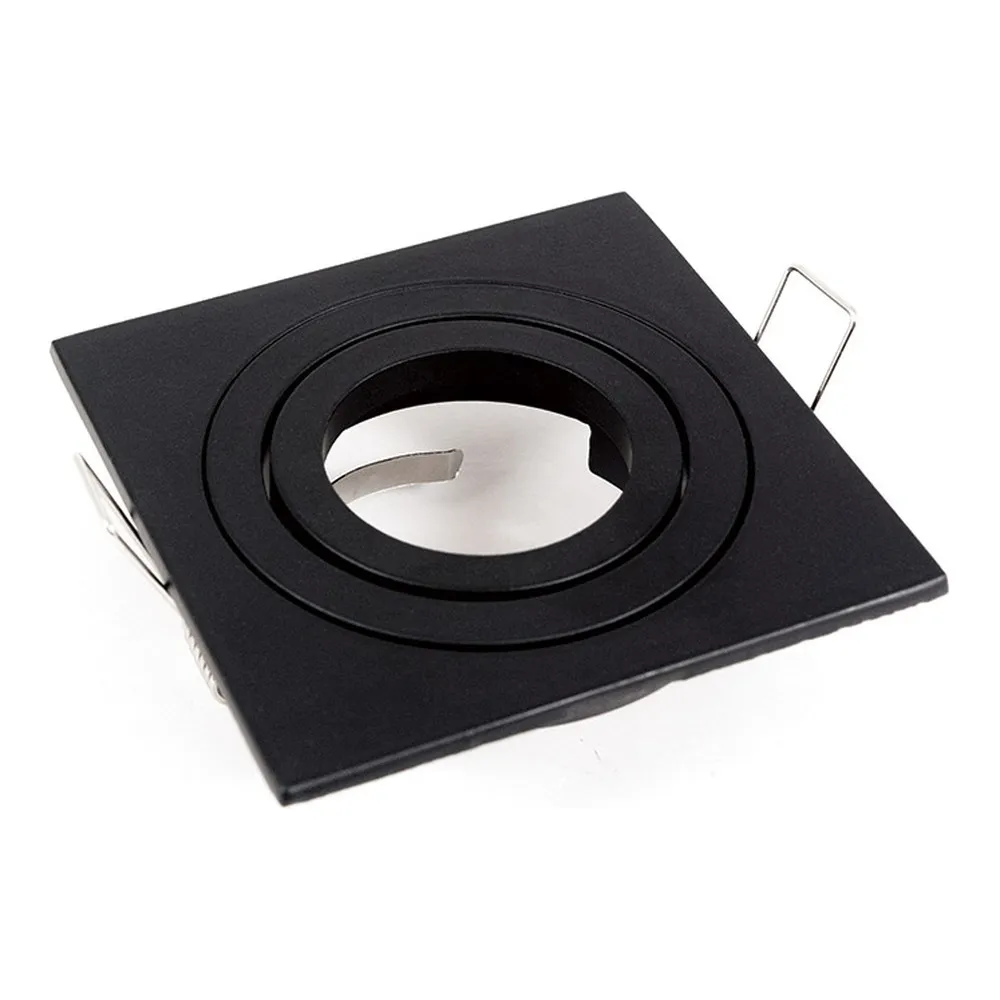

SQUARE SWIVEL TRIM, BLACK, FITS: MR16 / RD10 / RD7

Name: SQUARE SWIVEL TRIM, BLACK, FITS: MR16 / RD10 / RD7
Brand: LUMENSTARLED
SKU: LS-SQS-BK
Price: 20.97 CAD
Availability: InStock

SKU: LS-SQS-BK

Brand: LUMENSTARLED

Give your pot lights an upgrade that actually shows: the LS-SQS-BK square swivel trim in black turns an ordinary recessed opening into a crisp, architectural detail. Known on jobsites as a square downlight trim, a swivel trim, a gimbal ring or simply a black pot light ring, it is built for MR16 LED bulbs and fits MR16 / RD10 / RD7 LED modules. Because the trim pivots, you decide exactly where the light lands — on a painting, a shelf of bottles, a fireplace wall or a stone backsplash — instead of settling for a flat wash of light straight down. It is the trim people reach for when they want their square downlights to look intentional, whether the project is a kitchen renovation, a boutique fit-out, a display cabinet or a hallway of accent lights.

The numbers behind the good looks are just as convincing. This trim is designed to be paired with a 7W MR16 LED bulb running on 12V AC/DC, delivering 550 lumens with a tight, controlled 40° beam and a CRI greater than 90 — so wood grain, fabric, skin tones and product packaging look the way they should. A single CREE COB LED sits behind the aperture, and the MR16 bulb is available in 2700K, 3000K or 5000K, letting you set the mood from cozy warm white to clean bright white. The trim itself swivels a full 90°, is dimmable, and is made of painted die cast metal with a black finish that cuts glare and reflection around the aperture. It measures 3 1/2" (89mm) wide, installs into a Ø2 3/4" (70mm) cutout with pressure fit clips, includes an MR16 socket with a 15cm (6") wire lead, and is backed by a 3-year warranty.

From a Vancouver condo hallway to a Montréal café counter, this black recessed trim does quiet, precise work: kitchen islands, under-cabinet and cabinet lighting, retail display cases, shelving, hotel lobbies and art walls. As a trim component, it is made to work with MR16 / RD10 / RD7 LED modules, and the matching 7W MR16 LED bulbs are ordered separately — which also means you can change colour temperature later without touching the housing. The full technical PDF for the LS-SQS-BK is in the Documentation tab. Add it to your project list and aim your light exactly where it belongs.

Compatible with
Works with:
LED module: LS-RD10-2W-24V-3K, LS-RD10-2W-3K, LS-RD10-3W-DTW, LS-RD10-4W-27K, LS-RD10-4W-3K, LS-RD10-4W-4K, LS-RD10-4W-RGBW, LS-RD7-BK-3K

Construction and finish
The LS-SQS-BK is a square swivel trim made from painted die cast metal, a material choice that keeps the faceplate rigid, cool and true to shape over years of service. The black finish is more than a style statement: a dark aperture absorbs stray light instead of bouncing it back at the eye, which is exactly why designers specify black trims in rooms with dark ceilings, media walls and display fixtures. The square faceplate measures 3 1/2" (89mm) wide, giving a clean geometric outline that lines up beautifully with square tile, cabinetry and coffered details — a welcome change from the standard round ring.

Light quality and aiming
Paired with a 7W MR16 LED bulb, this trim delivers 550 lumens through a 40° beam — narrow enough to create a defined pool of light, wide enough to cover a piece of artwork or a shelf without hot edges. The single CREE COB LED and a CRI greater than 90 mean colours stay honest: reds look red, whites stay neutral, and merchandise photographs well. The 90° swivel is the real hero. Once the trim is in the ceiling you can re-aim the adjustable pot light at any time — after the furniture moves, after the art gets rehung, after a store changes its display. And because the MR16 bulb is ordered separately in 2700K, 3000K or 5000K, you can change the whole feel of a room later without opening the ceiling.

Technical specifications
SKU: LS-SQS-BK
Brand: LumenstarLED
Type: Swivel square recessed trim
Fits: MR16 / RD10 / RD7 LED modules
Voltage: 12V AC/DC
Wattage: 7W (MR16 LED bulb)
Lumens: 550
Colour temperature: 2700K / 3000K / 5000K
CRI: >90
Beam angle: 40°
# of LEDs: 1 CREE COB LED
Swivel: 90°
Dimmable: Yes
Housing: Brushed or painted die cast metal trim
Width: 3 1/2" (89mm)
Cutout: Ø2 3/4" (70mm)
Wire length: 15cm (6") MR16 socket
Warranty: 3-year

Installation and compatibility
Installation is a recessed install with pressure fit clips into a Ø2 3/4" (70mm) cutout — squeeze the clips, push the trim up, and the spring tension holds it flat to the ceiling or cabinet panel. Each fixture includes an MR16 socket with a 15cm (6") wire lead, so wiring to your 12V supply is short and tidy. Remember that this is a 12V low-voltage product: it needs an appropriate 12V AC/DC supply, and the MR16 LED bulb is ordered separately under its own code (2700K, 3000K or 5000K, 7W, 40°, >90 CRI). The trim accepts MR16 / RD10 / RD7 LED modules, which keeps the parts list short on a big job — one trim reference covers several module configurations, so contractors stock fewer SKUs across a multi-unit project.

Applications and documentation
The spec sheet lists cabinet, display and downlighting as the core applications, and that is exactly where this trim earns its keep: glass display cases in a jewellery shop, millwork and pantry interiors in a custom kitchen, shelving in a wine room, artwork in a condo hallway, reception walls in a clinic or salon. It is equally at home in a restaurant banquette, a boutique change room or a home theatre where a black aperture disappears into a dark ceiling. Because it is dimmable, you can tune the level for daytime retail and evening ambience on the same circuit. The complete technical PDF — dimensions, cutout, ordering codes and finish options — is available in the Documentation tab for your submittals and permit packages.
