What this wire actually does
A run of LED strip lighting almost never goes from the driver to the tape in a perfectly straight, uninterrupted line. There's a range hood in the way, a cabinet gap, a corner to turn, a stud bay to cross, or a power supply tucked inside a cabinet two metres from where the light begins. The Single Color Wire for LED Strips is the piece that covers that distance. It carries low-voltage DC power between two points with no light output in between, so you get light exactly where you designed it and nothing where you didn't.
Construction and gauge

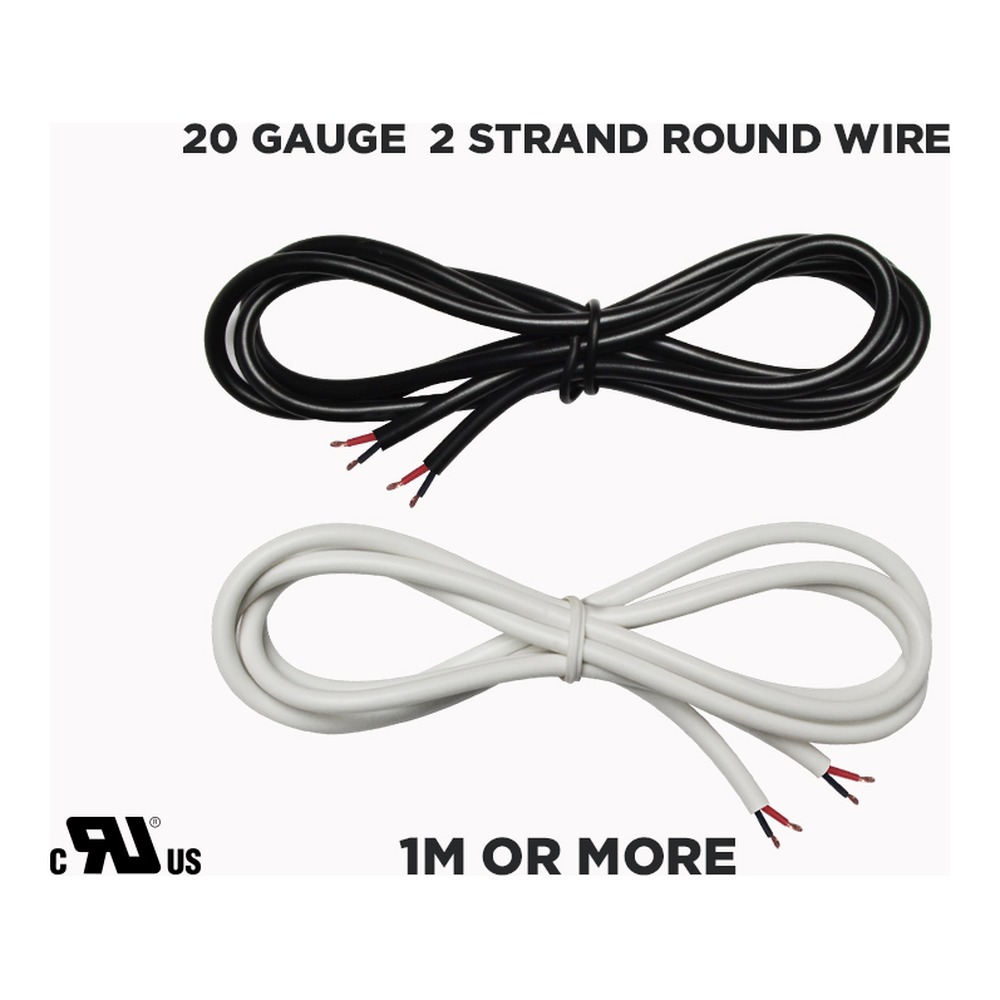

This is a two-conductor wire for single colour (monochrome) LED tape — one positive, one negative, no colour-changing channels. It is 20 AWG, a gauge commonly used for low-voltage strip runs, and it's finished with a 4 mm sleeve offered in black or white. That choice of sleeve colour matters more than people expect on a finished job: black hides against the dark underside of upper cabinets, inside coves and behind shelving, while white blends into painted millwork, white cabinet interiors and ceiling details. The wire ships in continuous length, so a five-unit order arrives as one uninterrupted 5 metre lead rather than five short pieces you'd otherwise have to join.
Technical specifications
SKU: SCWR1M
Brand: LED MONTREAL
Type: single colour (monochrome) connector wire for LED strips
Wire gauge: 20 AWG
Sleeve size: 4 mm
Sleeve colour: black or white
Sold as: 1 metre units, cut in continuous length (5 units = one 5 metre wire)
Use: residential and commercial projects
Installation tips
Plan the wire before you stick anything down. Measure the dead zones first — the hood, the sink window, the gap between two cabinet banks — then add a little slack at each end so you're not pulling on the solder pads of your led strip lights. Keep polarity consistent from one end of the run to the other; on single colour tape, reversing positive and negative simply means the section stays dark. Connections can be made with solderless clips or soldered directly to the strip's copper pads, depending on what your tape accepts. Run the wire through cabinet backs, behind crown moulding or inside a channel so nothing is visible from the room, and secure it with clips every so often so it never sags into view or gets pinched by a drawer slide.
Where it gets used
Kitchens are the classic case: two banks of under-cabinet LED strip lights separated by an exhaust hood, fed by a single driver. Beyond that, it's the quiet hero of cove ceilings and tray ceilings where the driver sits in a remote closet, of retail display cases and shelving where each glass shelf lights up individually, of bar fronts and reception desks, of closets, pantries, stairwells and basement rec rooms. Contractors working on Canadian renovations know the reality — the outlet, the transformer and the light are almost never in the same cabinet. Buying your wire by the metre, in continuous length, lets you match the run to the room instead of forcing the room to match the wire. Order SCWR1M in the number of metres your layout calls for and finish the job with one clean, uninterrupted lead.
