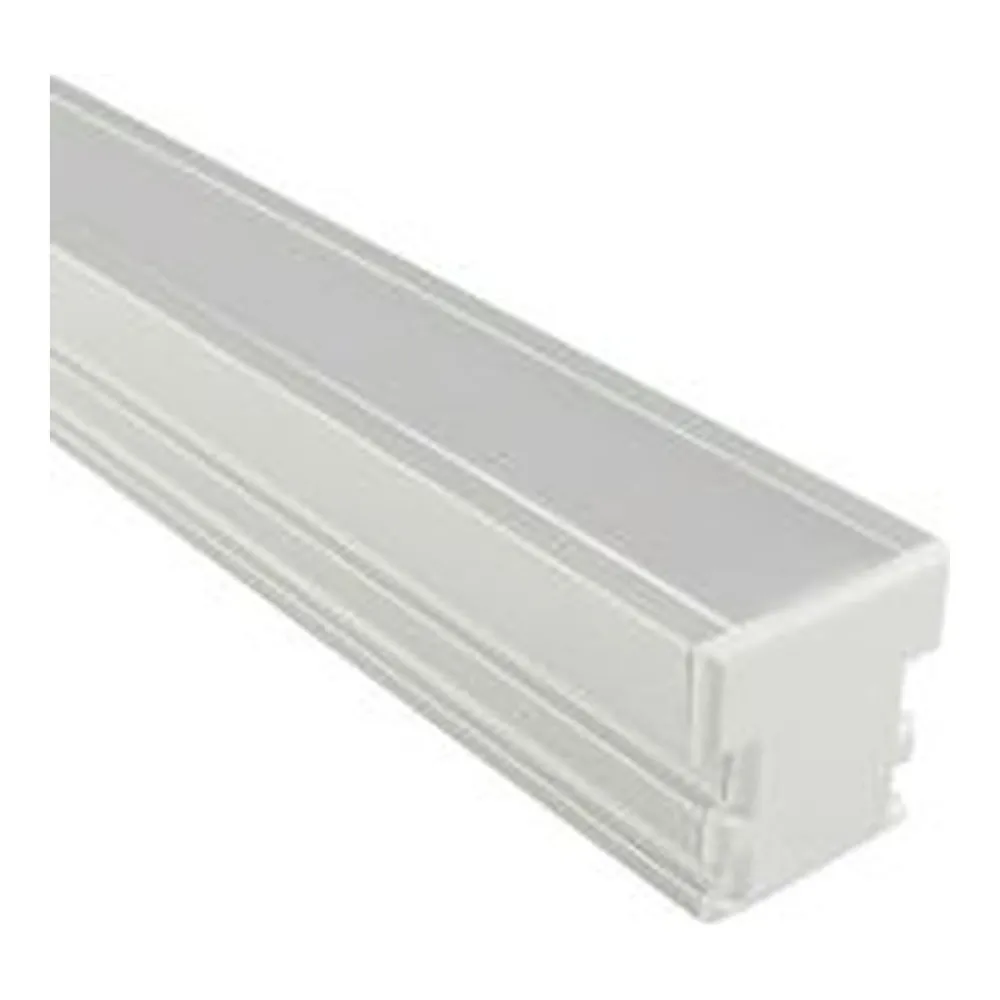

LL22 - HEAVY DUTY INGROUND ALUMINUM CHANNEL FOR LED FLEXIBLE STRIP, 2M (6.56') LENGTH

Name: LL22 - HEAVY DUTY INGROUND ALUMINUM CHANNEL FOR LED FLEXIBLE STRIP, 2M (6.56') LENGTH
Brand: LUMENSTARLED
SKU: LS-LL22-AL-L2
Price: 133.97 CAD
Availability: InStock

SKU: LS-LL22-AL-L2

Brand: LUMENSTARLED

Some lighting has to live where people walk, park and play — and that is exactly what the LL22 heavy duty inground aluminum channel was built for. Known on job sites as an inground LED strip channel, a drive-on aluminum extrusion or simply a recessed LED profile, this 2 m (6.56') extruded housing lets you sink a run of LED flexible strip right into the ground and still get a clean, continuous line of light. It is the piece contractors reach for on pathways, pool surrounds, driveway edges, garden borders, stair landings and architectural outdoor features where a surface-mounted profile simply would not survive.

The LL22 is made of anodized aluminum with reinforced walls that stand up to soil pressure, gravel infill and foot traffic, and its recessed installation design drops into a routed or formed opening of W27 x H26 mm (W11/16 x H11/32"), while the profile itself measures W26 x H26 mm (W1 1/32 x H1 1/32"). That solid body does double duty: it shields the strip from impact and acts as a passive heat sink, pulling heat away from the diodes so brightness and colour stay consistent season after season. The channel accepts indoor and outdoor flex strips, works with production lead or solder connections, and is finished with a thick frosted lens style that turns individual diodes into one smooth glow. Two metres per unit means fewer joints, fewer connection points and a straighter light line — and units link end to end for longer runs. Product code LS-LL22, SKU LS-LL22-AL-L2.

From a Montréal condo courtyard to a suburban driveway in Calgary, this is the channel that keeps landscape lighting looking intentional instead of improvised: walkway edges, terrace perimeters, patio steps, hotel entrances, restaurant patios and commercial plaza features. Complete the assembly with the LL22 frosted lens, 2 m and the LL22 end caps (one with hole, one without), or grab the ready-matched LL22 standard 2 m frosted kit. Pair it with your favourite flex strip and build an inground run that lasts.

Sold separately
To complete the installation, add:
Lens: LS-LL22-FR-L2
End cap: LS-LL22-EC

Built for the ground, not just the wall
Most LED aluminum channels are designed to sit on a ceiling or under a cabinet. The LL22 is a different animal: it is a heavy duty ground, drive-on profile in anodized aluminum, with thick walls and a squared body that resists the compressive loads of backfill, pavers and traffic. The anodized finish adds a hard, uniform surface to the extrusion, and the square W26 x H26 mm section gives the channel the rigidity long runs need so the light line stays perfectly straight once the trench is closed. Each unit is 2 m (80"), and the LL22 family is also offered in 1 M (40") lengths.

Light quality and thermal behaviour
The LL22 uses a thick frosted lens style, which is what separates a professional install from a strip dropped in a groove. Instead of a row of visible hot spots, you get a uniform band of light along the walkway or pool edge — much easier on the eyes at ground level, where fixtures sit directly in the field of view. Just as important, the aluminum body works as a passive heat sink. A LED flexible strip running warm loses lumens and shifts in colour over time; bonding it to this mass of aluminum pulls that heat away and helps the strip hold its output and its colour temperature through the years.

Technical specifications
Product code: LS-LL22
SKU: LS-LL22-AL-L2
Brand: LUMENSTARLED
Installation: Recessed
Router dimensions: W11/16 x H11/32" (W27 x H26 mm)
Dimensions (W x H): W26 x H26 mm (W1 1/32 x H1 1/32")
Lengths available: 1M (40"), 2M (80") — this SKU: 2M (6.56')
Material: Anodized aluminum
Lens style: Thick frosted
Compatible strips: Indoor & Outdoor Flex
Compatible connections: Production lead or solder

Installation and compatibility
Prepare a trench or a routed recess to the stated router dimensions, set the channel level with the finished surface, then insert the flex strip into the profile before or after placement — whichever your site allows. Because the channel is built around production lead or solder connections rather than push-in clips, plan your feed points and make the joints before the profile goes in the ground. The LL22 end caps ship as a pair, one drilled for the power lead and one solid, so each run is closed off cleanly at both ends. Add the LL22 frosted lens in 2 m to diffuse the output and cover the strip, or order the LL22 standard 2 m frosted version when you want channel and lens matched from the start. Multiple units butt end to end for runs of any length.

Where it earns its keep, and what comes with it
Think of the projects that chew up ordinary profiles: a garden path that gets shovelled every winter, the coping around a backyard pool, the edge of a gravel driveway, a raised planter wall on a commercial plaza, the threshold strip at a hotel or restaurant entrance. Landscape lighting specialists and electrical contractors across Canada use this kind of recessed aluminum extrusion to turn a bare LED tape into a permanent architectural detail. The technical PDF, HEAVY DUTY GROUND DRIVE ON LED ALUMINUM PROFILE, is available in the Documentation tab of this page with the full dimensional data — print it for your routing template and your submittal package before you break ground.
