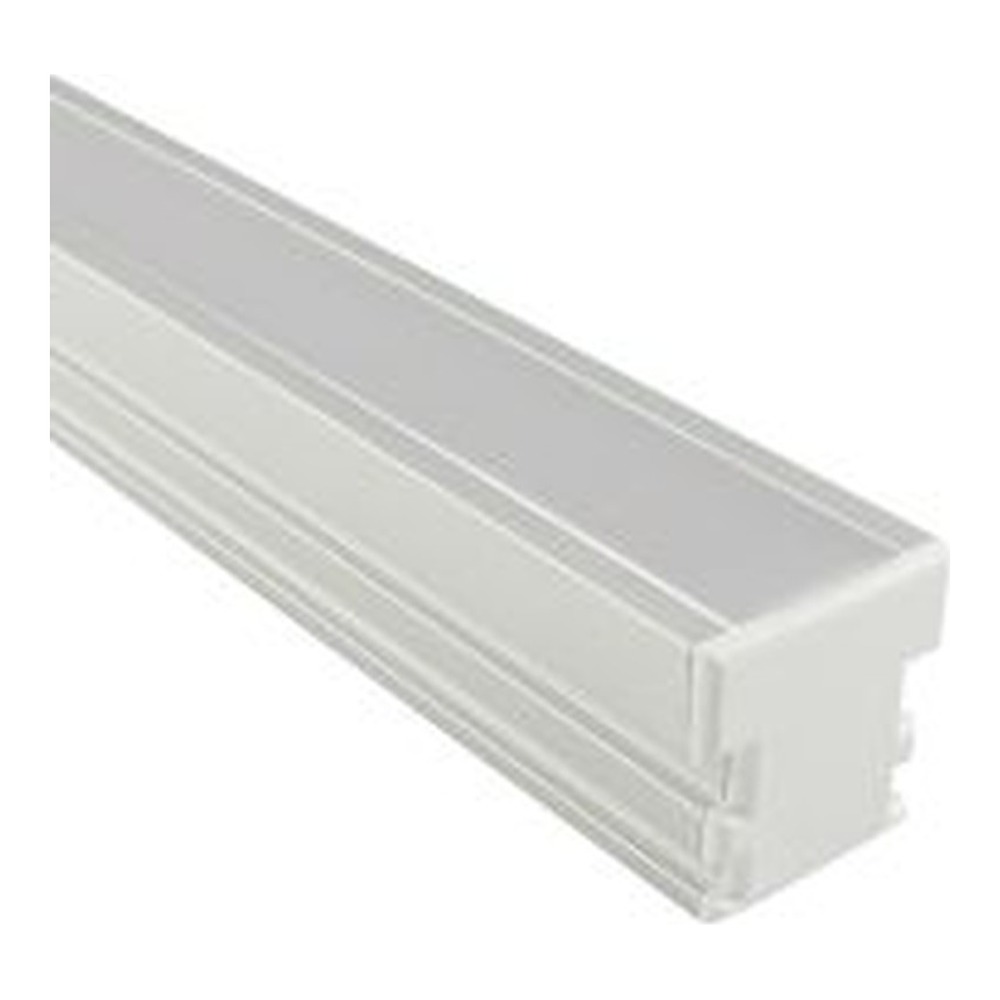

LL22 - FROSTED LENS FOR HEAVY DUTY INGROUND ALUMINUM CHANNEL, 2M (6.56') LENGTH

Name: LL22 - FROSTED LENS FOR HEAVY DUTY INGROUND ALUMINUM CHANNEL, 2M (6.56') LENGTH
Brand: LUMENSTARLED
SKU: LS-LL22-FR-L2
Price: 36.97 CAD
Availability: InStock

SKU: LS-LL22-FR-L2

Brand: LUMENSTARLED

Turn a row of bright LED dots into one clean, continuous line of light in the ground. The LL22 frosted lens is the thick frosted diffuser cover made for the LumenstarLED heavy duty inground aluminum channel — the replacement lens, diffuser cover or "milky lens" people look for when they build LED landscape lighting runs in walkways, driveways and patios. Sold in a 2M (6.56') length, it snaps over the channel and finishes the run from end to end, so the aluminum extrusion and the LED strip inside become a single glowing line instead of a string of hot spots. It is the piece contractors add when they want an LED inground uplight effect that looks architectural rather than improvised, and homeowners love it because it hides the strip completely, day and night.

Everything about this lens is built for the heavy duty ground drive-on profile: the LL22 channel measures W26 x H26mm (W1 1/32 x H1 1/32") and is routed into the surface at W11/16 x H11/32" (W27 x H26mm), so the lens follows that exact footprint for a tight, secure seat. The lens style is thick frosted, chosen to scatter light evenly and cut glare at foot level while keeping the run comfortable to look at from any angle. The channel body is anodized aluminum, and the system is designed for recessed installation with flexible LED strip. Available lengths in the LL22 family are 1M (40") and 2M (80") — this SKU, LS-LL22-FR-L2, is the 2M (6.56') frosted lens. Order one per channel section and your run is fully covered, whatever the length of the project.

This lens earns its keep outdoors across Canada: pedestrian pathways, driveway edges, pool surrounds, outdoor stairs, terraces, courtyards, hotel entrances, restaurant patios and commercial landscape projects where the fixture must disappear and only the light shows. Use it with the LL22 heavy duty inground aluminum channel 2M and close each run with the LL22 end caps — one with a hole for the lead, one without. Planning a full assembly instead of separate parts? Look at the LL22 standard 2M frosted kit. Add this frosted diffuser to your list and give your ground run the smooth finish it deserves.

Compatible with
Works with:
Channel / profile: LS-LL22-AL-L2, LS-LL22-L2

Built for the heavy duty ground profile
The LL22 lens is not a universal cover — it is the thick frosted diffuser designed for the LumenstarLED heavy duty ground drive-on LED aluminum profile, product code LS-LL22. That channel is extruded from anodized aluminum with a W26 x H26mm (W1 1/32 x H1 1/32") body, and it is routed into concrete, pavers, decking or stone at W11/16 x H11/32" (W27 x H26mm). Because the lens is dimensioned for that exact profile, it seats snugly in the channel instead of floating or lifting, which keeps debris and moisture from working their way into the run. On a ground-level application, that fit matters more than anything: a lens that shifts is a lens that lets grit in.

Light quality: a line, not dots
A clear cover shows every individual diode. The thick frosted lens does the opposite — it diffuses the emission of the LED strip so the run reads as one even band of light. That is exactly what you want at ankle height, where people look straight at the fixture: the frosted optic softens the intensity and reduces glare, while keeping a bright, attractive glow along the whole 2M (6.56') section. On long runs made of several channels laid end to end, the uniform frosted finish also hides small variations between strip segments, so the finished line looks deliberate and premium rather than patched together.

Technical specifications
SKU: LS-LL22-FR-L2
Product code (family): LS-LL22
Brand: LumenstarLED
Component: frosted lens for heavy duty inground aluminum channel
Lens style: thick frosted
Length: 2M (6.56' / 80")
Available lengths in the series: 1M (40"), 2M (80")
Channel dimensions (LxWxH): W26 x H26mm (W1 1/32 x H1 1/32")
Router dimensions: W11/16 x H11/32" (W27 x H26mm)
Installation: recessed
Channel material: anodized aluminum
Compatible strips: except Indoor & Outdoor Flex
Compatible solderless connects: production lead or solder

Installation and compatibility
Plan the routed pocket first at W11/16 x H11/32" (W27 x H26mm), drop in the channel, run the LED flexible strip with a production lead or solder connection, then press the frosted lens into place and finish the ends. The channel accepts flexible strip except Indoor & Outdoor Flex, so confirm your tape before ordering. Cut the lens to match your channel section if your layout calls for a partial length, and always leave the lead exit at the end cap drilled for it. This lens works directly with the LL22 heavy duty inground aluminum channel, 2M and the LL22 end caps, one with hole and one without. If you would rather order the profile and lens together, the LL22 standard 2M frosted assembly covers it in one line.

Where it gets used, and documentation
Contractors specify this recessed aluminum profile and its frosted lens for driveway borders, garden pathways, pool decks, exterior stairs, retaining walls, plaza paving, hotel and restaurant entrances, condo courtyards and retail storefront thresholds — anywhere the light must be seen and the fixture must not. It is equally at home in a residential backyard renovation and in a municipal or commercial landscape package. The technical PDF for the heavy duty ground drive-on LED aluminum profile is available in the Documentation tab of this page: check the router dimensions and the strip compatibility notes before you cut, and your install will go in clean the first time.
