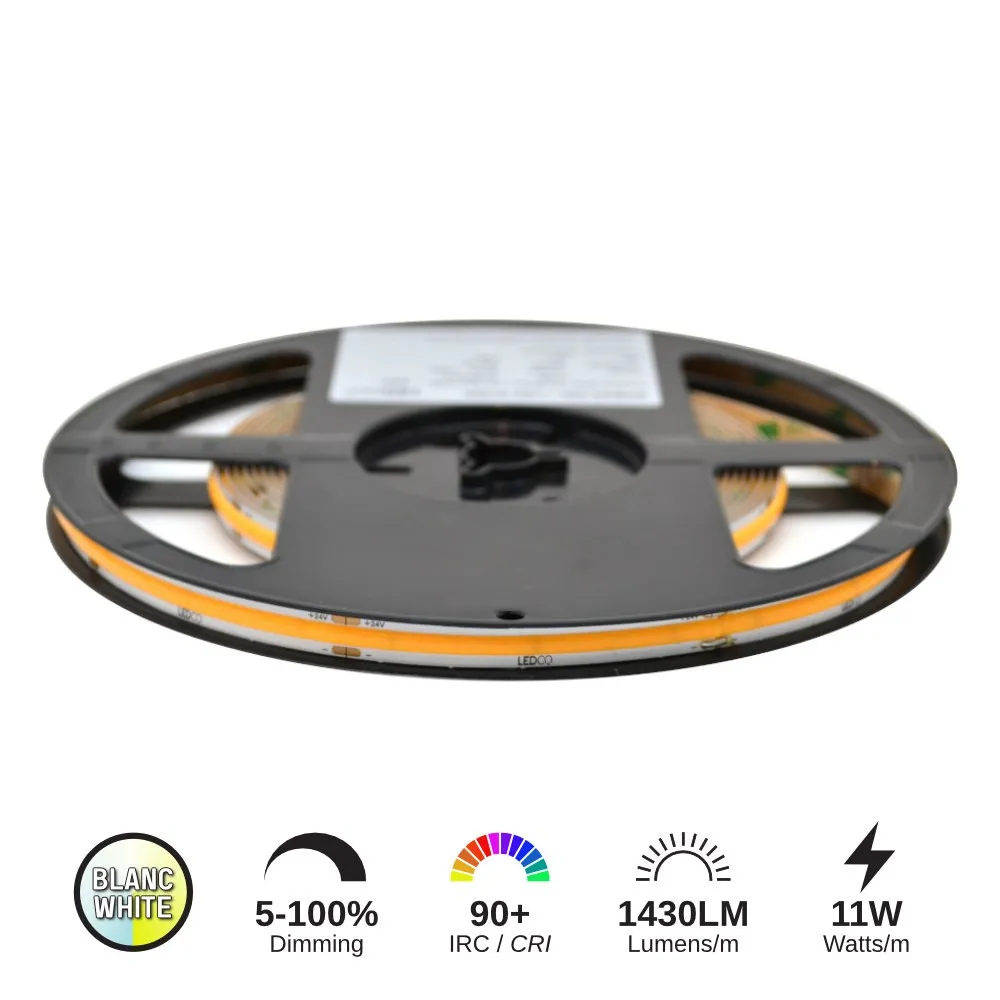

LED STRIP 11W/M (COB)

Name: LED STRIP 11W/M (COB)
Brand: LEDCO
SKU: LCLS24VCOB-11W-27K
Price: 101.97 CAD
Availability: InStock

SKU: LCLS24VCOB-11W-27K

Brand: LEDCO

Say goodbye to that dotted, pixelated look: this COB LED strip gives you one perfectly smooth, continuous line of light. Known on the job site and in searches as LED strip lights, LED light strips, LED strip lighting or simply LED lighting strips, this flexible tape is built with chip-on-board technology, meaning the diodes are covered by a single phosphor layer instead of sitting as visible little dots. The result is the seamless glow people are after under kitchen cabinets, inside coves and crown mouldings, along staircases, behind headboards, in closets, display cases and retail shelving. It is the kind of indoor LED lighting that disappears into the architecture and leaves only the light — exactly what you want for a clean renovation or a polished commercial fit-out. SKU LCLS24VCOB-11W-27K.

Under the silicone you get 512 LEDs per metre and 11W/m ±10% on a 24V DC low-voltage circuit, a combination that stays efficient over long runs and keeps voltage drop under control. The CRI 90+ rendering makes wood grain, paint, skin tones and merchandise look true, the 120º beam angle spreads light evenly with no hot spots, and the strip is dimmable so you can dial the mood from task-bright to late-evening soft. The PCB measures only 8mm wide and 1.5mm thick, so it slips into slim aluminum channels and tight reveals; cut size is 62.5mm, maximum run is 5m, and mounting is handled by the pre-applied 3M double-sided tape. Rated IP22, it operates from -20ºC to +60ºC and is built for 50 000+ hours of service.

This tape light is at home in condo kitchens and basements, custom millwork, bathroom vanities (away from direct water), hotel corridors, boutiques, bakery counters and office reception desks — anywhere a Canadian renovation calls for warm, flattering, hidden light. Pair it with a 24V DC driver and a compatible dimmer, and add an aluminum profile with diffuser for a truly finished look. Need the same strip in another colour temperature or a longer reel? See the LED strip 11W/m (COB) 24V 30K, the LED strip 11W/m (COB) 40K or the 30 m reels LED strip 11W/m (COB) 27K 30M and LED strip 11W/m (COB) 30K 30M. Order your roll and light up your project the smooth way.

COB construction: light without the dots
Traditional SMD tape places individual diodes along the board, which shows up as scallops and dots on a wall or inside a channel. This COB LED strip packs 512 LEDs per metre under a continuous phosphor coating, so the emitting surface behaves like a single line of light. On a PCB only 8mm wide and 1.5mm thick, the tape bends along curves, coves and rounded millwork without breaking the light line, which is exactly why designers specify COB for cove lighting, under-cabinet runs and display work where the fixture must stay invisible.

Light quality you can trust
With CRI 90+, colours stay honest: white oak looks like white oak, paint samples match, food and merchandise look appetizing instead of washed out. The 120º lighting angle throws a wide, even wash that fills a cove or lights a countertop from edge to edge, and because the strip is dimmable, the same installation can serve as bright task lighting at breakfast and soft ambient lighting at night. Remember that dimming is done through a compatible low-voltage dimmer or a dimmable 24V driver, not a standard line-voltage wall dimmer wired directly to the tape.

Technical specifications
Product code: LCLS24VCOB-11W
SKU: LCLS24VCOB-11W-27K
Power: 11W/M ±10%
LED density: 512 pcs/m
Voltage: 24V DC
CRI: 90+
Lighting angle: 120º
Protection code rating: IP22
PCB width: 8mm
PCB thickness: 1.5mm
Cut size: 62.5mm
Max length: 5m
Operating temperature: -20ºC to +60ºC
Lifespan: 50 000+ hours
Dimmable: Yes
Mounting: 3M double sided tape

Electrical and installation notes
Plan your runs first: the maximum continuous length is 5m, so longer installations should be split into separate runs fed from the driver rather than chained end to end. Multiply 11W by your total metres, then choose a 24V DC driver with headroom to spare. Cut only on the marked 62.5mm cut lines, clean and dry the surface before pressing the 3M double-sided tape into place, and mount the tape in an aluminum profile whenever it sits against wood or drywall — the channel spreads heat, protects the strip and, with a frosted diffuser, perfects the seamless effect. The IP22 rating means indoor, dry-location use: keep it out of showers, pools and exterior runs, and note that waterproof IP66 versions of our LED strips exist for those jobs. Operating range is -20ºC to +60ºC.

Applications, family and documentation
Think under-cabinet lighting in a kitchen renovation, toe-kick and stair-nosing accents, floating shelves, wardrobe and pantry interiors, a backlit bathroom mirror frame, reception desks, bar fronts, jewelry and bakery display cases, or a cove that washes a condo ceiling in warm light. Need a different white or a bigger reel for a large commercial job? The same strip is offered as LED strip 11W/m (COB) 24V 30K, LED strip 11W/m (COB) 40K, and in 30 m format as LED strip 11W/m (COB) 27K 30M or LED strip 11W/m (COB) 40K 30M. The full technical PDF (LCLS24VCOB-11W-27K spec sheet) is available in the Documentation tab for your submittals and contractor packages.
