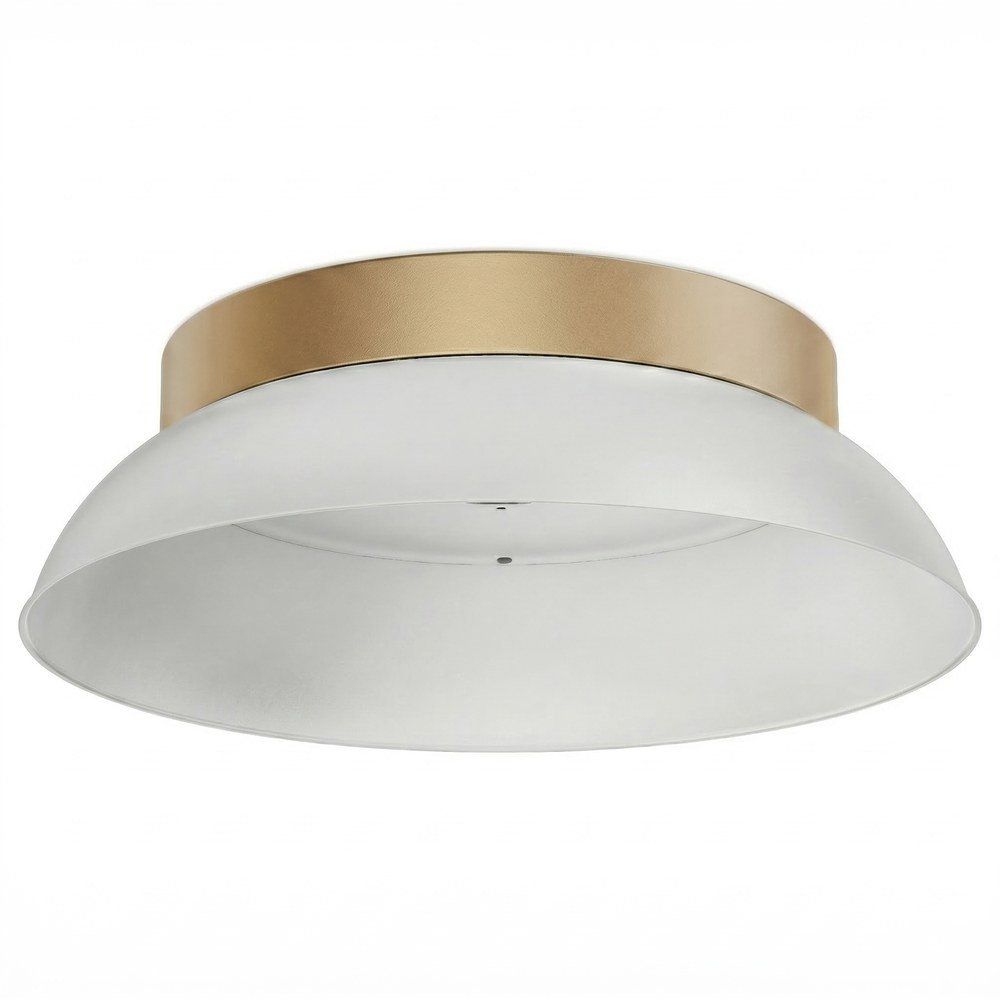

What this trim isThe HS/VERS/9/WH/GD/CNP is a
decorative canopy trim from the TUROLIGHT LED Surface Discus line (family RGD-HS/VERS). It is an accessory, not a light source: it slips over and around the 9" surface disc luminaire to create a deeper, canopy-style ceiling detail instead of the standard slim edge. Where the basic trim keeps things flat and discreet, the canopy version builds volume on the ceiling — a look many designers ask for in entryways, hallways and feature areas. The matte white shell keeps it soft and neutral, while the gold inner accent catches the light and adds warmth without shouting.
Technical specificationsModel number: HS/VERS/9/WH/GD/CNP
Ordering code: 3660463
Family: RGD-HS/VERS (LED Surface Discus)
Size: 9"
Finish: matte white with gold accent
M.O.D. (maximum outside diameter): 12.6"
M.O.H. (maximum outside height): 3.78"
Type: decorative canopy trim (accessory)
The fixture it dressesThis trim is sized for the 9" LED Surface Discus, model RGD-HS/VERS/9/18W/MK5/WH/D (ordering code 3662202). That
surface mount disc light runs at 18 W on 120 V, delivers 1480 initial lumens with a CRI of ≥80 and a 120° beam angle, offers 5 selectable colour temperatures (MK5), is TRIAC dimmable down to 5%, is damp location rated and cETL listed, with an L70 rating at 50,000 hours, a PC housing in white finish, an operating temperature range of -10 ˚C ~ +45 ˚C and a 5-year limited warranty. The fixture fits all types of J-box. Choosing the canopy trim changes the look, not the light: lumens, colour and dimming stay exactly as the luminaire is specified.
Installation and handlingBecause it carries no wiring and no driver, installation is quick and clean — the trim mounts with the 9" disc luminaire at the ceiling, so plan your
J-box position first, confirm the ceiling surface is flat around the opening, then finish with the trim. It is worth mounting the fixture, checking the dimming with your TRIAC dimmer and setting the colour temperature selector before the decorative canopy goes on, since that avoids removing it later. Keep the matte white surface clean with a soft dry cloth; skip abrasive cleaners so the gold accent keeps its sheen. For damp areas, respect the damp location rating of the luminaire itself.
Where it works and what to pair it withThink condo and townhouse hallways, primary bedrooms, walk-in closets, powder rooms, stairwell landings, salons, boutiques, dental clinics, hotel corridors and small office reception areas — Canadian projects where ceilings are often low and a deep
canopy trim gives the illusion of a designer fixture without a pendant hanging in the way. For larger rooms, step up to the
HS/VERS 12" matte white/gold canopy trim. Prefer a flush look? Go with the
HS/VERS 12" matte white/matte white recessed trim, or bring in contrast with the
HS/VERS 12" matt black trim and the
HS/VERS 12" brush nickel trim. The full technical PDF for this trim is in the Documentation tab, with the dimensional drawing and the complete ordering guide for the LED Surface Discus family.
