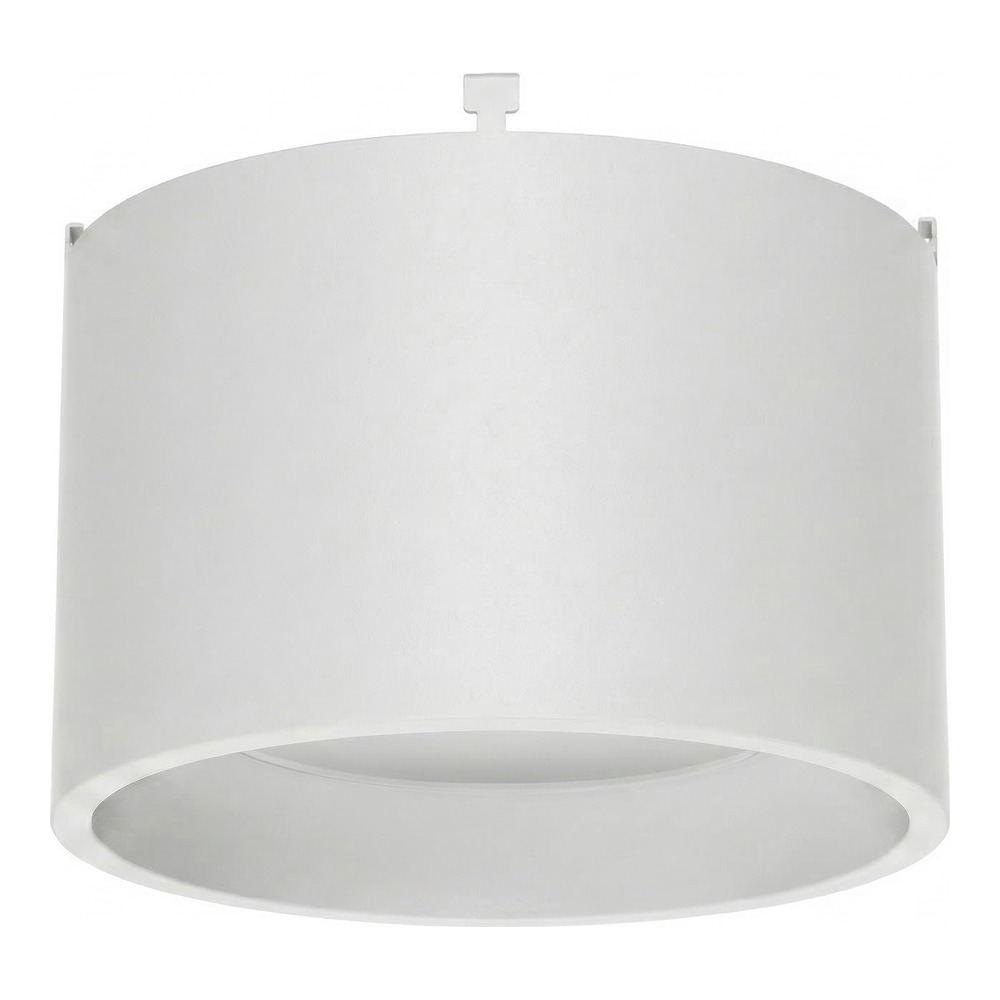

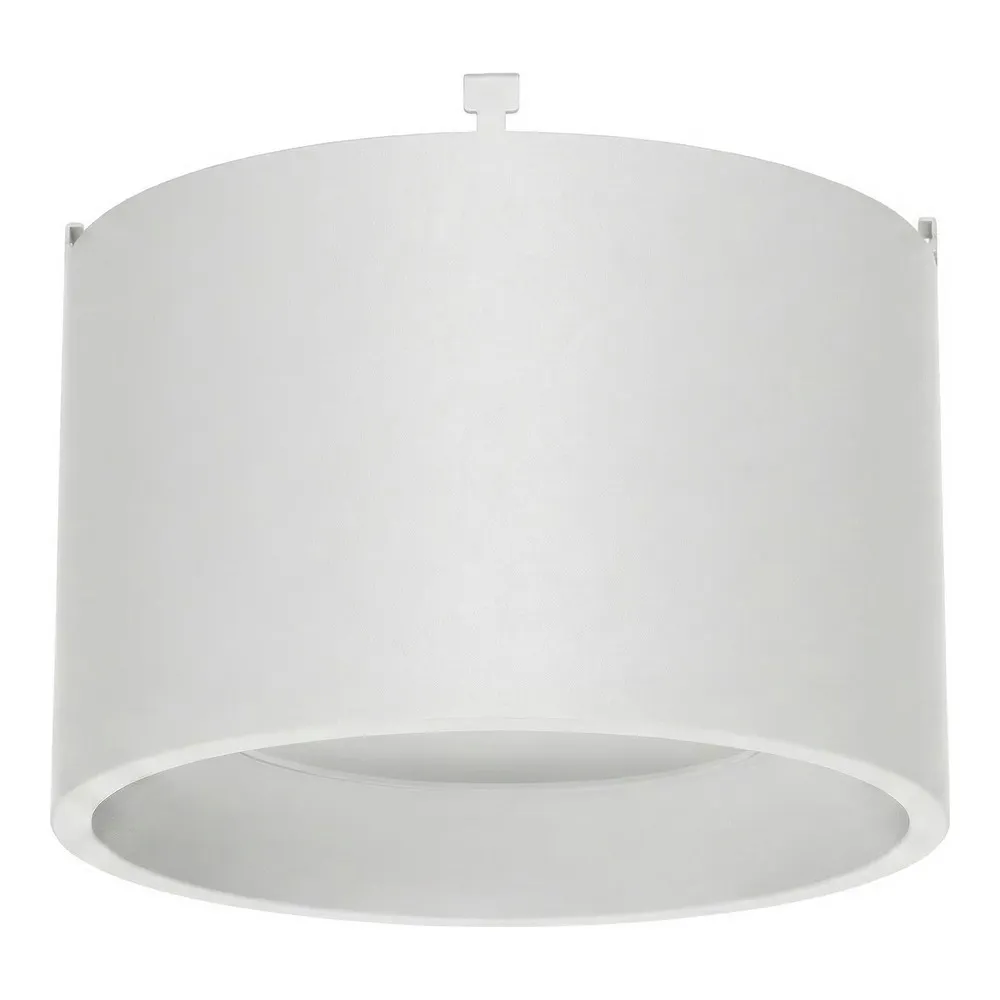

Built to dress up a surface discThe HS/VERS/5/WH/WH/CYL is a decorative trim, not a complete fixture. It belongs to the TUROLIGHT RGD-HS/VERS decorative trim range and is sized for the 5" version of the
LED surface discus. The matching light engine uses a PC housing in a white finish, so the matte white trim sits against the same colour family and the transition between fixture and ceiling stays clean. The cylindrical profile gives a maximum overall height of 1.97 inches — noticeably deeper than the 0.75-inch flat trims and the 1.39-inch recessed trims in the same range — which is what creates that small architectural step under the ceiling instead of a plain flat puck.
Light quality from the fixture it completesThe 5" RGD-HS/VERS surface discus this trim is made for delivers 700 initial lumens from 11W, with a
120° beam angle for wide, even washes over halls and small rooms, and CRI ≥80 so skin tones, wood and paint colours stay honest. It is a
5CCT selectable model, meaning five colour temperatures chosen right on the fixture — the exact kelvin values are printed on the unit and in the spec sheet — so one stocked item covers a warm bedroom and a crisper laundry room. Rated life is L70 at 50,000 hours, which keeps maintenance calls rare in stairwells and corridors.
Technical specificationsSKU: HS/VERS/5/WH/WH/CYL
Ordering code: 3660459
Type: decorative cylindrical trim for LED surface discus
Finish: matte white / matte white
M.O.D. (max. outside diameter): 5.38 in
M.O.H. (max. overall height): 1.97 in
Fits: RGD-HS/VERS 5" surface discus (RGD-HS/VERS/5/11W/MK5/WH/D)
Host fixture: 11W, 120V, 700 lumens, CRI ≥80, 120° beam, damp location, TRIAC dimmable to 5%, L70 @ 50,000 hrs
Operating temperature: -10 ˚C ~ +45 ˚C
Listing: cETL listed
Warranty: 5-year limited
Installation and electrical notesNo electrical work is involved in adding the trim itself: the surface discus mounts to the junction box first and the decorative ring goes on after. The fixture
fits all types of J-box, runs on 120V and is
TRIAC dimmable down to 5%, so a standard forward-phase wall dimmer gives you full range from bright task light to a low evening glow. Always confirm the dimmer is compatible with LED loads and respect its minimum and maximum load before finalizing a room. Since the fixture is damp location rated and works from -10 ˚C to +45 ˚C, it handles a covered entry, a three-season porch ceiling or an unheated basement landing without complaint.
Applications, options and documentationContractors use this trim to give builder-grade disc lights a finished look in condo hallways and rental units; homeowners use it over a vanity approach, in a walk-in closet or at the top of a staircase where the fixture is at eye level and details matter. The same family offers other diameters and finishes, including the
HS/VERS 12" matte white cylindrical trim for larger rooms, the
HS/VERS 12" matt black recessed trim, the warmer
HS/VERS 12" matt black and gold recessed trim and the
HS/VERS 12" brush nickel trim. The technical PDF spec sheet for this trim, with the dimensional drawing and the full ordering guide, is in the Documentation tab.
