ADJUSTABLE OUTDOOR LED WALL LIGHT FIXTURE

Name: ADJUSTABLE OUTDOOR LED WALL LIGHT FIXTURE
Brand: LEDCO
SKU: LCMUR-UD-10W-30K-P
Price: 131.97 CAD
Availability: InStock

SKU: LCMUR-UD-10W-30K-P

Brand: LEDCO

Give your entrance, garage door or garden wall a clean band of light up and down with this adjustable outdoor LED wall light fixture, SKU LCMUR-UD-10W-30K-P. Small, square and confident, it's the fixture people search for as an up/down wall light, an outdoor wall sconce, a cube wall light or simply a modern porch light. Two LED heads throw light upward and downward at the same time, and because the beam is adjustable, you decide how wide or how tight those two cones of light land on the wall. It's a favourite for framing a front door, washing a stone or brick façade, lighting a house number, marking a driveway, and it works just as well as outdoor sign lighting on a storefront or as accent lighting along a deck, patio or garden wall.

The housing is 100% die-cast aluminum, built to take Canadian weather, and it carries an IP65 rating for indoor or outdoor use. It measures L100 x W100 x H100mm, so it stays discreet on a narrow pilaster or between two windows. Inside, 2 x 5W of LED delivers 1000lm at an efficiency of 100lm/w — energy savings of up to 90% compared to traditional lighting — with a CRI of 80 so brick, wood and siding keep their true colour. The multi CCT design offers four selectable colour temperatures: 3000K, 4000K, 5000K and 6000K, from a warm welcoming glow to a crisp bright white. Input voltage is AC100-277V, power factor is ≥0.9, power efficiency is 85%, and the fixture operates from -20 to +60°C. Housing colour is available in black or white, and it's backed by a 3 year warranty.

Homeowners use it in pairs on either side of a front door, along a garage wall, on fence posts and around a back patio; contractors specify it for condo entrances, commercial façades, hotel corridors, restaurant terraces and building signage. The wide AC100-277V input makes it easy to place on residential or commercial feeds without changing fixtures, and the die-cast body handles freeze-thaw cycles, road salt spray and summer heat. Building a full exterior scheme? Pair it with the larger 10'' outdoor LED wall light fixture (bidirectional) or the 14'' outdoor LED wall light fixture (bidirectional) for longer wall runs, or mix in the Luvia outdoor LED wall light fixture at secondary doors. Add it to your cart and light both directions at once.

Built for the outdoors
This up/down outdoor wall light is made from 100% die-cast aluminum, a material chosen for exterior work because it sheds heat from the LED boards and shrugs off rain, snow and humidity. The compact cube shape measures L100 x W100 x H100mm and mounts flat against the wall, so it reads as architectural detail rather than as a bulky lantern. Housing colour is available in black or white: black disappears against dark siding and modern brick, white blends into stucco and light-coloured trim. The IP65 rating means the fixture is protected against dust and water jets, which is why it is rated for indoor and outdoor use — covered entries, exposed façades, garden walls and unheated garages all qualify.

Light quality and colour temperature
Two 5W LED modules (2 x 5W) produce a total of 1000lm, one beam aimed up the wall and one aimed down. Efficiency sits at 100lm/w, which is where the energy savings of up to 90% compared to traditional lighting come from. The adjustable beam angle is the feature installers appreciate most: tighten it for a narrow dramatic stripe on stone, or open it up for a soft wide wash across siding. With a CRI of 80, materials look natural rather than washed out. The multi CCT design gives four selectable colour temperatures — 3000K, 4000K, 5000K and 6000K — so one fixture can be warm at a residential entrance or cooler and more commercial on a façade or sign.

Technical specifications
SKU: LCMUR-UD-10W-30K-P

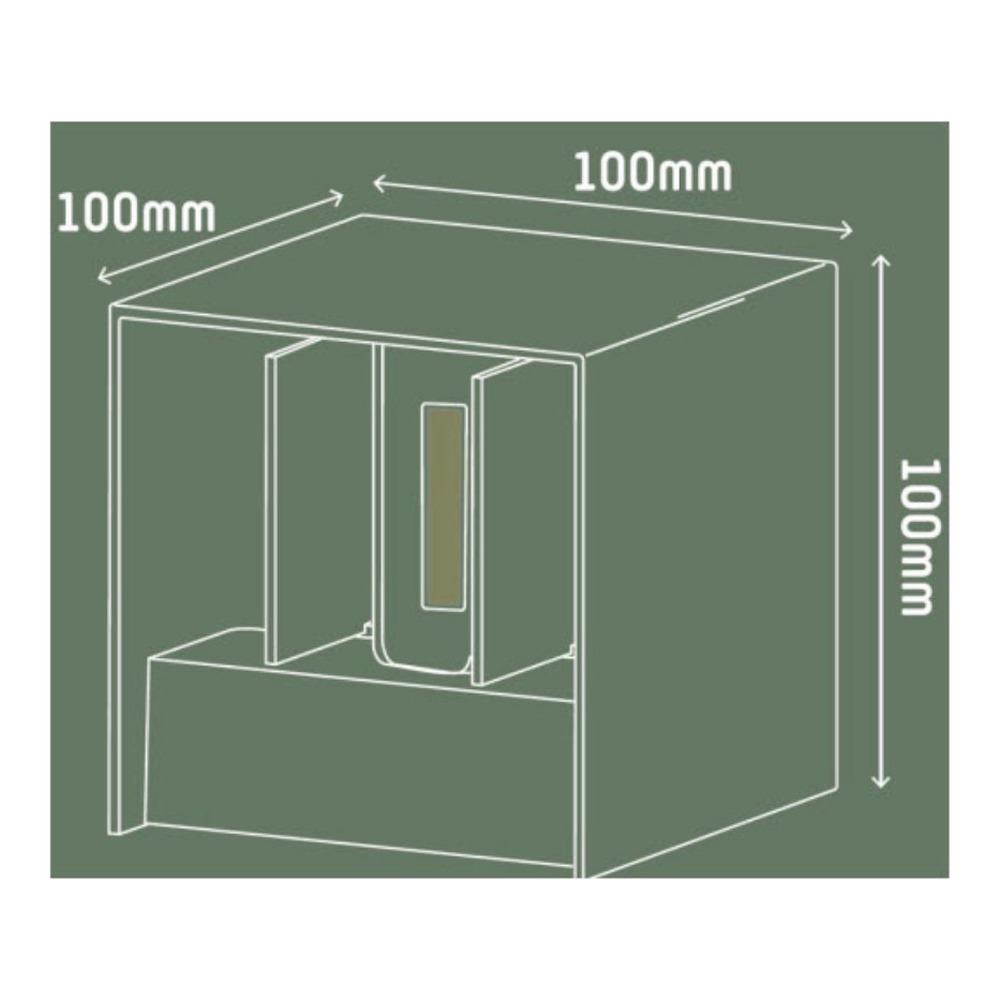

Dimension: L100 x W100 x H100mm
Power of LED: 2 x 5W
Luminous flux: 1000lm
Lamp efficiency: 100lm/w
Input voltage: AC100-277V
Colour temp: 3000K, 4000K, 5000K, 6000K
CRI: 80
IP rating: IP65
Material: Aluminium
Housing colour: Black, White
Beam angle: Adjustable
Working temp: -20~+60°C
Power efficiency: 85%
Power factor (PF): ≥0.9
Warranty: 3 years

Electrical and installation
The universal AC100-277V input lets the same fixture serve a house, a condo building or a commercial property without swapping models, and a power factor of ≥0.9 with 85% power efficiency keeps the load clean on the branch circuit. A working temperature range of -20~+60°C covers a Québec winter night and a July afternoon on a south-facing wall. Installation follows standard outdoor sconce practice: a weatherproof outlet box, the proper gasket seal against the wall, and connections made so water drains away from the fixture. Space units evenly — typically one per pilaster or at regular intervals along a long wall — and set the beam adjustment before final tightening. Electrical connections must be made by a qualified electrician according to the Canadian Electrical Code and local requirements.

Applications and documentation
Real projects for this up/down wall sconce: flanking a front door, climbing a garage wall, marking the columns of a covered porch, grazing a feature stone wall in the garden, lighting a restaurant terrace, a hotel entrance corridor, a clinic façade or a storefront sign band. It also works indoors for accent lighting in a stairwell or lobby. For bigger linear coverage on the same building, look at the 14'' outdoor LED wall light fixture (bidirectional) or the 18'' outdoor LED wall light fixture (bidirectional), and for a single downward beam at service doors, the 8'' outdoor LED wall light fixture. The full technical PDF spec sheet for LCMUR-UD-10W-30K-P is in the Documentation tab with the technical drawing and complete specification table.
