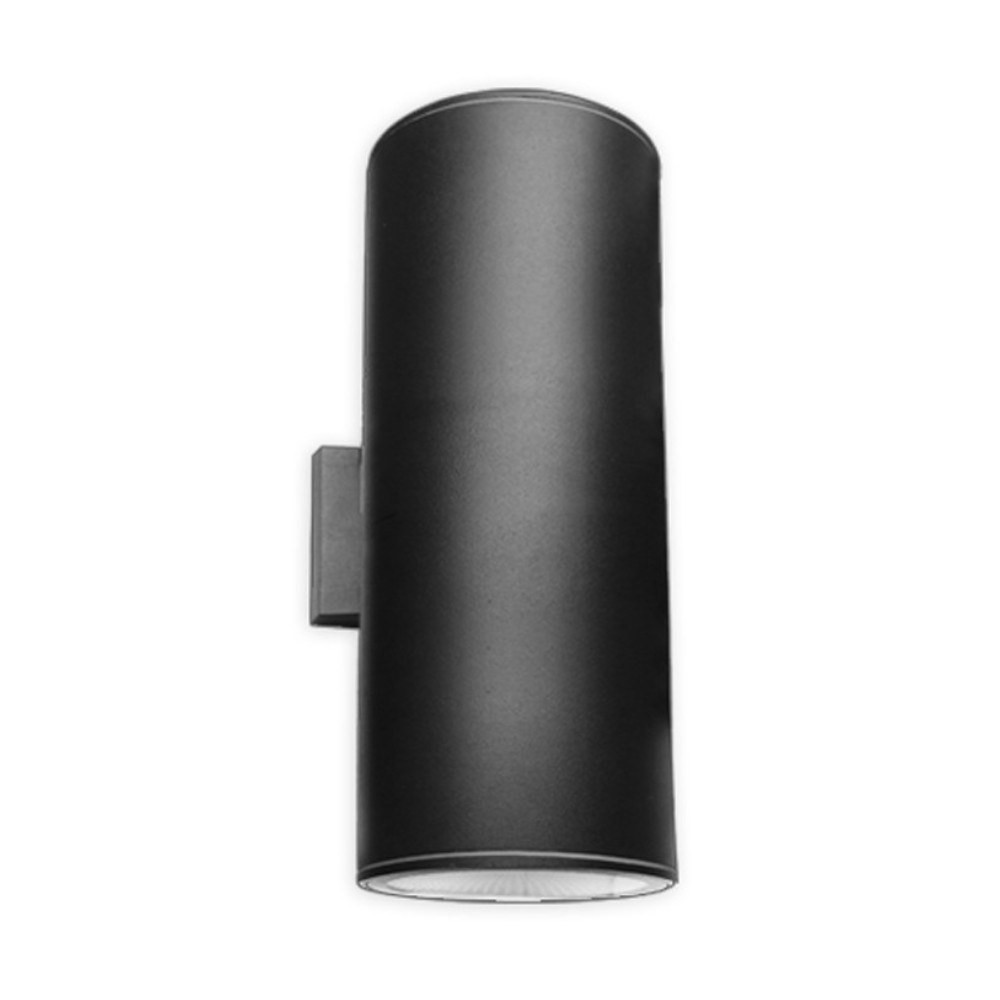

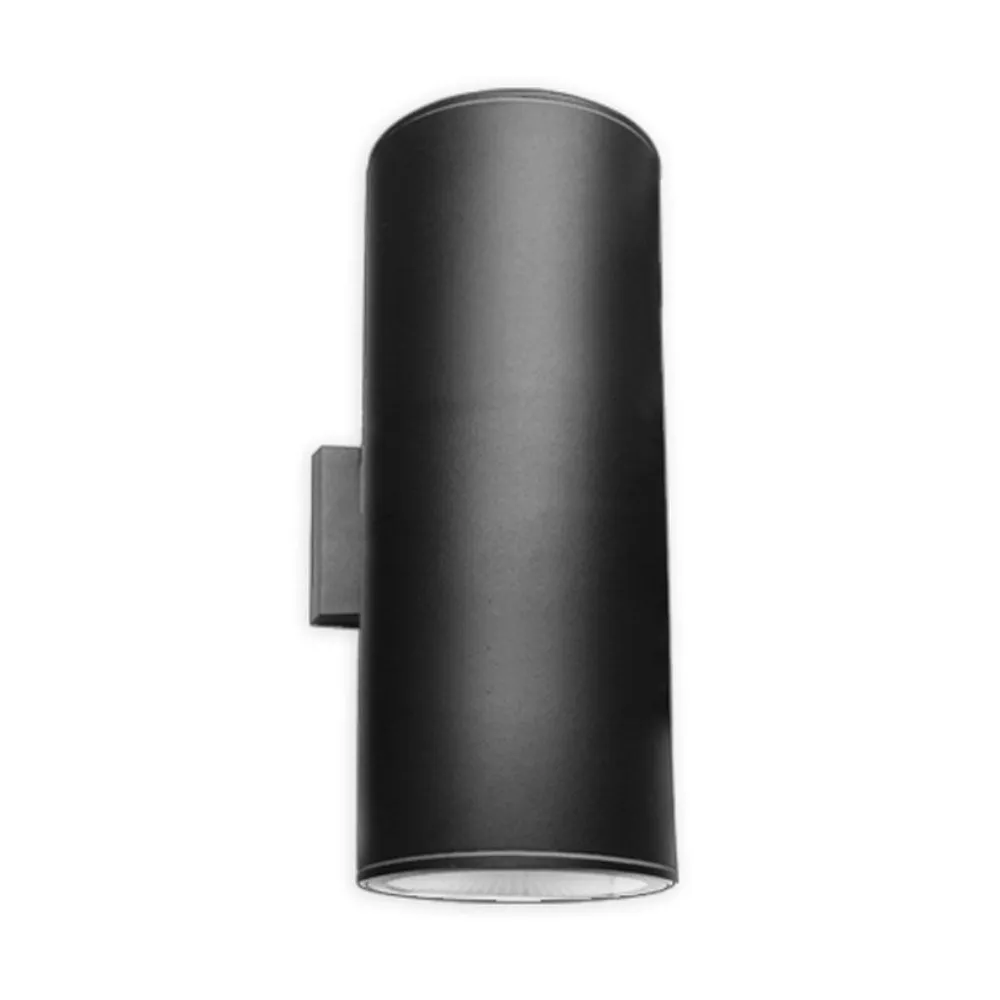

10'' OUTDOOR LED WALL LIGHT FIXTURE (BIDIRECTIONAL)

Name: 10'' OUTDOOR LED WALL LIGHT FIXTURE (BIDIRECTIONAL)
Brand: LEDCO
SKU: LCMUR-10-UD-30K-LC
Price: 114.97 CAD
Availability: InStock

SKU: LCMUR-10-UD-30K-LC

Brand: LEDCO

Give your entrance, garage wall or garden path a clean double wash of light with the 10'' outdoor LED wall light fixture (bidirectional), SKU LCMUR-10-UD-30K-LC. Also known as an up-down wall sconce, a two-way wall cylinder or simply a bidirectional outdoor wall light, this fixture throws a narrow beam up the wall and another one down, creating the sharp architectural lines people look for when they search for outdoor home lighting, outdoor garden lights or outdoor sign lights. It is equally at home on a house façade, a condo corridor, a commercial entrance, a fence post wall, a stone column or a covered deck, and you can even run it as a one-side-lighting fixture instead of two-side lighting if your design calls for a single grazing beam.

Inside the black aluminum and glass body sit two COB LED engines, 10W*2, together delivering 1800lm of warm 3000K white light with a CRI 80 rendering that keeps brick, wood siding and stucco looking natural rather than washed out. The tight 30° beam angle is what gives that crisp up-and-down scallop on the wall, while a power factor of 0.9 and a wide AC100V~277V input let the same fixture serve a home renovation or a commercial building without changing models. It is dimmable, rated IP65 for real outdoor exposure, measures Φ90*H260mm with a projection of 3.55" and a 4.50" wide base, and carries ETL and cETL, CE, RoHs certifications. Life span is rated at 50,000hrs and it comes with a 3 years warranty.

This is the fixture contractors reach for on garage doors, front porches, back decks, stairwells, patios, carports, motel and restaurant entrances, plaza signage and pillar-mounted gate lighting. Its J-box base matches a standard junction box, so replacing a tired old sconce on an existing Canadian exterior circuit is a straightforward swap — no special tools, no training. Want the same look in another size? Compare the 8'' outdoor LED wall light fixture, the 14'' outdoor LED wall light fixture (bidirectional) and the 18'' outdoor LED wall light fixture (bidirectional). Order yours today and light both directions at once.

Built for the weather
The housing is aluminum + glass: aluminum pulls heat away from the two COB LED boards so the diodes stay cool and stable, and the glass lenses keep the optics clean and easy to wipe down. The finish is a black housing color, the safe choice against white siding, red brick, grey stucco or dark cladding alike. With an IP65 protection level, the fixture is sealed against dust and driving rain, which is exactly what an exposed wall in a Canadian winter demands. Overall form is a slim cylinder, Φ90*H260mm, with a 10.20" height, 4.50" width, 3.55" projection and a 2.75" detail on the mounting area per the technical drawing.

Light quality and beam control
Two COB engines at 10W*2 produce a combined 1800lm at 3000K — a warm white that flatters masonry and wood and feels welcoming at a front door rather than clinical. CRI 80 keeps colours honest on signage and landscaping. The 30° beam angle is the star of the show: instead of spilling light everywhere, it draws two tight cones, one up and one down, for that high-end grazing effect on textured walls. Because the fixture offers two side lighting or one side lighting in option and different light beam angles in option, you can specify the exact look your elevation needs.

Technical specifications
SKU: LCMUR-10-UD-30K-LC
Power: COB 10W*2
Lumens: 1800lm
CCT: 3000K
CRI: 80
Beam angle: 30°
Voltage: AC100V~277V
Power factor: 0.9
Dimmable: Yes
Protection level: IP65
Material: Aluminum + Glass
Housing color: Black
Size: Φ90*H260mm
Life span: 50,000hrs
Warranty: 3 years
Certificates: ETL and cETL, CE, RoHs

Electrical and installation
The universal AC100V~277V input means one SKU covers residential and commercial voltages, and the 0.9 power factor keeps the load clean on the circuit. This is a J-box base fixture designed to match a standard junction box, so it mounts flush and tidy where an old sconce used to be — installation is described as easy, with no training or special tools required. It is dimmable, so you can pair it with a compatible exterior dimming control to soften the façade late at night; always confirm the control you choose is rated for LED loads. As with any outdoor wall sconce, seal the wall penetration properly and have the connection made by a licensed electrician where required by local code.

Applications and documentation
Think garage walls flanking a driveway, symmetrical pairs on either side of a front door, a rhythm of fixtures along a townhouse row, columns at a gated entrance, corridor walls in a multi-unit building, restaurant and boutique storefronts, hotel entries and illuminated sign panels. Since it is approved for indoor and outdoor use, it also works as a feature light in a stairwell, a lobby or a loft-style accent wall. Need a longer body or a single-direction version? See the 14'' outdoor LED wall light fixture (bidirectional), the 18'' outdoor LED wall light fixture (bidirectional), the 8'' outdoor LED wall light fixture or the softer Luvia outdoor LED wall light fixture. The full spec sheet, including the technical drawing with all mounting dimensions, is in the Documentation tab.
