Built to hang straight and last
The body of this suspended linear fixture is an aluminum frame that does double duty: it keeps the 45" (115cm) bar rigid so it hangs perfectly straight, and it draws heat away from the LED boards. Cooler LEDs mean stable colour and a rated 50,000-hour lifespan. The white finish is meant to blend into white ceilings and drywall bulkheads, while the slim profile — 50mm wide (58mm with switches) and 82mm high — keeps the fixture visually light above a desk or a table.
Light quality you can work under
A diffusing lens eliminates the dot effect, so you see one continuous line of light instead of a row of bright LED points. The 120° beam angle spreads that light wide enough to cover a work surface without hot spots, and a CRI of 80+ keeps skin tones, wood, paint and printed material looking natural. Selectable colour temperature means one fixture adapts to the room: 3000K for a warm, residential feel over a kitchen table, 4000K as a neutral all-purpose white for offices and clinics, 5000K for crisp task light in workshops and studios. Three selectable CCTs and three wattage levels are set right on the fixture with the integrated switches.
Technical specifications
SKU: 4LEDBARW
Brand: LED MONTREAL
Length: 45" (115cm)
Width: 50mm (58mm with switches)
Height: 82mm
Finish: White
Adjustable wattage: 40W / 50W / 60W
Brightness: 6000 to 7500 lumens (60W), 5000 to 6250 lumens (50W), 4000 to 5000 lumens (40W), depending on the Kelvin chosen
Adjustable CCT: 3000K / 4000K / 5000K
CRI: 80+
Lighting angle: 120°
Interconnection: up to 37.5 feet (10 fixtures)
Dimmable: Yes, with a 0/10V dimmer
Voltage: 110 to 240V
Certification: ETL
Lifespan: 50,000 hours
Operating temperature: 45C to -10C
Environment: indoor use only
Electrical, dimming and installation
The fixture accepts 110 to 240V, which makes it just as comfortable in a residential renovation as in a commercial fit-out. It is dimmable with a 0/10V dimmer — pair it with a compatible 0-10V control when you want to dial down a boardroom for presentations or soften a dining area in the evening. For longer runs, up to 10 fixtures interconnect for a continuous line of 37.5 feet, ideal for a corridor, an open-plan office or a row of workstations. Set the wattage and Kelvin on the integrated switches before you lift the bar into place, since the switches sit on the side of the housing. Installation must be done by a qualified electrician, and the fixture is rated for indoor use only, with an operating range of 45C to -10C.
Where it works and what's in the Documentation tab

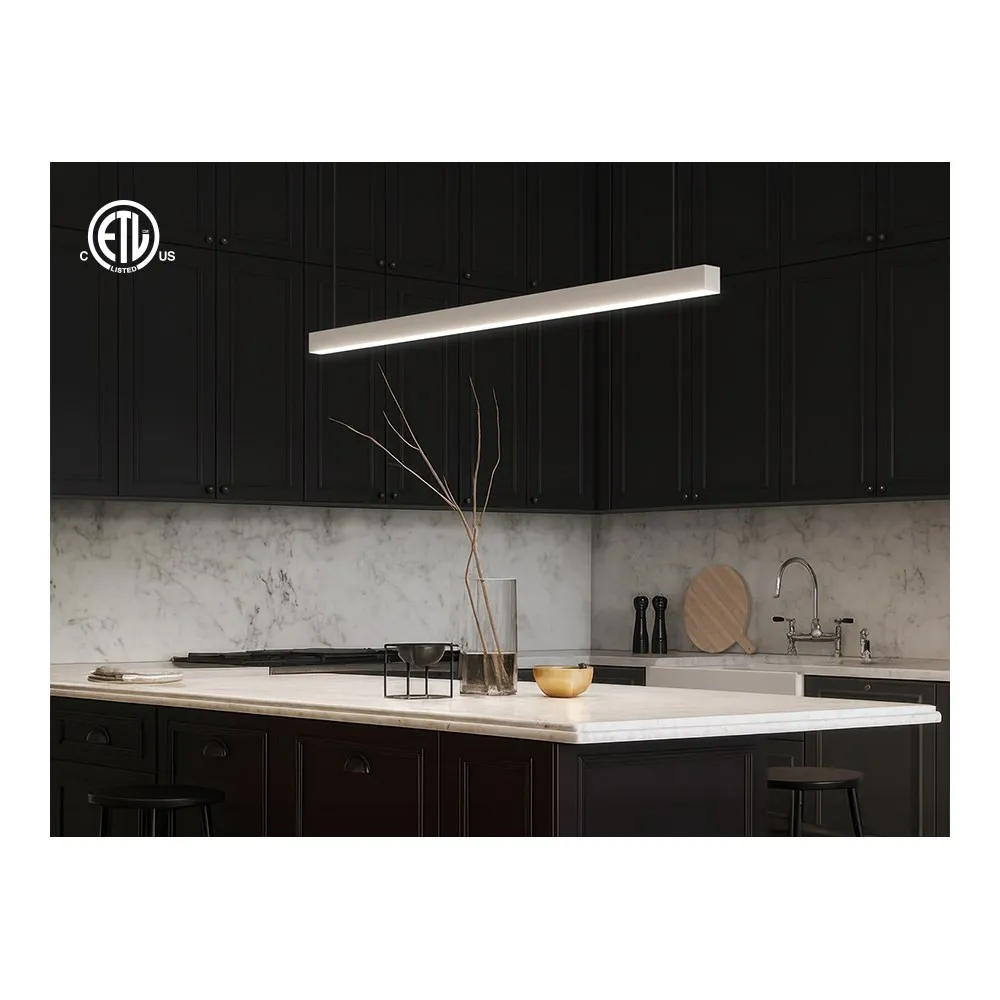

Think open-plan offices and cubicle rows, meeting rooms, dental and medical clinics, hair salons and barbershops, boutiques and showrooms, church halls, classrooms, garage and hobby workshops, home offices, finished basements and kitchen islands. A single 45" bar suits a desk or a small island; two or three interconnected units give you a continuous architectural line over a long table or counter. In renovation work, a suspended linear LED fixture is often the fastest way to replace tired fluorescent strip lighting without opening the ceiling. The full technical spec sheet (PDF) for the 4LEDBARW is available in the Documentation tab with all dimensions, wattages and lumen values — check it against your ceiling height and drop before you order.
