Built to hang straight and last
The body of this suspended linear fixture is an extruded aluminum frame that does double duty: it keeps the 45" (115cm) bar rigid and perfectly straight on its suspension cables, and it acts as a heat sink, drawing warmth away from the diodes. Cooler LEDs mean stable light output over time, which is how this linear LED lighting bar reaches its 50,000-hour lifespan. The slim profile — 50mm wide (58mm with switches) and 82mm high — reads as architectural rather than industrial, and the black or white finish lets you match ceilings, ductwork or cabinetry.
Light you can actually work under
A full-length diffusing lens covers the LEDs and eliminates the dot effect, so you see one continuous line of light instead of a row of hot spots. The 120° beam angle spreads that light wide, which is exactly what you want over a desk, a table or a workbench, and the CRI 80+ rendering keeps skin tones, paint colours and product displays looking natural. With the adjustable CCT switch you pick 3000K for a warm, homey feel, 4000K for a neutral office look, or 5000K for a bright, task-focused white — one SKU covers all of it, so you can standardize your stock and decide on site.
Technical specifications
SKU: 4LEDBAR
Brand: LED MONTREAL
Length: 45" (115cm)
Width: 50mm (58mm with switches)
Height: 82mm
Finish: Black or White
Interconnection: Up to 37.5 feet (10 fixtures)
Adjustable wattage: 40W / 50W / 60W
Brightness: 6000 to 7500 lumens (60W), 5000 to 6250 lumens (50W), 4000 to 5000 lumens (40W), depending on Kelvin chosen
Adjustable CCT: 3000K / 4000K / 5000K
CRI: 80+
Lighting angle: 120°
Voltage: 110 to 240V
Dimmable: Yes, with a 0/10V dimmer
Certification: ETL
Lifespan: 50,000 hours
Suitable environment: For indoor use only
Operating temperature: 45C to -10C
Wiring, dimming and interconnection
The fixture accepts 110 to 240V, so it drops into residential and commercial panels alike, and it is dimmable with a 0-10V dimmer for boardrooms, restaurants and any room that needs a mood change after hours. Plan your dimmer and control wiring before install, since 0-10V requires its own low-voltage control pair back to the dimmer. Units can be interconnected up to 37.5 feet (10 fixtures) to create one long continuous line, ideal for corridors, long service counters and open workspaces. Installation must be done by a qualified electrician, and the fixture is rated for indoor use only, within an operating temperature range of 45C to -10C.
Where it shines, and what to read before you buy

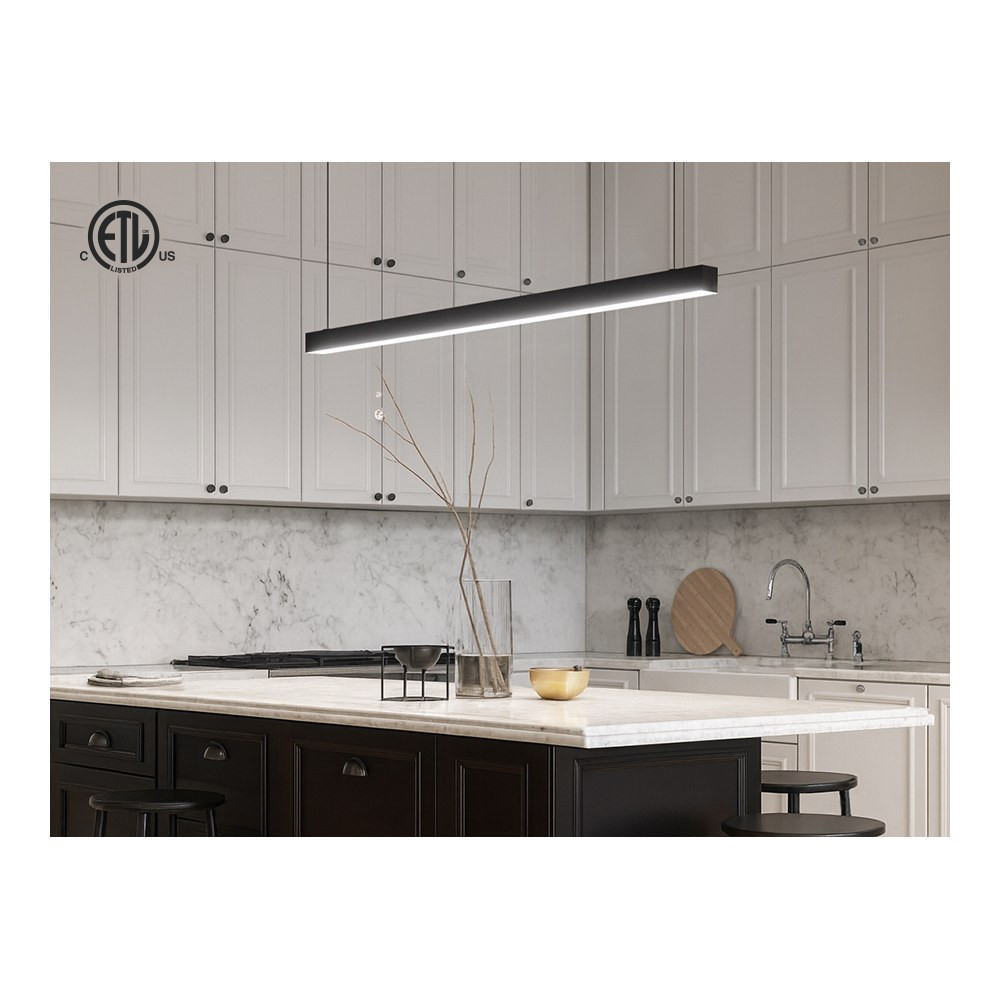

Think of the obvious wins first: a pair over a kitchen island, one centred above a dining or conference table, a row above open-plan desks, a bar over a salon station or a jewellery display, or a clean line above a home-office setup where a ceiling LED strip fixture would look too utilitarian. Set it to 60W and 5000K in a workshop or garage, or dial it down to 40W and 3000K in a dining room — the same fixture, two completely different rooms. The full technical spec sheet for 4LEDBAR is available in the Documentation tab of this page, with dimensions, lumen values and switch settings to hand to your electrician before the job starts.
