UNIVERSAL SPOTLIGHT - LCTL-UNI-PAR-BS

One fixture, many possibilities

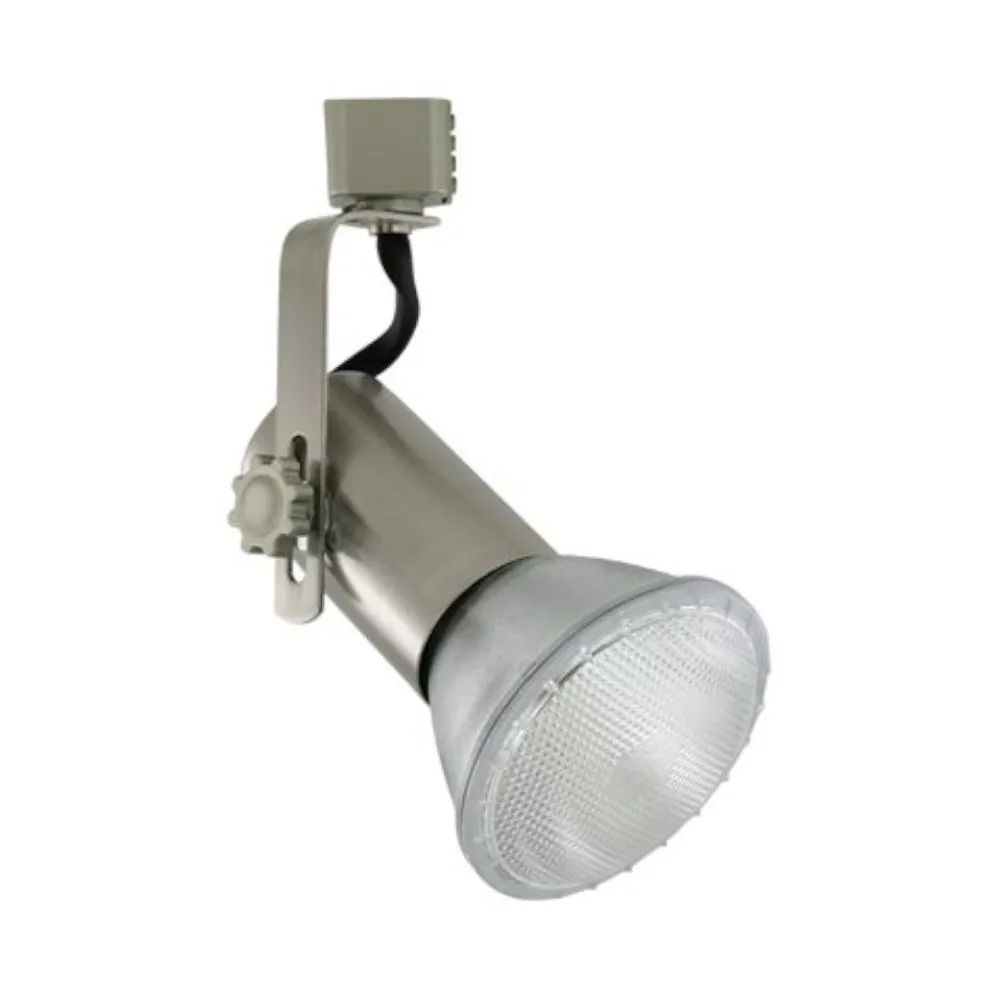

The Universal is a line voltage aluminum cylinder fixture for PAR light sources, and a front loading track fixture that provides a directional light source for special aiming. That combination is what makes it universal: install it once, then adapt the light over the years by switching PAR lamps, from a tight spot for a single object to a wider flood for a wall or a table. This version carries the SKU LCTL-UNI-PAR-BS.

Solid construction
The die cast aluminum body provides superior strength and rigidity, a real advantage for a fixture that will be aimed and re-aimed as displays change. Its softened edges add up to a low profile aesthetic design, and the included high temperature glass shield is mounted to the front of the fixture. Inside, a porcelain socket with an E26 base takes 120V PAR lamps up to 150 watts.

Aiming, dimming and installation
With 180° of vertical rotation and 358° of horizontal rotation, the head offers a wide range of light source aiming possibilities and assures a secure lock on the angle position. The fixture is dimmable when used with electronic line voltage rated dimming controls only; it runs on a 120V / 60Hz input with a 120V output and a 150W maximum load, and it is ETL listed. Use a dimmable lamp if you want to dim. The spec sheet's connector compatibility chart helps you confirm the connector style for your line voltage track. Accessories are ordered separately; cut the power at the breaker before any work and have a qualified electrician install the track and its power feed.

Ideas for homes and businesses
In a Winnipeg bakery, a few Universal track heads make the pastry counter glow; in a Moncton gallery, they follow each new exhibit; at home, they bring drama to a fireplace, a bookcase or a staircase wall. Fitted with LED PAR lamps, they keep long hours of accent lighting energy efficient. For another finish, see also the Universal track fixture in brushed nickel. The spec sheet, with dimensioned drawing, connector chart and ordering guide, is in the Documentation tab.

Technical specifications
Model: LCTL-UNI-PAR-BS
Type: front loading line voltage cylinder track fixture for PAR lamps
Finish code: BS
Body: die cast aluminum, softened edges, low profile
Lamp: 120V PAR, E26 base, 150 watts max
Socket: porcelain
Front shield: high temperature glass, included
Rotation: 180° vertical, 358° horizontal
Electrical: 120V / 60Hz input, 120V output, 150W maximum load
Dimming: electronic line voltage rated dimming controls only
Certification: ETL listed
