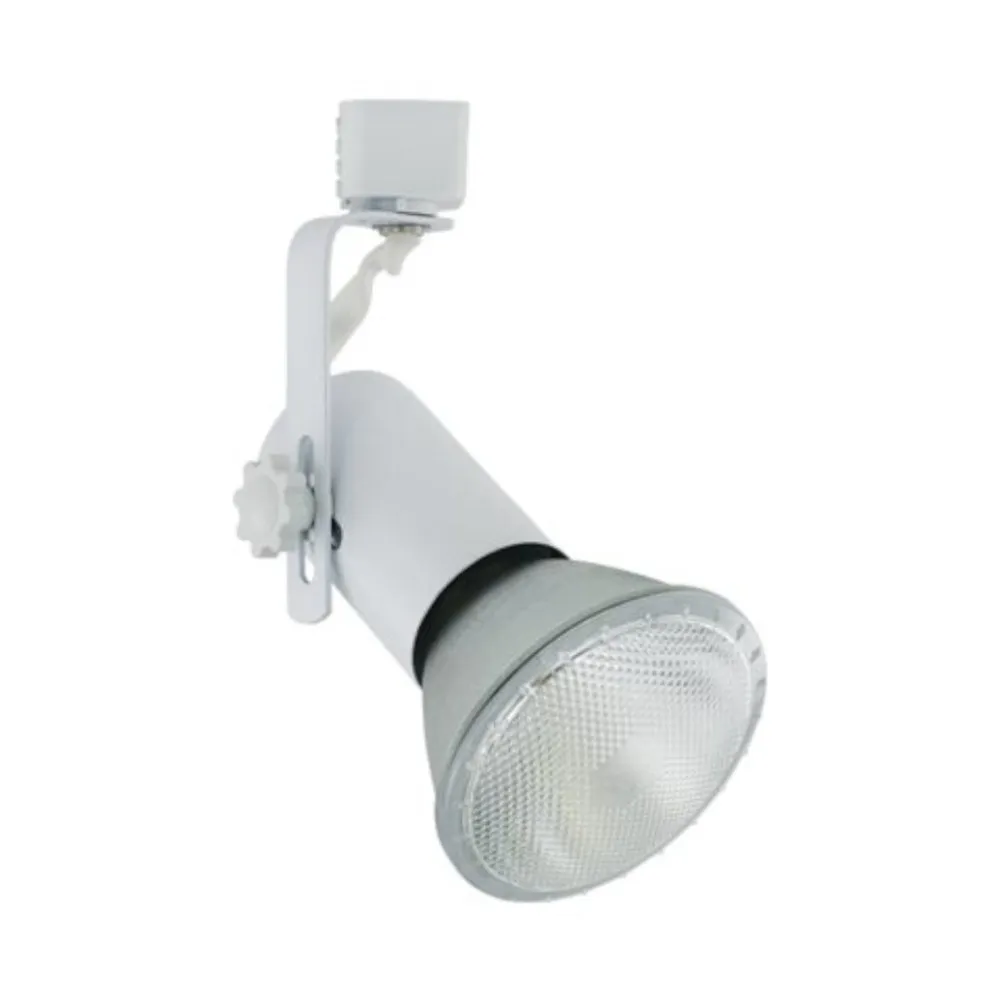

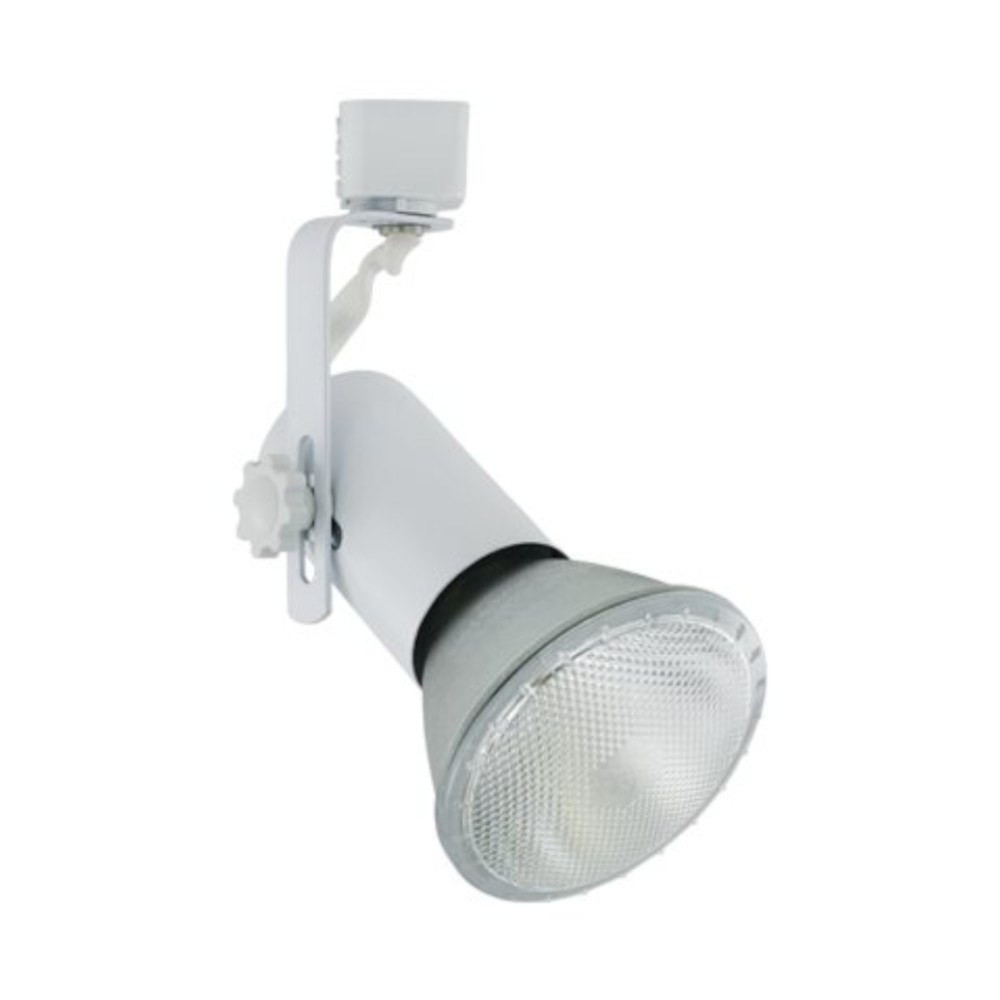

Built to last on the railThe UNIVERSAL is a line voltage aluminum cylinder fixture designed for a PAR light source. Its body is constructed of
die cast aluminum, which provides superior strength and rigidity — the kind of shell that survives years of being re-aimed, dusted and repositioned as a store layout changes. Softened edges add to the low profile aesthetic design, so a row of heads reads as a clean line on the ceiling rather than a cluster of hardware. The white trim finish blends into white ceilings and drywall bulkheads, which is exactly what you want when the light should be noticed and the fixture should not.
Lamping and light qualityLamping is handled by a
porcelain socket for 120V PAR lamps, 150 watts max, E26 base — porcelain because PAR lamps run hot and a ceramic socket handles that heat far better than plastic. A high temperature glass shield is included and comes mounted to the front of the fixture. Because you choose the lamp, you choose the beam: a narrow spot for artwork and merchandise, a wider flood for general washing of a wall or a work surface. Swap the lamp later and the same
track light head takes on a whole new job, which is why PAR-based heads remain a favourite of contractors and shop owners.
Aiming, electrical and dimmingThe fixture provides vertical rotation of 180° and horizontal rotation of 358°, giving a wide range of light source aiming possibilities, and it is a
front loading track fixture that assures a secure lock on angle position — set it once and it stays. Electrically, it takes 120V / 60Hz input, delivers 120V output and supports a 150W maximum load. It is
dimmable when used with electronic line voltage rated dimming controls only, so pair it with the right wall control if you want to soften the scene in a dining room or a lounge. The fixture is
ETL listed.
Technical specificationsSKU: LCTL-UNI-PAR-WH
Model: UNI1190
Type: line voltage track fixture for PAR lamps
Body: die cast aluminum
Trim finish: White (WH)
Socket: porcelain, E26 base, 120V PAR lamps
Maximum lamp wattage: 150 W
Input: 120V / 60Hz
Output: 120V
Maximum load: 150W
Vertical rotation: 180°
Horizontal rotation: 358°
Dimensions: 5 15⁄16" (251 mm) x 3 7⁄16" (87 mm) x 1 15⁄16" (49 mm)
Shield: high temperature glass, mounted to front
Label: ETL listed
Compatibility, applications and documentationThese track fixtures are compatible with
A-Line, Halo® and Lightolier® styles and most brands configured to the Halo® track system design, which makes this an easy replacement head for an existing rail in a renovation. Think of a Montréal boutique lighting a new merchandising wall, a gallery adding three heads over a fresh hanging, a café highlighting a pastry case, or a homeowner aiming light at a stone fireplace and a bookshelf in the same room. Accessories should be ordered separately. If you prefer a darker or metallic look, the same fixture is offered as the
Universal spotlight in black and the
Universal spotlight in brushed steel; for an integrated LED or GU10 alternative on the same style of rail, look at the
Apollo spotlight in white or the
Apollo GU10 spotlight in white. The full technical PDF spec sheet is available in the Documentation tab for dimensions, the connector compatibility chart and the ordering guide.
