T CONNECTOR FOR TRACK - BLACK - V1

Name: T CONNECTOR FOR TRACK - BLACK - V1
Brand: ARANI
SKU: TL-C-T-BK-V1
Price: 19.97 CAD
Availability: InStock

SKU: TL-C-T-BK-V1

Brand: ARANI

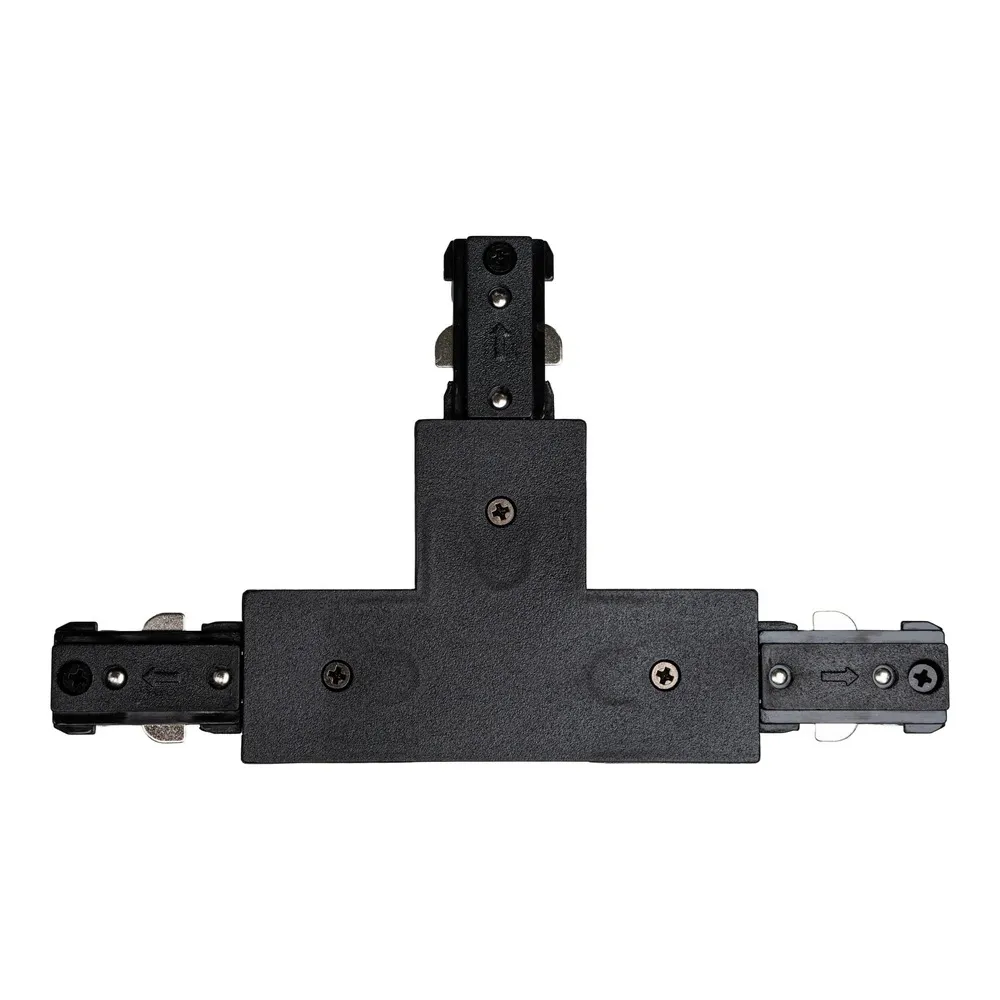

Take your track lighting in a new direction. This ARANI T connector for track creates a three-way junction: one straight run continues while a second branch leaves it at a right angle, forming a T. Also called a T-shaped connector, a track tee or a three-way track connector, it lets a single system cover a main aisle and a side wall, a kitchen island and a counter, or a gallery corridor and a feature wall. It is the piece that turns a line of track lighting into a real network.

Made of black polycarbonate to match the black track, it measures 7-1/16 in (179.4 mm) by 4-3/16 in (106.4 mm). It belongs to an H-type track system designed for 120 V, with a maximum current of 20 A and 1,920 W, rated IP20 for dry locations and operating from -20 °C to 45 °C. The system carries cETLus certification and a 3-year warranty. H-type heads can be positioned on all three branches and aimed independently. Its black finish blends with the track for a tidy, continuous look. SKU: TL-C-T-BK-V1.

Build each branch with the 4 ft black track and power the network with the end feed for track or a ceiling feed. It is great for open-concept condos, boutiques with a central aisle and wall displays, restaurants with a bar and a dining room, or offices with long rows of desks. From Ottawa to Saskatoon, it helps put light exactly where each part of the room needs it. Have a licensed electrician connect the supply according to the Canadian Electrical Code, and add it to your cart with the rest of your track system.

Compatible with
Works with:
Channel / profile: TL-4FT-BK-V1

19.97$

Supplier availability: In stock (+500)

Learn more
Documentation

Branching out with a T
The T connector joins three track lengths in a T shape: a main run that continues straight and a branch that leaves it at a right angle. The layout carries on through the junction, so H-type track heads can be placed on every branch and aimed where each area needs light. It belongs to the ARANI black track lighting system, with 4 ft and 8 ft lengths, an end feed, a ceiling feed (canopy), a mini-joiner, an L connector and end caps, all sharing the same black finish and H-type connection.

Materials and ratings
The housing is black polycarbonate, like the other connectors of the system, and the T connector measures 7-1/16 in (179.4 mm) by 4-3/16 in (106.4 mm). The track system is designed for 120 V, with a maximum current of 20 A and 1,920 W shared by all the heads on the network. It is rated IP20 for dry indoor locations and operates from -20 °C to 45 °C. It carries cETLus certification and a 3-year warranty, for peace of mind in homes and businesses alike.

Designing a layout with branches
Draw the main run first, then mark where the branch will leave it and count the track lengths needed for each of the three arms. Install the T connector at the junction, extend straight sections with the mini-joiner connector for track and turn corners at the end of a branch with the L connector for track. Work with the power off, fasten every length firmly, keep the combined load of all heads within the 1,920 W and 20 A ratings, and have a licensed electrician connect the supply according to the Canadian Electrical Code.

Where a T layout shines
In an open-concept home, one run can follow the kitchen counter while a branch reaches over the island or the dining table. Boutiques light a central aisle and a perpendicular wall of displays from the same network; galleries cover a corridor and a feature wall; restaurants reach both the bar and the dining room; offices light long rows of desks. In Canadian homes and shops, where winter evenings are long, a branched track layout keeps every zone bright and welcoming. The spec sheet in the Documentation tab lists the dimensions of every part of the system.

Technical specifications
SKU: TL-C-T-BK-V1
Type: T connector (three-way)
Dimensions: 7-1/16 in (179.4 mm) × 4-3/16 in (106.4 mm)
Material: polycarbonate, black
System voltage: 120 V
System maximum current: 20 A
Protection: IP20, dry locations
Warranty: 3 years
