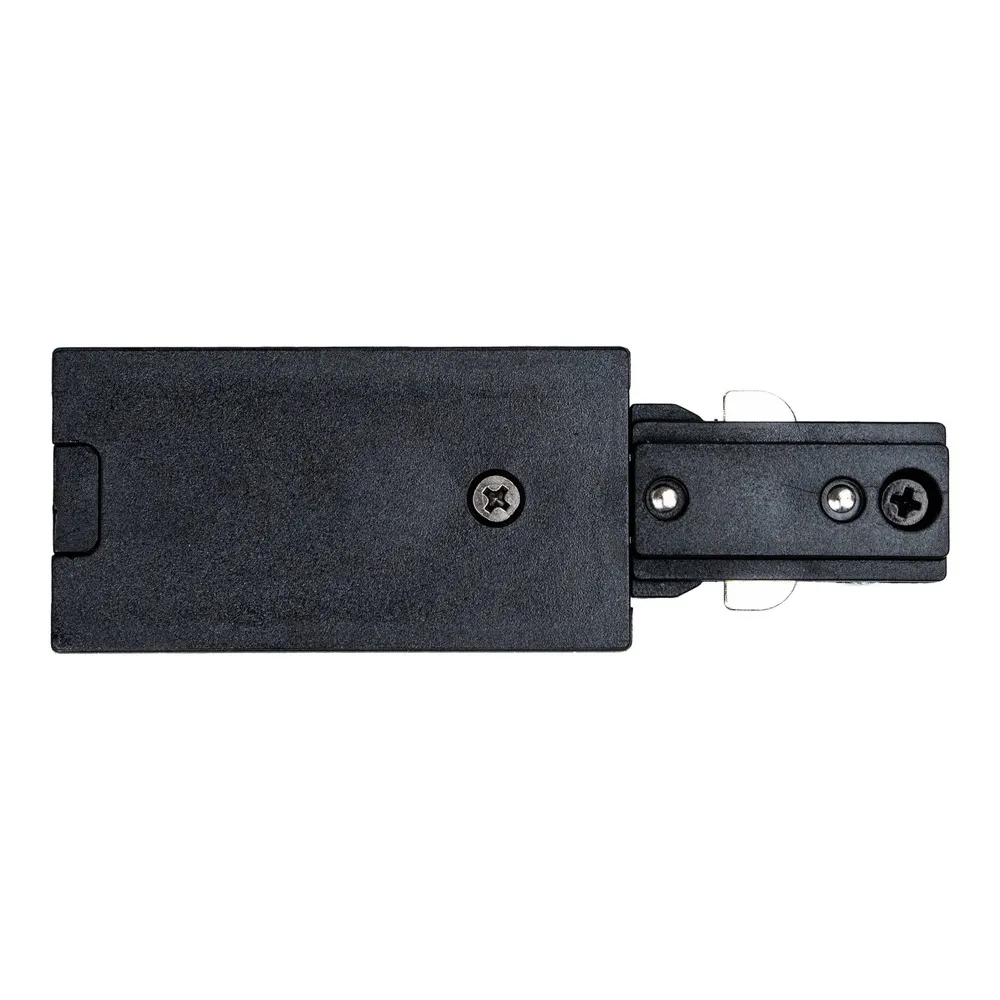

    END FEED FOR TRACK - BLACK - V1
    END FEED FOR TRACK - BLACK - V1

    END FEED FOR TRACK - BLACK - V1

    SKU: TL-C-LE-BK-V1

    Brand: ARANI

    Every track run needs a starting point for its power, and this is it. The ARANI end feed for track connects to one end of the track and brings the circuit in, so the whole run and every head on it come alive. Also called a live end connector, an end power feed or a track end feed, it is a simple way to power a straight run of track lighting from an electrical box located at the end of the layout. Mount the track, connect the feed, add the heads: the whole system starts here.

    Made of black polycarbonate, it measures 4-3/16 in (106.4 mm) by 1-3/8 in (34.9 mm), the same 1-3/8 in (34.9 mm) width as the track, so the line continues without a visual break. It is part of an H-type track system designed for 120 V, with a maximum current of 20 A and 1,920 W, rated IP20 for dry locations and operating from -20 °C to 45 °C. The system is cETLus certified and backed by a 3-year warranty. SKU: TL-C-LE-BK-V1.

    Attach it to the 4 ft black track at the end closest to the supply; depending on where the box is, the ceiling feed for track is the other option. It is ideal above a kitchen island, along a hallway, over a dining table, or across a boutique or office ceiling, in new construction and renovations alike. From Kingston to Kamloops, it is the dependable first link of the ARANI black track system. Have a licensed electrician make the connection according to the Canadian Electrical Code, and add it to your cart with your track and heads.

    Compatible with
    Works with:
    Channel / profile: TL-4FT-BK-V1

    9.97$

    Supplier availability: In stock (+500)

    The starting point of the circuit
    The end feed is where the supply enters the track system. It attaches to one end of a track length and brings power into the conductors of the track, so H-type track heads can be installed and aimed anywhere along the run, including lengths joined to it. It belongs to the ARANI black track lighting system, alongside 4 ft and 8 ft lengths, a ceiling feed (canopy), a mini-joiner, L and T connectors and end caps, all with the same black finish and H-type connection. In short, it is the piece that turns a length of track into a working light fixture.

    Construction and ratings
    The housing is black polycarbonate, and at 4-3/16 in (106.4 mm) by 1-3/8 in (34.9 mm), the end feed matches the width of the track for a seamless look. The system is designed for 120 V, with a maximum current of 20 A and 1,920 W for all the heads it supplies. It is rated IP20 for dry indoor locations and operates from -20 °C to 45 °C, and it carries cETLus certification and a 3-year warranty.

    Installation tips
    Plan the layout so that one end of the run falls near the electrical box. With the power off at the panel, the electrician connects the supply to the end feed, installs it at the end of the track and fastens the track to the ceiling. Extend the run with the mini-joiner connector for track or add a branch with the T connector for track, keeping the total load of all heads within 1,920 W and 20 A. Before the first switch-on, check that every head is firmly locked in place and aimed where you want it. All work should follow the Canadian Electrical Code.

    Where it is used
    In homes, an end-fed track over a kitchen island, a dining table, a hallway or a home office is a classic way to add flexible accent lighting. In boutiques, galleries and restaurants, feeding the track from one end keeps the ceiling tidy and leaves the full length free for heads. Planning a 4 ft track lighting run in a Canadian condo or bungalow? The end feed is usually the first part on the list. When winter evenings grow long, a well-lit kitchen or entrance makes the whole home feel more welcoming. The spec sheet, with the dimensions of every part of the system, is in the Documentation tab.

    Technical specifications
    SKU: TL-C-LE-BK-V1
    Type: end feed (live end)
    Dimensions: 4-3/16 in (106.4 mm) × 1-3/8 in (34.9 mm)
    Material: polycarbonate, black
    System voltage: 120 V
    System maximum current: 20 A
    Protection: IP20, dry locations
    Warranty: 3 years
