RECESSED ALUMINUM PROFILE 508 WITH 2 ENDCAP 3 CLIPS & PC COVER 8FT SILVER

Name: RECESSED ALUMINUM PROFILE 508 WITH 2 ENDCAP 3 CLIPS & PC COVER 8FT SILVER
Brand: CANOLIGHT
SKU: CL-Alu-508-SL-8ft
Price: 20.97 CAD
Availability: InStock

SKU: CL-Alu-508-SL-8ft

Brand: CANOLIGHT

Give your LED strips the clean, built-in look of a real architectural fixture with the Canolight Profile 508 recessed aluminum channel. Known by a dozen names — aluminum extrusion, LED aluminum channel, extruded aluminum profile, recessed LED track or strip light housing — this 8ft kit is what turns a simple roll of tape light into a smooth, continuous line of light. The recessed mounting design lets the LED strip sit flush inside the profile, so the channel disappears into ceilings, drywall, cabinetry or custom millwork and all you see is the glow. It is the go-to solution for cove lighting, staircase illumination, under-cabinet runs, toe-kicks, closets, display niches and any project where the light should show but the hardware should not.

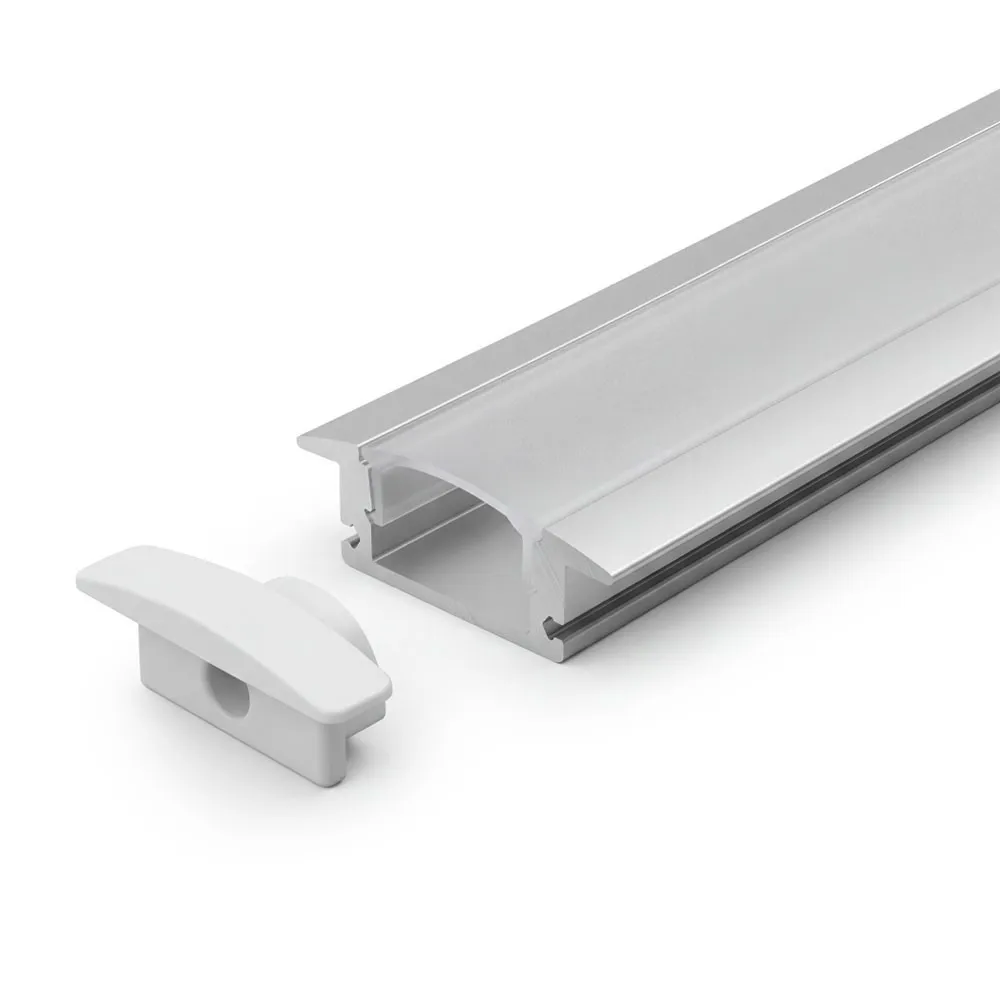

Everything you need comes in the box: the extruded aluminum body, a polycarbonate (PC) diffuser cover, 2 endcaps and 3 mounting clips. The PC cover spreads the LED point sources evenly over the whole length, killing hot spots and giving you that soft, uniform luminous line your eyes actually enjoy looking at. The 8ft (2438mm) length means fewer joints on long runs and faster layouts across standard room dimensions. The aluminum housing does double duty — rigid mechanical protection for the strip, and a passive heat sink that pulls heat away so your LED tape keeps its brightness and lasts longer. The silver anodized finish resists corrosion and sits comfortably beside white, wood, black or brushed metal interiors.

From a Montréal condo kitchen to a Calgary basement stair, a retail display wall or a reception desk in a small office, the Profile 508 gives installs that finished, factory-quality edge — no exposed aluminum, no visible strip ends, thanks to the two endcaps. The 3 clips lock the channel into a groove or cavity cut in the mounting surface, so drywallers, cabinetmakers and electricians can all work with it. It accepts most standard LED strip lights on the market, so you simply pick the tape, the colour temperature and the driver you like and drop it in. Order CL-Alu-508-SL-8ft by the length you need and build your linear lighting run exactly the way you pictured it.

Built to protect and to perform
The Profile 508 starts with an extruded aluminum body, the material of choice for linear LED work because it is rigid, straight and thermally active. Once your tape light is seated inside, the channel becomes a passive heat sink: heat generated by the diodes is drawn into the aluminum and released along the full run instead of building up under the strip. That single detail is what keeps lumen output stable over the years and protects the investment you made in a quality LED strip. The silver anodized finish adds corrosion resistance and a discreet, neutral look that works with white ceilings, walnut millwork or matte black cabinetry alike.

Light quality you can see
An LED strip on its own is a row of bright dots. Behind the included polycarbonate (PC) diffuser cover, those dots blend into one continuous luminous line. The diffuser softens glare, evens out the beam across the full 8ft (2438mm) span and makes the installation far more comfortable to look at — which matters enormously in coves, stairwells and any place where the light source falls within sightlines. It also shields the strip from dust and casual contact, a real advantage in kitchens, workshops and commercial display cases.

Technical specifications
Brand: Canolight
Model: CL-Alu-508-SL-8ft
Profile: 508 recessed aluminum extrusion
Length: 8ft (2438mm)
Finish: silver anodized
Body material: extruded aluminum
Cover: polycarbonate (PC) diffuser
Included: 2 endcaps, 3 mounting clips, PC cover
Mounting: recessed, in a groove or cavity cut in the surface
Compatibility: most standard LED strip lights

Installation and compatibility
Recessed installation is simple when you plan the groove first: rout or frame a channel in the drywall, ceiling panel, cabinet side or stair nosing, then secure the 3 mounting clips along its length and snap the aluminum profile onto them. Feed your LED strip inside, run the wiring out through one end, slide the PC cover into the track and close both ends with the 2 endcaps for a seamless, factory-finished result with no raw aluminum edges showing. Because the 508 accepts most standard-width LED tapes, you keep full freedom on colour temperature, CRI, voltage and dimming — those characteristics come from the strip and driver you choose, not from the channel. For long runs, butt several 8ft sections end to end and hide the joints above a cove lip or inside a reveal.

Where it earns its keep, and documentation
Homeowners use it for kitchen under-cabinet lighting, floating shelves, headboards, bathroom mirror surrounds and basement coves. Contractors specify it for stair illumination in multi-unit buildings, corridor accent lines and reception millwork. Retailers and restaurants use it behind bars, in display cases and along shelving to make products pop. In every case, the recessed format keeps the ceiling or cabinet face clean. The technical PDF spec sheet for CL-Alu-508-SL-8ft is available in the Documentation tab of this page — download it before cutting your groove so your reveal dimensions match the profile exactly.
