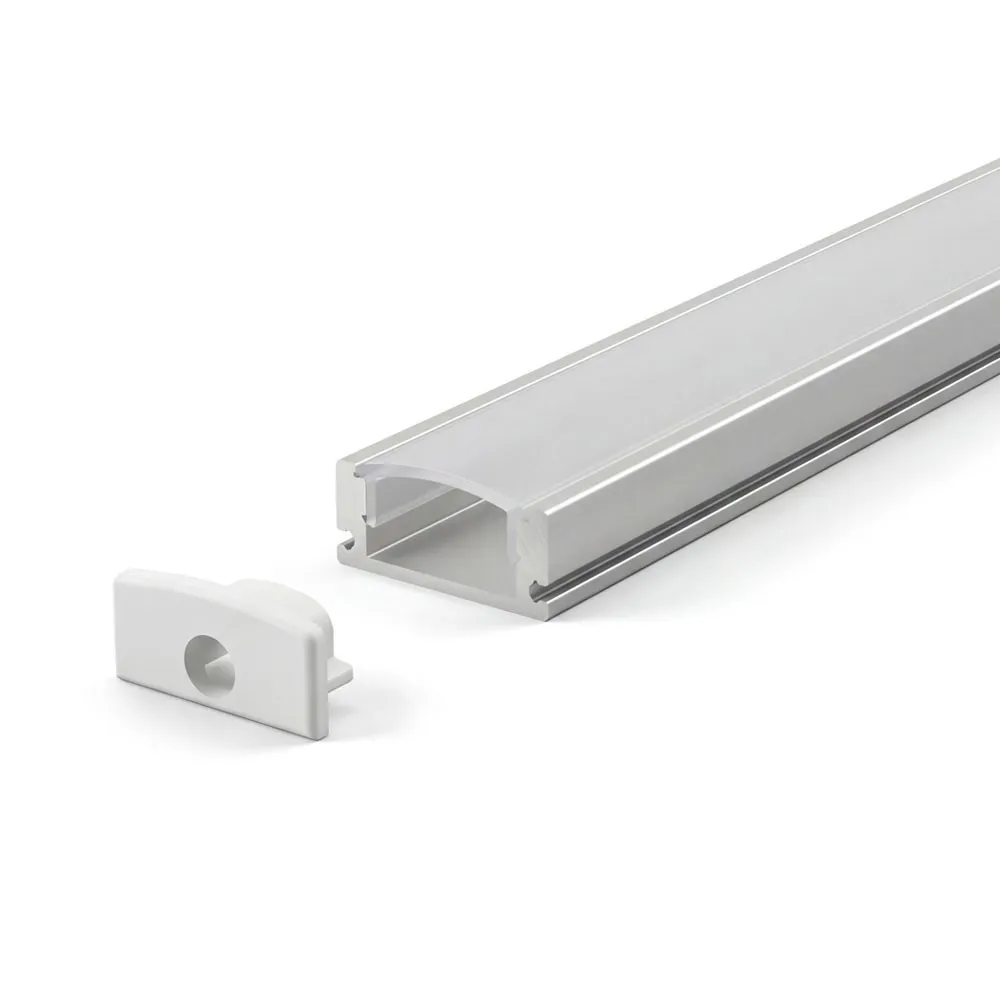

Built from solid extruded aluminumThe 509 series is a one-piece
aluminum extrusion with a silver body, engineered as much for thermal performance as for looks. LED tape produces heat at the diode and at the solder points, and heat is what shortens the life of a strip. Bonding the tape to the flat interior base of the channel gives that heat somewhere to go: the aluminum spreads it along the full 8 ft run and releases it to the room. The result is a strip that holds its lumen output and colour instead of drifting after a few thousand hours. The silver anodized-look finish sits quietly against white ceilings, maple or walnut millwork, painted drywall and steel shelving, which is why it has become a default choice for both residential renovations and commercial fit-outs.
Light quality and the PC lensThe included
diffused PC cover is the part your eye actually sees. A bare LED strip reads as a line of bright dots with dark gaps between them, and in a mirror, a glass backsplash or a polished counter those dots multiply. The high-quality polycarbonate lens blends them into one even band of light, softens glare at eye level and keeps the installation looking intentional. CANOLIGHT specifies a cover with
no yellowish outlook, so the diffuser will not turn amber and shift the appearance of your carefully chosen colour temperature. The lens snaps on and off by hand, which matters more than people expect on day two: swapping a strip, adding a run, or re-dressing a wire is a two-minute job rather than a demolition.
Technical specificationsSKU: CL-Alu-509-SL-8ft
Series: CL-ALU-509
Type: Surface mounting aluminum channel for linear LED light
Material: Aluminum
Body colour: Silver
Length: 8 ft
Width: 17.4 mm
Height: 12.4 mm
Interior opening: 7 mm
Cover: Diffused PC
Installation: Surface mounted
Included: 2 end caps, 3 mounting clips, PC cover
Installation and compatibilityInstallation is straightforward and needs no special tools. Space the three mounting clips along the run, fasten them to the surface with the appropriate anchors, then press the channel onto the clips until it clicks. The 8 ft length can be cut down with a fine-tooth blade or a mitre saw for shorter sections, corners and returns — plan your cut so the strip's copper cut-marks line up and so the feed wire exits at an end cap or through a discreet hole. The channel accepts
LED strip lights whose width fits inside the 7 mm opening, with the low 12.4 mm profile leaving room for the tape and its adhesive. Because this is a passive housing, all of the electrical work lives outside it: match your strip to its own driver or power supply and to a compatible dimmer, and keep connections in an accessible junction point. Run it dry — surface channels like this belong in interior, protected locations unless the strip system itself is rated otherwise.
Where to use it, and documentationConcrete examples: a continuous line under kitchen upper cabinets so the counter is lit without shadows; a cove line above crown moulding in a living room; stair stringers and handrail undersides; the toe-kick of a reception desk; shelf-by-shelf lighting in a boutique, bakery display or wine cellar; long runs over a workbench or in a garage where an unprotected strip would take a beating. For continuous architectural lines, order multiple lengths and butt them end to end, or mix formats — the
509 profile 10 ft silver covers longer spans, while the
509 profile 10 ft black and the
509 profile 8 ft black suit dark ceilings and industrial interiors. The technical PDF for the CL-ALU-509 channel, with the profile drawing and dimensions, is available in the Documentation tab — worth downloading before you order your strip so you can confirm the fit.
