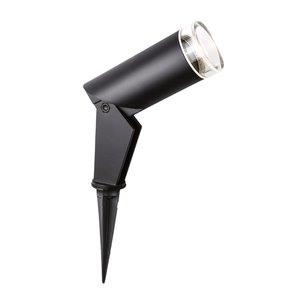

PICO LED OUTDOOR SPOTLIGHT (12-24V)

Name: PICO LED OUTDOOR SPOTLIGHT (12-24V)
Brand: LEDCO
SKU: LCAP-PICO-24V-9W-3000K
Price: 101.97 CAD
Availability: InStock

SKU: LCAP-PICO-24V-9W-3000K

Brand: LEDCO

Give your trees, stone walls and house façade the kind of night-time presence they deserve with the PICO LED Outdoor Spotlight (12-24V). Compact, spiked and ready to disappear into a flower bed, this little workhorse is what most people are searching for when they type LED landscape lighting, outdoor garden lights or simply landscape led lights. Call it a garden spotlight, an uplight, a low-voltage projector or a sign light — it does all of those jobs. Push the aluminum spike into the soil, aim the head, and you have a warm pool of light washing up a maple trunk, grazing a brick wall, highlighting a column, an address plaque or a storefront sign.

This version is model LCAP-PICO-24V-9W-3000K: 9 watts of consumption for 900 lumens of usable output, in a cozy 3000K warm white that flatters wood, brick and greenery. The 40º projection angle keeps the beam tight and controlled instead of spilling light into your neighbour's window, and the fixture is dimmable so evening scenes can be softened to taste. It runs on 12V - 24V DC, carries an IP65 protection rating against rain, sprinklers and dust, operates from -25ºC to +60ºC, and is rated for 30 000 hours of life. The black body measures 168mm / 6.614" tall by 138mm / 5.433" with a 99mm / 3.898" head and 45mm / 1.772" lens diameter, and it comes with a 2 year warranty.

From a Montréal backyard buried in February snow to a summer patio on the South Shore, this low-voltage landscape spotlight handles the full Canadian calendar. It suits homeowners lighting a driveway border or garden path, contractors staging a full property scheme, and small businesses washing a sign or entrance. Power several fixtures from one supply such as the Luvia 100W outdoor power supply, then mix in Scoop landscape lighting for pathways. Prefer a cooler, crisper beam? The same fixture exists in 4000K. Plan your run, aim your heads, and light up the property tonight.

Built to live outside
The PICO spotlight is designed for permanent outdoor installation, with a sealed, weather-resistant housing and a gasketed lens that keep moisture, dust and debris away from the electronics. Its IP65 protection rating means rain, garden hoses and irrigation spray are a non-issue, and the stated operating range of -25ºC to +60ºC covers the reality of a Canadian year, from a January cold snap to a heat wave in July. The body handles thermal management through its structure so the LED runs cool — that is what protects both light output and colour consistency season after season. An aluminum spike is included, so most installs are as simple as choosing the spot, pressing it into the soil or mulch, and aiming.

Light quality and beam control
At 900 lumens from 9 watts, this LED garden spotlight produces a clean, focused beam rather than a vague glow. The 40º projection angle is the sweet spot for uplighting: wide enough to wrap a tree trunk or a section of wall, tight enough to keep the light where you aimed it. The 3000K warm white of this SKU renders wood grain, cedar, brick and foliage naturally instead of washing them out, and the adjustable head lets you fine-tune the aim after the plants grow in. The fixture is dimmable with compatible controls when you want a softer evening scene on the patio.

Technical specifications
Model: LCAP-PICO-24V-9W-3000K
Voltage: 12V - 24V DC
Consumption: 9 Watts
Light intensity: 900 Lumens
Colour temperature: 3000K (also offered in 4000K)
Projection angle: 40º
Protection rating: IP65
Operating temperature: -25ºC ~ +60ºC
Lifespan: 30 000 Hours
Dimmable: Yes
Colour: Black
Aluminum spike: Yes
Dimensions: 168mm / 6.614" x 138mm / 5.433", head 99mm / 3.898", lens 45mm / 1.772"
Warranty: 2 years

Wiring, compatibility and installation
Because it runs on low voltage, this spotlight pairs with a landscape transformer or driver and standard direct-burial cable — no line-voltage trenching through the yard. Multiple fixtures can be linked on the same run, which makes it easy to build a complete scheme around a property and add more heads later; size your supply to the total wattage of the run, for example with the Luvia 100W outdoor power supply. Plan the layout before digging: set fixtures back from the base of a tree or wall for a softer wash, keep connections above grade or inside a waterproof connector, and always cut power at the transformer before wiring. Any line-voltage connection should be handled by a licensed electrician.

Where it works and what pairs with it
Use it to uplight maples and spruces, graze a stone or brick façade, light a pergola post, a flagpole, a commercial outdoor sign or a restaurant entrance. Contractors often combine uplights with lower path fixtures for layered depth: the Scoop landscape light for walkways and steps, or the Luna LED outdoor light for accent points, all on the same low-voltage system. A smaller 3W PICO spotlight is available for shrubs and tighter accents. The full technical PDF spec sheet for this model is in the Documentation tab — check dimensions and voltage there before finalizing your layout.

Technical Files
