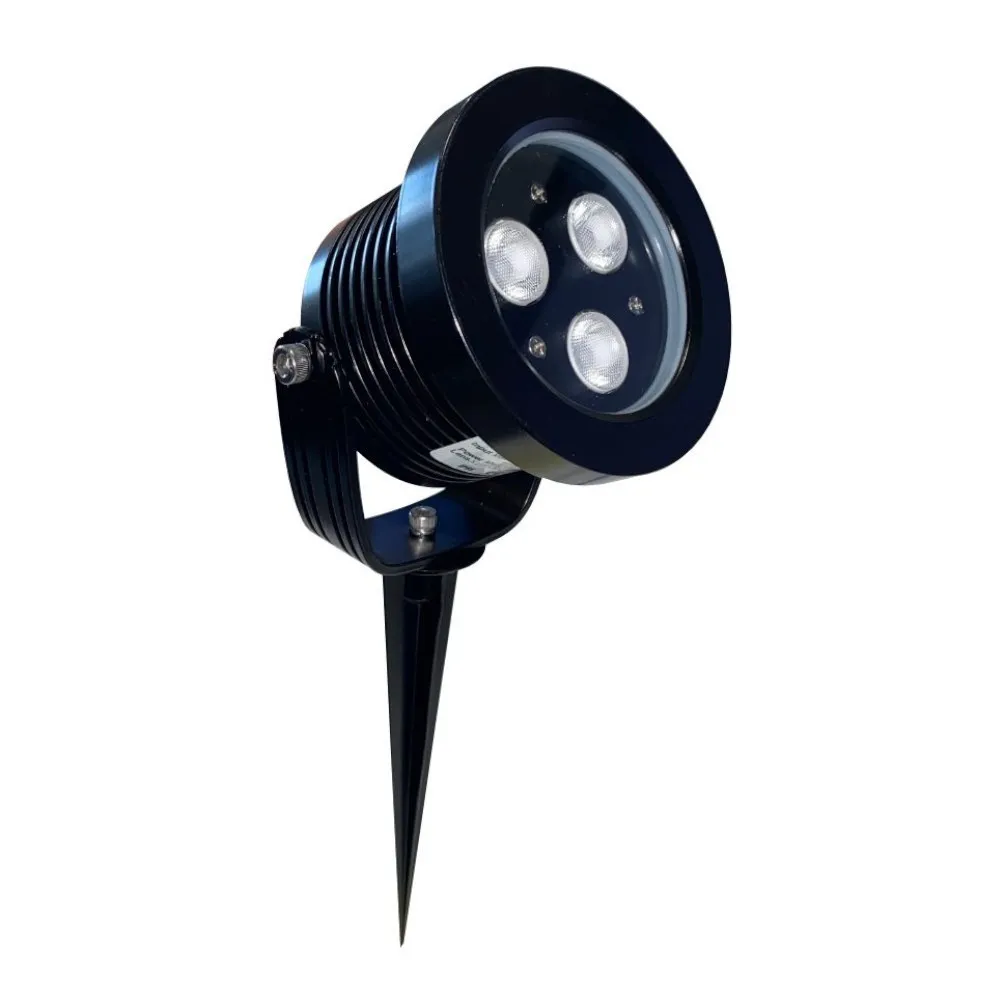

PICO LED OUTDOOR SPOTLIGHT (12-24V) - LCAP-PICO12-24V9W-4000K

Name: PICO LED OUTDOOR SPOTLIGHT (12-24V) - LCAP-PICO12-24V9W-4000K
Brand: LEDCO
SKU: LCAP-PICO12-24V9W-4000K
Price: 101.97 CAD
Availability: InStock

SKU: LCAP-PICO12-24V9W-4000K

Brand: LEDCO

Give your trees, stonework and entrance the kind of glow that makes people slow down in front of your house. The PICO LED OUTDOOR SPOTLIGHT (12-24V) is a compact low-voltage LED landscape light built to aim, accent and dramatize — the little outdoor garden light that does the heavy lifting in a full LED landscape lighting plan. Homeowners call it a garden spotlight, a bullet light or an uplight; contractors simply call it the workhorse of the flowerbed. Its adjustable head and included aluminum spike let you push it into soil in seconds, swing the beam onto a maple trunk, a brick column, a flag or a storefront sign, and walk away knowing it will still be pointed there next spring.

This is the 4000K neutral white version, SKU LCAP-PICO12-24V9W-4000K, drawing just 9 watts for 900 lumens of punchy, clean light. It runs on 12V - 24V DC, so wiring stays low-voltage and friendly to work with, and it is dimmable when paired with a compatible driver or controller. The tight 40º projection angle keeps the beam where you aim it instead of spilling into the neighbour's window, while the IP65 sealed black body handles rain, sprinklers and slush. It is rated for an operating temperature of -25ºC to +60ºC — real Canadian numbers, not wishful thinking — and delivers a 30 000 hour lifespan backed by a 2 year warranty. Compact at 168mm / 6.614" tall with a 45mm / 1.772" head.

It shines on driveways, front-yard maples, cedar hedges, retaining walls, pool decks, restaurant patios, hotel grounds and commercial signage — anywhere you want depth after sunset through a long Québec or Ontario winter. Because it is a low-voltage fixture, it needs a transformer: pair a run of PICO spots with the Luvia 100W outdoor power supply, mix in the softer Scoop landscape lighting (12-24V) for path washes, or step down to the Pico LED outdoor spotlight 3W version for smaller shrubs. Plan your layout, plug in, aim at dusk — then enjoy the view.

Sub-titles included below.

Built for permanent outdoor duty
The PICO is a sealed, corrosion-resistant outdoor spotlight designed to stay outside year-round, not to be pulled in every October. The black housing and IP65 protection rating shrug off rain, lawn sprinklers, road salt spray and freeze-thaw cycles, and the fixture is certified to operate from -25ºC to +60ºC. Efficient thermal management keeps the LED module cool through long winter nights when the light runs fourteen hours straight, which is what protects both light output and colour consistency over the years. The included aluminum spike pushes into soil, mulch or a planter without tools, and the adjustable head lets you set the aim precisely and lock it there.

Light quality and beam control
At 4000K neutral white, this version renders foliage crisp and green, makes grey stone and concrete look clean and modern, and keeps white trim genuinely white instead of yellow. The 40º projection angle is a true accent beam: wide enough to wash a tree trunk or a column from base to canopy, tight enough to avoid glare into windows and off the property line. With 900 lumens from only 9 watts, you get serious punch for very little load — meaning more fixtures on a single low-voltage run and far less energy than the old halogen well lights it replaces.

Technical specifications
SKU: LCAP-PICO12-24V9W-4000K
Voltage: 12V - 24V DC
Consumption: 9 Watts
Light intensity: 900 Lumens
Colour temperature: 4000K
Projection angle: 40º
Dimmable: Yes
Protection rating: IP65
Colour: Black
Aluminum spike: Yes
Operating temperature: -25ºC ~ +60ºC
Lifespan: 30 000 Hours
Warranty: 2 years
Dimensions: 168mm / 6.614" high, 138mm / 5.433", 99mm / 3.898", 45mm / 1.772"

Wiring, dimming and compatibility
Because it accepts 12V - 24V DC, the PICO needs a low-voltage power supply sized to the total wattage of your run — the Luvia 100W outdoor power supply is the natural match for a multi-fixture garden layout. The fixture is dimmable with a compatible dimmer or controller installed on the driver side, and it works with a timer or photocell so the yard lights itself at dusk. Use waterproof connectors at every tap, and leave a loop of slack at each fixture so you can reposition it as plantings grow. Mixing fixture types is where a design comes alive: add the Scoop landscape lighting (12-24V) for low path and step washes, the Luna LED outdoor light for soft accents, or the Pico LED outdoor spotlight V2 where a smaller output suits the plant.

Applications and documentation
Typical jobs: uplighting a row of cedars along a driveway, grazing a stone or brick façade to bring out texture, lighting a business sign or house numbers, adding depth to a pool deck, a restaurant terrace or a hotel entrance, and highlighting flagpoles or architectural columns. Contractors like that several units can be linked on a single run for a cohesive, layered scheme with one transformer. Before you bury cable, set the fixtures in place, power them up after dark, adjust every aim, then secure the spikes. The full technical spec sheet with the dimensional drawing is available in the Documentation tab of this page.
