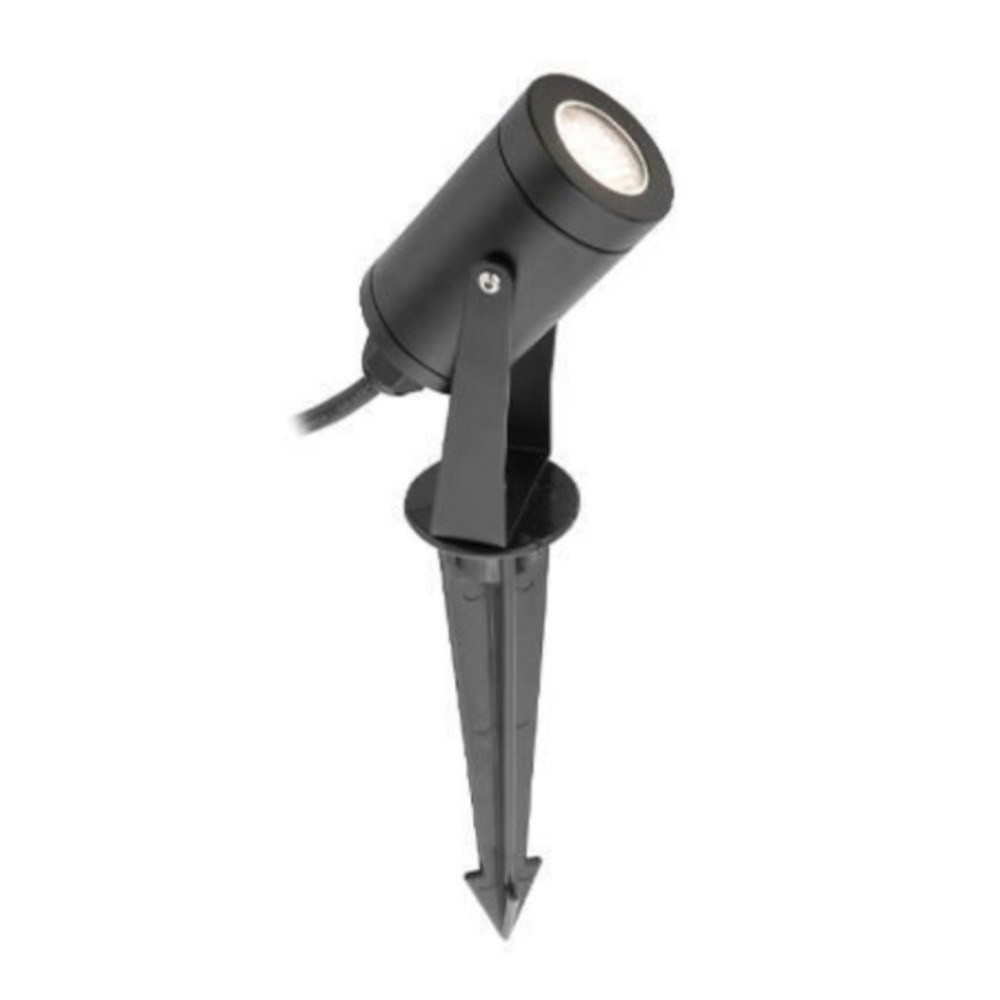

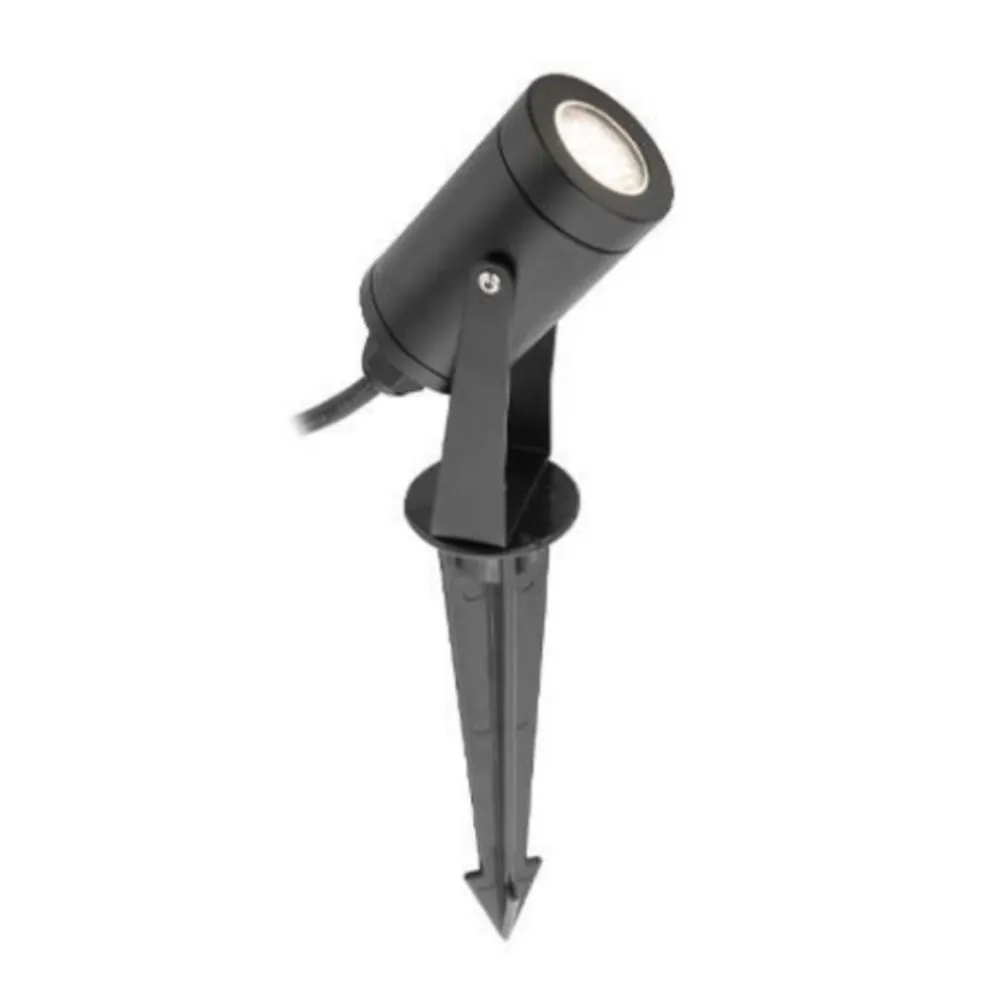

PICO LED OUTDOOR SPOTLIGHT - LCAP-PICO12-24V3W-4000K

Name: PICO LED OUTDOOR SPOTLIGHT - LCAP-PICO12-24V3W-4000K
Brand: LEDCO
SKU: LCAP-PICO12-24V3W-4000K
Price: 67.97 CAD
Availability: InStock

SKU: LCAP-PICO12-24V3W-4000K

Brand: LEDCO

Some gardens only come alive after dark, and that takes a fixture built to aim light exactly where you want it. The PICO LED outdoor spotlight is a compact directional accent light — what people also call a LED landscape light, a garden spotlight or an uplight — designed to graze a stone or brick wall, wash a column, push light up through a mature maple, or make a business sign readable from the street. Its adjustable head lets you dial in the beam angle on site, while the small black housing stays visually quiet during the day, so what your guests notice is the effect, not the hardware. Whether you are lighting a front-yard bed, a cedar hedge, a patio wall or a storefront entrance, this is the little workhorse of outdoor garden lighting.

This model, SKU LCAP-PICO12-24V3W-4000K, runs on 12V - 24V DC low voltage, draws just 3 watts and delivers 300 lumens in a crisp 4000K neutral white — bright enough to define texture on masonry and foliage without turning the yard into a parking lot. The 45º projection angle gives a controlled, well-shaped beam for accent work, and the fixture is dimmable, so you can soften a scene for an evening on the deck. An IP65 protection rating and a rated operating range of -25ºC ~ +60ºC mean rain, irrigation spray, snow and freeze-thaw cycles are part of the job description. The black finish and the included aluminum spike make placement fast in soil or mulch, and the 30 000 hour lifespan plus a 2 year warranty back the install. Compact by design: 42mm / 1.654" and 38mm / 1.496" across the head, 85mm / 3.346" and 116mm / 4.567" of body, 168mm / 6.614" overall with the spike.

It shines in Canadian yards where the season is short and the evenings are long: tree uplighting in a suburban front yard, wall grazing on a Montréal greystone, path-side accents around a country property, and sign or facade lighting for restaurants, clinics and small shops. Because it is a low-voltage fixture, it pairs with a compatible outdoor transformer such as the Luvia 100W outdoor power supply, and mixes beautifully with soft-glow companions like the Scoop landscape lighting (12-24V) or the Luna LED outdoor light. Prefer a warmer glow? The same spotlight is offered in 3000K. Map your scene, plant your spikes and light up the yard you already love.

Built to live outside
The PICO is a small, sealed directional spotlight in a black finish, rated IP65 against dust and water jets — the level you want for a fixture sitting in a garden bed that gets rain, irrigation spray and snow load. It is rated to operate from -25ºC ~ +60ºC, which covers a real Canadian year from a January cold snap to a July heatwave on a south-facing brick wall. The head adjusts so you can set the tilt precisely on site, and the included aluminum spike lets you push the fixture straight into soil, mulch or a planter without brackets or concrete. Because the body stays compact, the fixture reads as a small dark object during the day and disappears behind hostas, shrubs or ornamental grasses.

Light quality and beam control
Each fixture produces 300 lumens from a 3 watt LED — a deliberate amount of light for accent work, where the goal is contrast rather than flood coverage. The 45º projection angle keeps the beam tight enough to hold a column, a tree trunk or a sign panel, and wide enough to graze texture across stone, stucco and brick. This SKU is the 4000K neutral white version: it renders masonry, aluminum and metal signage cleanly and keeps green foliage looking alive rather than yellow. The fixture is dimmable, so a scene set for a dinner party can be dropped back to a quiet late-night level using compatible dimming on the low-voltage system.

Technical specifications
Model: LCAP-PICO12-24V3W-4000K
Voltage: 12V - 24V DC
Consumption: 3 Watts
Light intensity: 300 Lumens
Colour temperature: 4000K (also offered in 3000K and RGB)
Projection angle: 45º
Protection rating: IP65
Operating temperature: -25ºC ~ +60ºC
Lifespan: 30 000 Hours
Dimmable: Yes
Colour: Black
Aluminum spike: Yes
Warranty: 2 years
Dimensions: 42mm / 1.654" and 38mm / 1.496" head, 47mm / 1.850", 85mm / 3.346", 116mm / 4.567", 168mm / 6.614"

Wiring, power and installation
This is a low-voltage DC fixture, so it must be fed from a suitable 12V - 24V DC supply sized for the total load of the run — with a 3 watt draw per head, a single outdoor power supply can carry a full accent layout. The Luvia 100W outdoor power supply is a natural match for feeding a LED landscape lighting circuit, and a low-voltage system is friendly to timers, photocells and smart plugs for automatic dusk-to-dawn operation. Practical tips: set the fixture back from the trunk or the wall rather than tight against it, test the aim after dark before you backfill, and leave a service loop of cable at every location so fixtures can be repositioned as plantings mature. Keep connections above grade in a protected splice where possible, and re-check the tilt each spring after the frost has moved the beds.

Applications, companions and documentation
Homeowners use it for tree uplighting, wall washing on stone and brick, lighting a house number or a garage facade, and defining steps and retaining walls. Contractors and small businesses reach for it for outdoor sign lights, patio and terrace accents, hotel and restaurant entrances, and flag or monument lighting. Mix it with wider, softer sources for depth: the Scoop landscape lighting (12-24V) for low glow along a walkway, the Luna LED outdoor light for ambient fill, or the Pico LED outdoor spotlight V2 where a second form factor suits the site. The full technical PDF for LCAP-PICO12-24V3W-4000K, with the dimensional drawing and the complete spec table, is available in the Documentation tab of this page.

Technical Files
