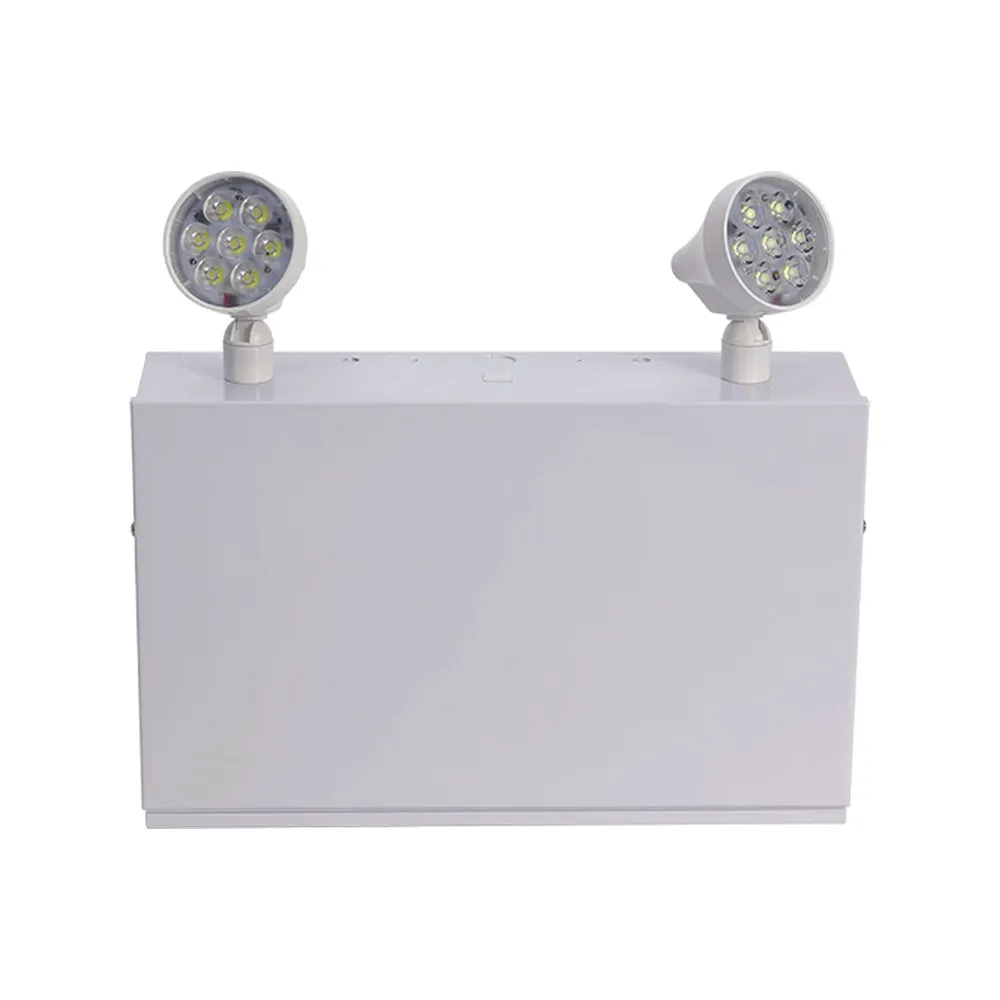

METAL BATTERY PACK (C/W 2X5W HEADS) 320W - 24VDC - 120/347V

Name: METAL BATTERY PACK (C/W 2X5W HEADS) 320W - 24VDC - 120/347V
Brand: TUROLIGHT
SKU: TL-EMRM-320W-24VDC-2-5W-120-347V
Price: 572.97 CAD
Availability: InStock

SKU: TL-EMRM/320W/24VDC/2-5W/120/347V

Brand: TUROLIGHT

When the power goes out, people need to see the exit — and that's exactly the job of this emergency lighting battery pack from TUROLIGHT. Often called an emergency light unit, a steel battery unit, an emergency remote pack or simply a "battery backup light", the TL-EMRM/320W/24VDC/2-5W/120/347V is the largest capacity in the TL-EMRM family: a wall-mounted steel battery pack that comes complete with two 5W LED heads and feeds additional remote heads when the building loses power. It's the unit specifiers reach for in bigger commercial layouts — long corridors, stairwells, warehouses, parking structures — where one central pack has to carry a serious load of remote emergency heads across several rooms.

This model delivers a 320W capacity on a 24VDC load voltage, with a universal 120/347V input so it drops into residential, commercial and industrial panels alike. The sealed lead-acid battery supports 30 minutes of emergency run time at the full 320W load, and the published runtime chart also shows 160W at 60 minutes, 106W at 90 minutes and 80W at 120 minutes — giving you real numbers to size your remote heads with. The housing is steel with a UL-94V-0 flame rating, fire-resistant, and measures 16.40" × 3.66" × 16.77" (L×W×H). A built-in test switch and charge indicator light make monthly inspections quick, it is IP20 and damp location rated (not intended for outdoor use), certified to CSA C22.2 No 141-15, operates from 5˚C to +35˚C, and is backed by a 1-year limited warranty.

This pack is made for offices, schools, retail stores, condo corridors, mechanical rooms, factories and any Canadian project where the electrical code calls for emergency egress lighting on 347V or 120V service. It ships with two 5W 6500K heads and is remote capable, so you can branch out to extra heads wherever the plan requires them — just remember the recommendation to load the pack 20% under its maximum, and keep wire runs short since gauge and length affect the actual load. Need a smaller capacity on the same platform? Look at the 144W 24VDC metal battery pack, the 140W 12VDC metal battery pack or the compact 34W LED emergency fixture. Spec your egress lighting with confidence — order yours today.

572.97$

Supplier availability: In stock (+50)

Learn more
Documentation

Built like emergency gear should be
The TL-EMRM platform is built around a steel housing with a UL-94V-0 flame rating, fire-resistant by design, because an emergency unit has to keep working when conditions in the building are anything but normal. At 16.40" × 3.66" × 16.77" (L×W×H), this 320W metal battery pack is the biggest case in the series and is intended for wall mounting. It carries a sealed lead-acid battery on a 24VDC load bus and arrives complete with two 5W LED heads rated 6500K — a crisp, clean white that reads clearly on floors, stair treads and exit paths during an outage.

Power, runtime and load planning
Input is 120/347V, so the same unit serves a residential-scale 120V panel or a 347V commercial and industrial distribution without changing product. Capacity is 320W for 30 minutes, the standard egress duration. The published emergency runtime chart for this model gives you the full picture: 320W at 30 minutes (155 heads at 2W or 62 heads at 5W), 160W at 60 minutes (75 at 2W, 30 at 5W), 106W at 90 minutes (48 at 2W, 19 at 5W) and 80W at 120 minutes (35 at 2W, 14 at 5W). Two notes from the manufacturer matter on site: actual wattage loads may be affected by the length and gauge of the wire runs used to connect the remote heads, and it is recommended to load the battery pack 20% under its maximum.

Technical specifications
SKU: TL-EMRM/320W/24VDC/2-5W/120/347V
Ordering code: 3466208
Brand: TUROLIGHT
Capacity: 320W
Load voltage: 24VDC
Input voltage: 120/347V
Battery: sealed lead-acid
LED heads included: 2 × 5W, 6500K
Emergency run time: 30 minutes
Housing: steel, UL-94V-0 flame rating, fire-resistant
Mounting: wall, remote capable
Rating: IP20, damp location
Certification: CSA C22.2 No 141-15
Operating temperature: 5˚C to +35˚C
Dimensions (L×W×H): 16.40" × 3.66" × 16.77"
Warranty: 1-year limited

Installation, testing and where it fits
Mount the pack on the wall near the area to be protected, wire the 120V or 347V supply, then run your remote emergency heads off the 24VDC output. The built-in test switch and charge indicator light let a facility manager or electrician run the periodic test in seconds and confirm the battery is charging — no ladder gymnastics, no guessing. Remember this unit is IP20, damp location rated and not intended for outdoor use, and that it needs an ambient between 5˚C and +35˚C, so an unheated loading dock or an exposed exterior wall is not the right home for it in a Canadian winter. Typical applications: warehouse aisles, manufacturing floors, school corridors, office towers on 347V, underground parking, gyms and retail back-of-house.

Family, alternatives and documentation
The TL-EMRM series is ordered by wattage and load voltage, and every model ships with the same 2 × 5W head configuration. If 320W is more capacity than your plan needs, the 144W 24VDC unit shares the same 24VDC bus, while the 72W 12VDC pack, the 95W 12VDC pack and the 34W steel battery unit with 3 ft cord cover smaller rooms and single-corridor jobs. The complete technical PDF for this SKU, including the dimensional drawing, the ordering guide and the full emergency runtime chart, is in the Documentation tab of this page.
