DC ADAPTER WITH 2 STRAND FLAT WIRES

Name: DC ADAPTER WITH 2 STRAND FLAT WIRES
Brand: LED MONTREAL
SKU: WSCDC
Price: 1.97 CAD
Availability: InStock

SKU: WSCDC

Brand: LED MONTREAL

Ever had a brand-new LED strip, a power supply and a controller sitting on the bench with no clean way to join them together? That is exactly the little headache the MALE DC ADAPTER WITH 2 STRAND FLAT WIRES (SKU WSCDC) was made to solve. Also known as a DC pigtail connector, DC barrel adapter with leads, or simply a wire-to-barrel plug, it is the small accessory that turns loose wires into a fast, tidy plug-and-play connection. This male adapter lets you feed your 12V power source into an RGB controller or build a short DC extension between your power supply and your controller. If you work with LED strip lighting on a regular basis, these are the parts you want in the toolbox before you climb the ladder, not after.

Keep it simple and keep it correct: this adapter uses a 5mm DC connector, the standard barrel size found on most low-voltage LED strip power supplies and controllers, and it comes with 2 strand flat wires for an easy, low-profile run. Total length including the wires is 15cm, just enough slack to reach a terminal block, a driver output or a dimmer input without leaving a messy loop behind the cove. The adapter is available in white, so you can hide it against a white ceiling channel or a cabinet interior.

From kitchen under-cabinet lighting and cove ceilings in a Montréal condo to display cases, shelving and signage in a boutique or a restaurant, this connector shows up on just about every low-voltage job. It is suitable for residential and commercial projects, and it pairs naturally with DC connectors for single colour LED strips, with 12V power supplies, with inline dimmers and with RGB controllers that use a 5mm barrel input. Contractors love keeping a handful in the van; homeowners love finishing a strip install without stripping and twisting wires under the counter. Add it to your LED strip order, and wire your next project the easy way.

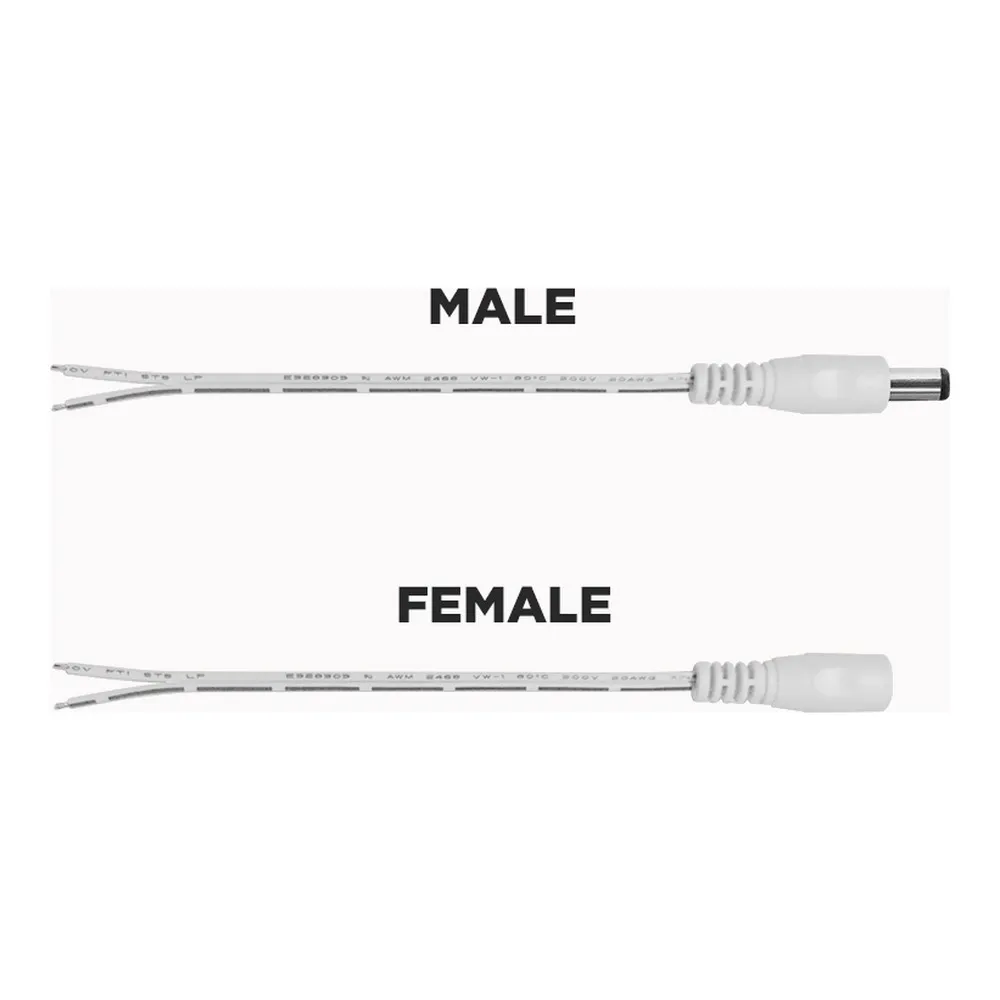

Available in white or black, as a male or female connector: choose the ones you need in the menus above before adding to cart.

What this adapter actually does
Low-voltage lighting lives and dies by its connections. A 12V power supply usually ends in a barrel plug or a pair of bare leads, an LED strip ends in solder pads or a snap connector, and a dimmer or RGB controller sits somewhere in between with its own barrel jack. The MALE DC ADAPTER WITH 2 STRAND FLAT WIRES bridges those worlds. The male adapter works like this: two wires in, a barrel plug out, ready to slide into an RGB controller or a driver jack. One very common problem solved.

Technical specifications
SKU: WSCDC
Brand: LED MONTREAL
Type: Male DC adapter with 2 strand flat wires
DC connector type: 5mm
Total length including wires: 15cm
Colour: White
Use: residential and commercial projects

Wiring and installation tips
Work with the power supply unplugged, always. Identify polarity before you connect anything: on a single colour LED strip, positive and negative are marked on the copper pads, and reversing them simply means the strip will not light. Strip a short length of each of the two flat wires, land them on your strip solder pads, on a screw terminal or into a quick connector, then push the barrel home until it seats. The 15cm total length is deliberately short so the joint stays close to the connection point and disappears inside a channel, behind a valance or above a cabinet. If you need more reach, build a clean DC extension between the power supply and the controller rather than splicing mid-run.

Compatibility and system building
This adapter is built around the 5mm barrel standard used by most low-voltage LED accessories, which makes it an easy match for 12V power supplies, inline dimmers and RGB controllers with a barrel input. It can also be used in conjunction with the DC connectors for single colour LED strips, so a full run can be assembled without soldering: strip connector at the tape, DC adapter at the driver, done. Use it when you need to plug into a controller or driver jack. Buying a few is the simplest way to stay ready for whatever the site throws at you.

Where it earns its keep
Think kitchen under-cabinet runs, toe-kick and cove lighting, closet and pantry shelving, home theatre backlighting, bathroom vanity accents, and on the commercial side retail display cases, cooler shelving, reception desks, bar fronts and signage. Anywhere a 12V LED strip meets a driver or a dimmer, this little connector keeps the job neat, serviceable and easy to modify later. No documents are listed for this accessory, which is normal for a small connector; if you are unsure, look at the plug already on your power supply or controller: it should be the opposite gender.

Available in white or black, as a male or female connector: choose the ones you need in the menus above before adding to cart.
