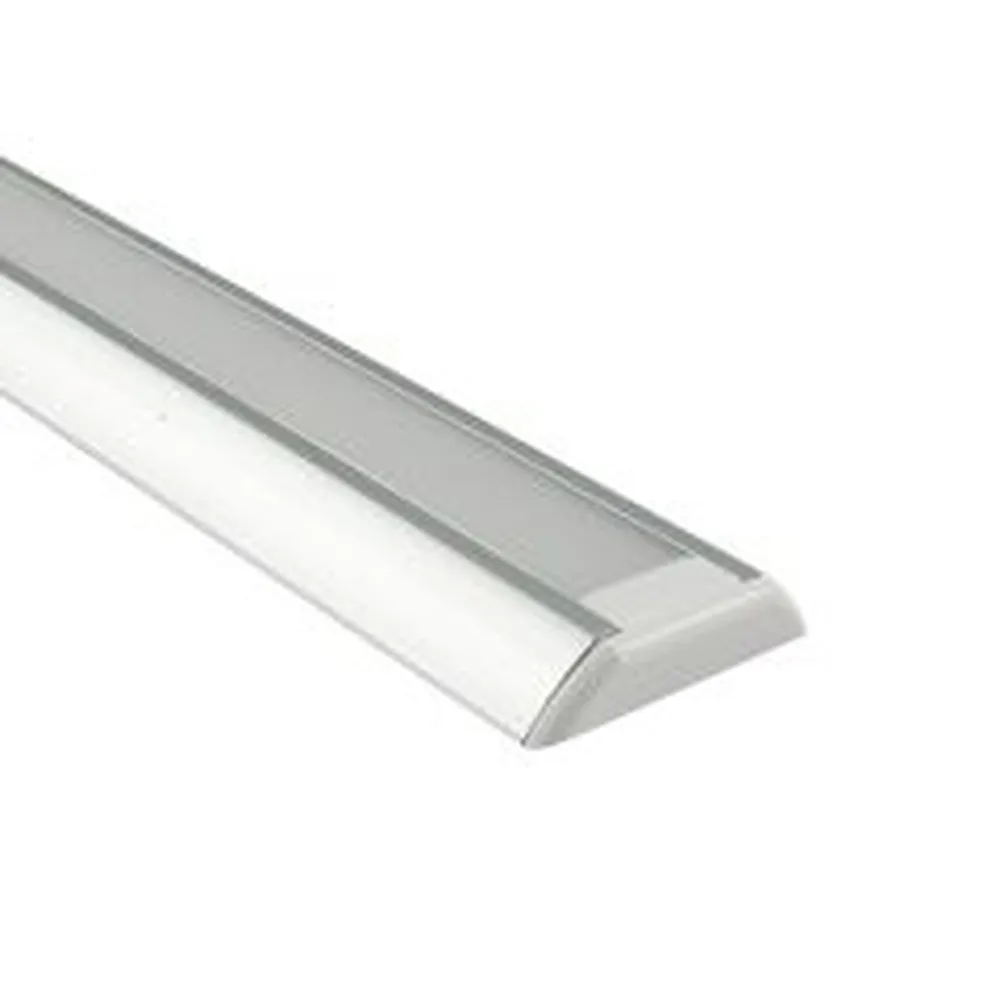

LL11-15-16 - FROSTED LENS FOR ALUMINUM CHANNEL, 2M (6.56') LENGTH

Name: LL11-15-16 - FROSTED LENS FOR ALUMINUM CHANNEL, 2M (6.56') LENGTH
Brand: LUMENSTARLED
SKU: LS-LL11-15-16-FR-L2
Price: 16.97 CAD
Availability: InStock

SKU: LS-LL11-15-16-FR-L2

Brand: LUMENSTARLED

Give your LED strip the smooth, seamless glow it deserves. This is the frosted lens for the LL11-15-16 aluminum channel, a 2M (6.56') diffuser cover made to slide straight into its matching LED aluminum profile. People call it a lot of things — diffuser, cover, lens, snap-in cover for an aluminum extrusion — but the job is always the same: hide the diodes, soften the light and finish the run like a pro. If you have ever installed a beautiful tape light only to see a row of hot dots staring back at you, this is the part that fixes it. It turns a raw strip into a clean, continuous line of light for under-cabinet lighting, shelving, stair accents, cove details, mirror surrounds and display cases.

The lens is the Frosted lens style specified for the LS-LL11 low surface LED aluminum profile, a surface-mount extrusion made of anodized aluminum measuring W30 x H7mm (W1 3/16 x H9/32"). Lengths available for the system are 1M (40") and 2M (80") — this one is the 2M (6.56') piece, long enough to cover medium and large linear runs with fewer joints and fewer visible seams. Because it is frosted rather than clear, light is scattered across a wider angle, which knocks down glare and blends individual LED points into one even band. It presses into the channel and comes back out just as easily when it is time to service the strip, so no adhesives, no extra hardware, no fuss. The profile itself is compatible with 3528 solderless connectors, which keeps your wiring tidy inside the same assembly.

This is a favourite for kitchen renovations across Canada — toe-kicks, upper cabinets, pantry shelving — and just as strong in retail displays, reception desks, bars, hotel corridors and basement stairs where the light sits near eye level. Contractors like that a 2M piece can be cut down on site with a fine-tooth blade for shorter segments, and designers like that the finished line reads as architecture, not as a strip of tape. To be clear on fit: this lens is made for the LL11-15-16 / LS-LL11 aluminum channel and for LED strips that live inside that profile — order it with the matching channel and end caps for a complete system. Ready to finish your run properly? Add SKU LS-LL11-15-16-FR-L2 to your project list and give your light a surface worth looking at.

Compatible with
Works with:
Channel / profile: LS-LL11-AL-L1, LS-LL11-AL-L2, LS-LL11-L1, LS-LL11-L2, LS-LL15-AL-L1, LS-LL15-AL-L2, LS-LL15-L1, LS-LL15-L2

What this part actually is
Every good linear LED installation is really three pieces: the strip, the channel and the lens. This is the third piece — the frosted diffuser for the LS-LL11 low surface profile, supplied in a 2M (6.56') length. The channel is the structure and the heat path; the lens is the face your client sees. Frosted material spreads the output of the diodes before it leaves the fixture, so instead of a dotted line you get a soft, continuous band. It also protects the tape from dust, fingerprints and the occasional bump, which matters more than people expect under cabinets and along stair nosings.

Technical specifications
Product code: LS-LL11
SKU: LS-LL11-15-16-FR-L2
Brand: LUMENSTARLED
Lens style: Frosted
Profile type: Low surface LED aluminum profile
Installation: Surface mount
Material: Anodized aluminum (profile)
Dimensions (LxWxH): W30 x H7mm (W1 3/16 x H9/32")
Lengths offered: 1M (40"), 2M (80") — this item: 2M (6.56')
Compatible solderless connectors: 3528
Compatible strips: except Indoor & MP Flex

Fit and compatibility
This lens belongs to the LL11-15-16 aluminum channel family and is not a universal cover — width and snap geometry are matched to that extrusion, which measures W30 x H7mm (W1 3/16 x H9/32"). The profile accepts LED strips that fit inside those dimensions, with the exception of Indoor & MP Flex strips, and works with 3528 solderless connectors for clean, tool-light terminations. If you are building a longer run, order multiple 2M sections plus the matching channel and end caps so the joints land where they are least visible — ideally over a cabinet seam, a corner or a structural break.

Installation notes from the field
The lens press-fits into the top of the channel: start at one end, walk it in with steady thumb pressure and it seats along the full length. No glue, no screws, no clips to lose. For a shorter segment, cut the lens with a fine-tooth blade and de-burr the edge so it slides in without catching — and cut the lens and the aluminum extrusion together to the same length so the end caps close flush. Because the lens comes back out without damage, relamping or swapping a tape years from now is a five-minute job instead of a demolition. Mount the channel first, run and connect the strip, test it, then close the lens last: it is the easiest way to avoid trapping dust or a twisted tape under the diffuser.

Where it earns its keep, and documentation
Think of every place where people see the light source before they see the light: under upper cabinets in a kitchen, along floating shelves, inside a display case, around a bathroom mirror, under a bar rail, on stair stringers, behind a reception counter or down a hotel corridor. In all of those, a clear cover shows dots and a frosted one shows a line — and that difference is what makes a job look designed. Homeowners get a warm, even glow with no hot spots; contractors get a repeatable detail they can install the same way on every project; small businesses get a display that flatters merchandise instead of distracting from it. The technical PDF for the low surface LED aluminum profile (LS-LL11) is available in the Documentation tab of this page for dimensions and compatibility details before you specify.
