LL11 STANDARD (6.56') 2M FROSTED (BOM)

Name: LL11 STANDARD (6.56') 2M FROSTED (BOM)
Brand: LUMENSTARLED
SKU: LS-LL11-L2
Price: 50.97 CAD
Availability: InStock

SKU: LS-LL11-L2

Brand: LUMENSTARLED

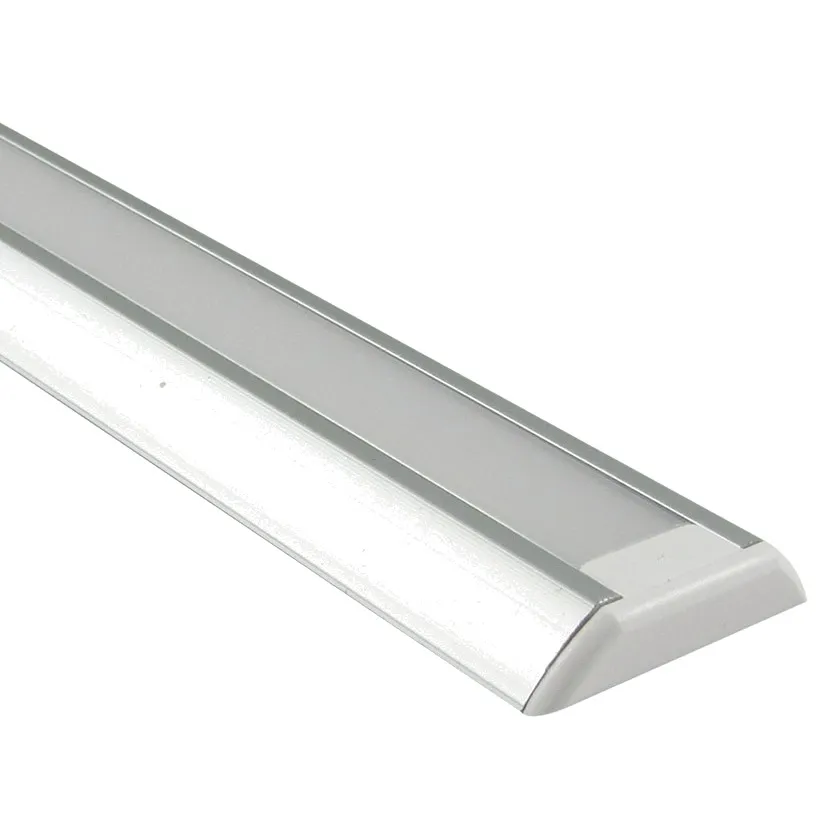

Give your LED strip the clean, finished look it deserves with the LumenstarLED LL11 Standard 2M Frosted aluminum profile (SKU: LS-LL11-L2). People search for it under a lot of names — LED strip channel, LED extrusion, aluminum track for LED tape, surface mount LED profile, or simply "LL11" — but it all comes down to the same thing: a low-profile surface mount housing that holds your strip straight, protects it, and turns a line of visible diodes into one smooth ribbon of light. It ships in a complete BOM (Bill of Materials) configuration, so the parts you need to mount it come in the box and your installer isn't hunting for bits halfway through the job.

The profile is built from anodized aluminum, a material chosen for good reason: it stays rigid over long runs, resists scuffs and fingerprints, and acts as a heat sink that pulls warmth away from the LED tape, which helps your ruban LED-style strip keep its colour and brightness over time. The frosted lens is the star of the show — it diffuses the light so you see a continuous glow instead of a row of hot dots, which is exactly what you want at eye level or on any surface people look at directly. This version measures 2M (80"), and the extrusion profile is a slim W30 x H7 mm (W1 3/16 x H9/32"), low enough to disappear against a ceiling, a shelf edge or a cabinet. The LL11 accepts most LED strips (except Indoor and MP Flex tape) and works with 3528 solderless connectors, so joining runs and feeding power stays simple. The same profile is also offered in a 1M (40") length when you need shorter sections.

This is the profile Canadian homeowners and contractors reach for in kitchens, under upper cabinets, along stair nosings, in closets, cove ceilings, retail display cases, reception desks and office corridors. Because it mounts on the surface, there's no channel to rout out of the drywall or millwork — a real advantage in renovations where you're working with finished walls. Pair it with your choice of compatible LED tape light and a driver, cut the run to fit, and you've got a professional linear detail in an afternoon. Check the Documentation tab for the technical PDF, and build your run with the LL11 Standard Frosted today.

Built from anodized aluminum
The LL11 body is extruded anodized aluminum, and that matters more than it sounds. Anodizing hardens the surface so the channel shrugs off handling marks during installation and keeps a clean, even appearance for years. Just as importantly, aluminum conducts heat: the profile draws thermal energy away from the LED tape bonded inside it. LED strips that run cooler hold their light output and colour consistency longer, which is why a bare strip stuck straight to drywall rarely ages as gracefully as one mounted in a proper LED strip channel. With a cross-section of W30 x H7 mm (W1 3/16 x H9/32"), the extrusion is wide enough to seat the tape comfortably and shallow enough to stay visually discreet.

Frosted lens, no more dots
The lens style on this model is frosted, and it's the single biggest upgrade over exposed tape. Instead of seeing individual diodes, you see a continuous band of soft light. That diffusion is what makes linear LED lighting look intentional and architectural rather than improvised — essential under cabinets where the strip reflects off a countertop, along a handrail, in a display case, or anywhere someone will look directly at the fixture. The frosted diffuser also softens shadows on the work surface below, a real comfort win for kitchen prep zones and workbenches.

Technical specifications
SKU: LS-LL11-L2
Product code: LS-LL11
Brand: LumenstarLED
Length: 2M (80") — 6.56 ft
Available lengths in the series: 1M (40"), 2M (80")
Dimensions (W x H): W30 x H7 mm (W1 3/16 x H9/32")
Installation: surface mount
Material: anodized aluminum
Lens style: frosted
Compatible strips: all except Indoor & MP Flex
Compatible solderless connectors: 3528
Configuration: BOM (Bill of Materials)

Installation and compatibility
The LL11 is a surface mount profile, so it fastens directly to the substrate — no routing, no drywall cutting, no ceiling demolition. That makes it the practical choice for retrofits and renovations where the finishes are already in place. It accepts most LED tape with the exception of Indoor and MP Flex strips, and it pairs with 3528 solderless connectors, which let you make power feeds and corner jumps without a soldering iron on site. Plan your layout first: measure the run, position the driver where you can reach it for service, and keep connector points accessible. Multiple 2M sections can be installed end to end for longer runs, and the 1M (40") version of the same profile is handy for finishing off a wall or a short cabinet bank. Note that the strip, driver and controls are selected separately, which is what makes this profile so flexible — you choose the colour temperature and brightness that suit the room.

Where it earns its keep
In homes, the LL11 Standard Frosted is a favourite for under-cabinet lighting, toe-kick accents, floating shelves, closet interiors, stair and hallway guidance, cove ceilings and basement renovations. In commercial work, it handles retail shelving and display cases, reception desk fronts, office corridors, salon and clinic millwork, and restaurant bar backs. Because the aluminum body is rigid, it also does a clean job of bridging longer spans where flexible tape alone would sag or wander. Full details on dimensions, lens style and compatibility are in the technical PDF (LOW SURFACE LED ALUMINUM PROFILE) available in the Documentation tab of this page — worth downloading before you order your strip and connectors so everything matches on the first try.

Technical Files
