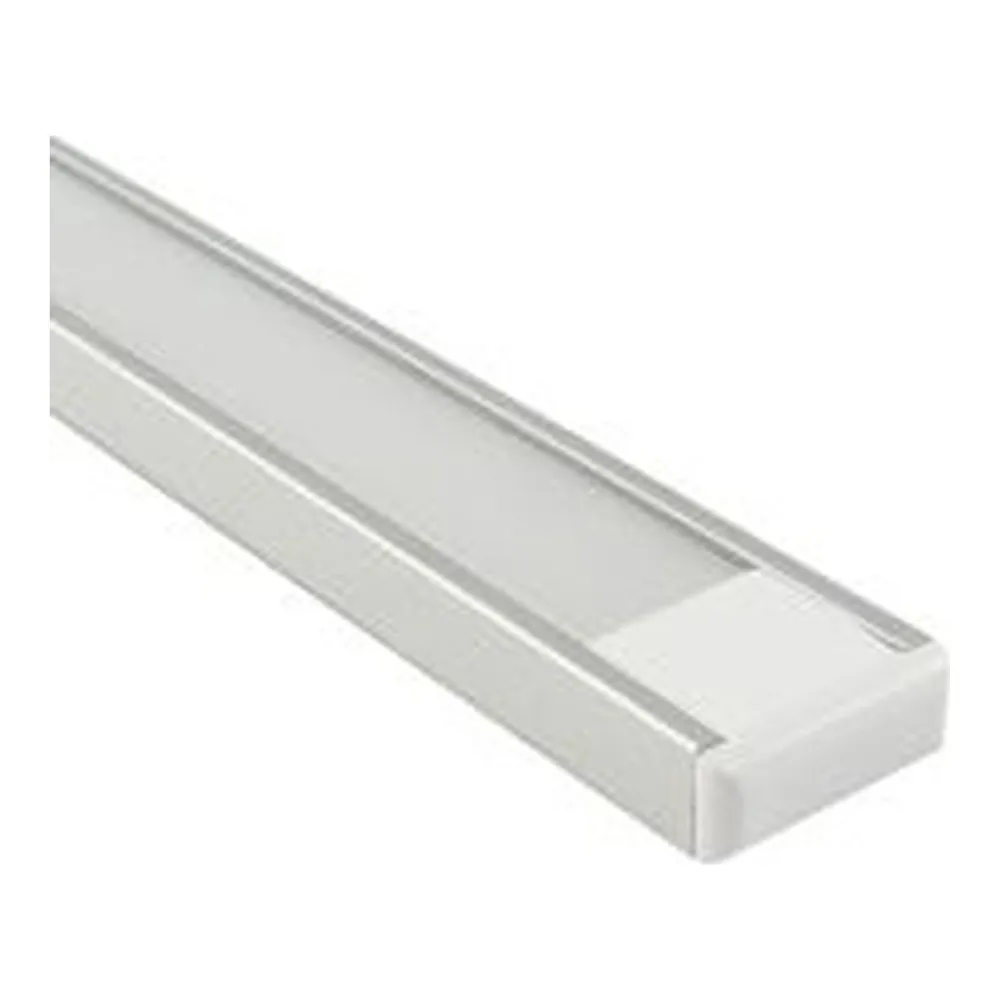

LL10 - SLIM RECESSED ALUMINUM CHANNEL FOR LED FLEXIBLE STRIP, 2M (6.56') LENGTH

Name: LL10 - SLIM RECESSED ALUMINUM CHANNEL FOR LED FLEXIBLE STRIP, 2M (6.56') LENGTH
Brand: LUMENSTARLED
SKU: LS-LL10-AL-L2
Price: 36.97 CAD
Availability: InStock

SKU: LS-LL10-AL-L2

Brand: LUMENSTARLED

Some of the best lighting is the kind you never actually see — and that's exactly what the LUMENSTARLED LL10 delivers. This slim recessed aluminum channel for LED flexible strip is the piece that turns a loose roll of tape light into a clean, built-in line of illumination. Searched under many names — aluminum extrusion for LED strip lights, LED profile, extruded aluminum track, or simply a channel for LED strip lighting — it drops into a routed groove so the strip disappears into the surface and only the glow remains. Cabinetmakers use it under counters and inside shelving, contractors run it along stair treads and cove details, and designers hide it in media walls and headboards. If you've ever seen a warm line of light with no visible fixture, there was a profile like this one behind it.

The LL10 ships in a 2M (6.56') length — listed as 2M (80") on the spec sheet — and measures W15 x H6mm (W19/32 x H15/64"), the same figures you use for your router dimensions, so the groove and the profile match perfectly the first time. The body is anodized aluminum, which does double duty: it looks sharp and it pulls heat away from the LED tape, and cooler strips simply hold up better over time. Installation can be recessed or surface mount, lens style is offered in frosted or opaque for soft, even diffusion instead of a row of visible dots, and the channel accepts production lead or solder solderless connections. Model code LS-LL10-AL-L2. Cut it down with standard metalworking tools, or join several end to end for a longer continuous run.

This is a workhorse for Canadian kitchens, basements, condos, boutiques, restaurants and offices — anywhere a recessed LED profile gives a renovation that finished, architectural look. It's built to house standard LED flexible strips; per the spec sheet, compatible strips are Except, Indoor and MP Flex. End caps, mounting clips and diffuser covers are sold separately so you can finish the run exactly the way your project calls for. Plan your groove, order the number of 2M sections your run needs, and get that clean line of hidden strip lighting you've been picturing.

Sold separately
To complete the installation, add:
End cap: LS-LL10-EC

Built from anodized aluminum for a reason
The LL10 profile is extruded from anodized aluminum, the material lighting pros reach for when a strip has to last. Beyond the crisp, uniform finish, the extrusion works as a heat sink: LED flexible tape mounted directly to drywall, wood or plastic traps its own heat, while an aluminum channel draws it away along the full length of the run. That's the single biggest reason an aluminum extrusion belongs on every serious LED strip lighting installation, not just the ones where looks matter.

Technical specifications
Product code: LS-LL10
SKU: LS-LL10-AL-L2
Brand: LUMENSTARLED
Installation: Recessed, Surface mount
Router dimensions: W15 x H6mm (W19/32 x H15/64")
Dimensions (LxWxH): W15 x H6mm (W19/32 x H15/64")
Lengths available: 1M (40"), 2M (80") — this SKU is the 2M (6.56') length
Material: Anodized aluminum
Lens style: Frosted, Opaque
Compatible strips: Except, Indoor & MP Flex
Compatible solderless connections: Production lead or solder

Light quality and diffusion
A bare strip shows every diode, and in a kitchen or a display case those hot spots are the first thing the eye catches. Slipping the tape into the LL10 with a frosted or opaque lens blends the diodes into one continuous band of light. The slim 6 mm height keeps the profile subtle in a routed groove, and because the light exits through a single controlled aperture, you get a cleaner beam on the countertop, the stair nosing or the wall wash instead of glare bouncing everywhere.

Installation and compatibility
Route your groove to W15 x H6mm (W19/32 x H15/64") and the channel sits flush with the surface; alternatively, mount it on top of the substrate for a surface-mounted LED profile look. The extrusion cuts cleanly with standard metalworking tools, so odd cabinet widths and stair runs are no problem, and multiple 2M sections can be butted end to end for long continuous lines. Feed it with strips listed as compatible — Except, Indoor and MP Flex — and terminate with production lead or solder connections. End caps, mounting clips and diffuser covers are sold separately and complete the finished assembly. Always plan where the driver and the feed wire will exit before you cut the groove; that one step saves the most headaches on site.

Where it earns its keep, and what to download
Think under-cabinet task light in a kitchen reno, toe-kick and stair-tread lighting in a basement build, cove lighting in a living room ceiling, shelf lighting in a retail display, backlit reception desks in an office, and headboard or millwork accents in a hotel room. Contractors like that one part number covers both recessed and surface applications across a whole job. The full technical PDF, SLIM RECESSED LED ALUMINUM PROFILE, is available in the Documentation tab of this page — keep it handy for the router dimensions when you're at the shop.

Technical Files
