LED LANDSCAPE UPLIGHT WITH STAKE, 12V AC/DC, 6W, 45°, OUTDOOR RATED, 36" (90CM) 27K

Name: LED LANDSCAPE UPLIGHT WITH STAKE, 12V AC/DC, 6W, 45°, OUTDOOR RATED, 36" (90CM) 27K
Brand: LUMENSTARLED
SKU: LS-SGUL-6W-27K
Price: 72.97 CAD
Availability: InStock

SKU: LS-SGUL-6W-27K

Brand: LUMENSTARLED

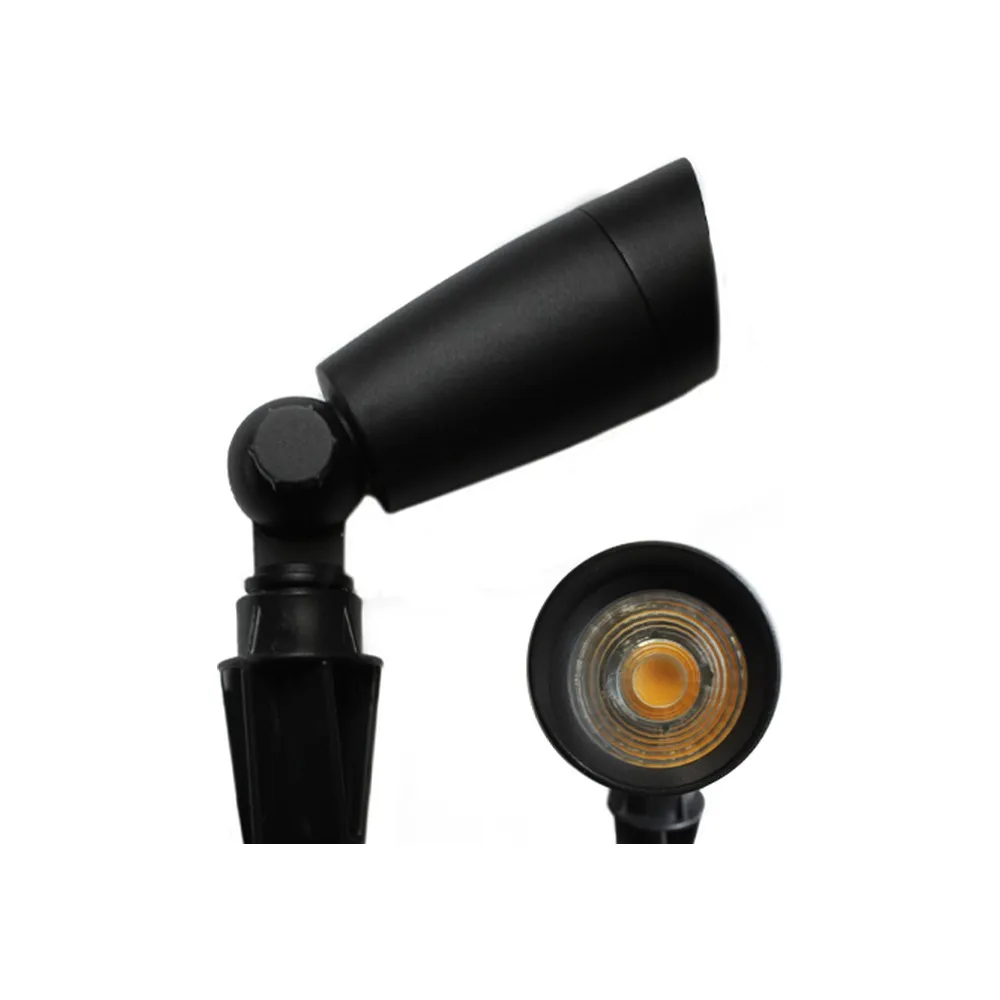

Give your trees, stone walls and garden beds the kind of glow that makes people slow down when they walk past. The LumenstarLED Lennox LED Spotlight, sold here as LS-SGUL-6W-27K, is a low-voltage LED landscape uplight with an included ground stake — the fixture most people are looking for when they search for LED landscape lighting, garden light outdoor, outdoor sign lights or simply landscape LED lights. It pushes a clean, controlled beam upward onto whatever you want to show off: a mature maple, a cedar hedge, a fieldstone chimney, a house number sign, a flagpole or a garden sculpture. Push the stake into the bed, aim it, and the architecture of your yard suddenly exists after dark.

This is a 6W fixture running on 12V AC/DC low-voltage power, producing 485 lumens of warm 2700K light with a CRI of more than 85, so bark, brick and foliage keep their real colour instead of going grey. It ships with a 40° floodlight lens installed, plus an extra 15° spotlight lens and a white filter in the box, so you can change the beam on site without changing the fixture. The housing is die-cast aluminum in a black powder-coat finish, it is IP67 rated for wet locations, it operates from -25 to +45°C (-4 to 113°F) and it is rated for over 50,000 hours, backed by a 3-year warranty. The adjustable knuckle gives up to 90° of vertical rotation, the threaded 1/2 in knuckle accepts the included ground stake or the optional wall-mount plate, the lead wire measures 40" (100cm), and the fixture is dimmable with compatible low-voltage dimming systems.

From a Vancouver courtyard to a Québec country driveway, this uplight handles snow load, spring runoff and summer UV without drama, and the stake mount means you can move it as the planting grows in. It's a favourite for residential front yards, condo landscaping, restaurant patios, boutique storefronts and monument or sign lighting. Pair it with a 12V power supply sized to your total load, outdoor-rated gel marettes and 16-2 or 12-2 outdoor wire, or go further and dim and schedule whole zones with the Casambi 4-channel PWM control. Build your layered outdoor lighting scheme one stake at a time — start with this one.

Built for real Canadian weather
The Lennox LED Spotlight is built around a die-cast aluminum housing with a black powder-coat finish, a combination chosen because it sheds heat well and stands up to years of rain, irrigation spray and freeze-thaw cycles. It carries an IP67 rating for exterior wet-location use and an operating temperature range of -25~+45°C (-4~113°F), which covers most of what a garden in this country throws at a fixture. The compact 4" (102mm) by 2" (50mm) body keeps it visually quiet in a planting bed, while the adjustable knuckle mount allows up to 90° of vertical rotation so you can fine-tune the aim once the fixture is in the ground and the light is on.

Light quality and beam control
An integrated COB LED engine delivers 485 lumens at 6 watts in a warm 2700K colour temperature, the tone most landscape designers prefer because it flatters bark, stone, cedar and brick instead of washing them out. With a CRI of more than 85, colours read naturally after dark. What really sets this LED uplight apart is the interchangeable optics: it arrives with the 40° floodlight lens fitted, and the box also contains a 15° spotlight lens and a white filter. That means one fixture can wash a wide wall, tighten to a narrow shaft up a tree trunk, or soften to a diffused glow — decided on site, not at the order desk. Custom colour temperatures of 3000K, 4000K and 5000K are available, and RGBW is offered as a 5-wire system.

Technical specifications
SKU: LS-SGUL-6W-27K
Voltage: 12V AC/DC
Wattage: 6W
Lumens: 485
Colour temperature: 2700K
CRI: >85
Beam angle: 40° lens installed + 15° replaceable lens
LED: Integrated COB LED
IP rating: IP67
Operating temperature: -25~+45°C (-4~113°F)
Lifespan: +50,000 hours
Housing: Die-cast aluminum, black powder-coat
Dimensions: 4" (102mm) x 2" (50mm)
Lead wire: 40" (100cm)
Dimmable: Yes
Warranty: 3-year
Includes: Ground stake, LED uplight with 40° lens, extra 15° lens and white filter

Wiring, power and compatibility
Installation is straightforward low-voltage work: mount on the included inground stake or on the optional wall-mount plate (LS-SGUL-SM), both of which thread onto the 1/2 in knuckle. Run your feed with outdoor wire — LS-OW-16-2-100 in 16-2 AWG or LS-OW-12-2-250 in 12-2 AWG — and make connections with outdoor-rated gel-filled marettes (LS-GEL-MAR) or the tool-free LS-FLEX-LOCK easy splice. Power comes from a 12V supply sized to your run: non-dimmable options range from the 30W LS-12V-30W-O-CV up to the 264W LS-12V-264W-O-CV, plus the 12V AC LS-12AC-200W-LPS outdoor transformer with built-in photocell and timer. For dimming, the 5-in-1 MLT series (Triac/Phase, 0-10V, 1-10V, potentiometer, 10V PWM) runs from 30W to 300W. Note that DC operation is available in RGBW colour temperature only.

Applications and documentation
Think tree and plant uplighting, garden and landscape beds, architectural accent and feature illumination: grazing a stone façade on a heritage home, throwing a 15° shaft up a birch, backlighting ornamental grasses along a walkway, lighting a storefront sign or a church entrance, or defining a patio edge for a restaurant. Contractors like that the stake lets them re-aim a whole yard in twenty minutes the season after planting. For app-based control, scenes and scheduling across up to 250 fixtures, the Casambi 4-channel PWM controller works on 12-24V DC systems. The full technical PDF (LS-SGUL-6W-27K Spec Sheet) is in the Documentation tab with the ordering guide, accessory codes and power supply chart.

Technical Files
