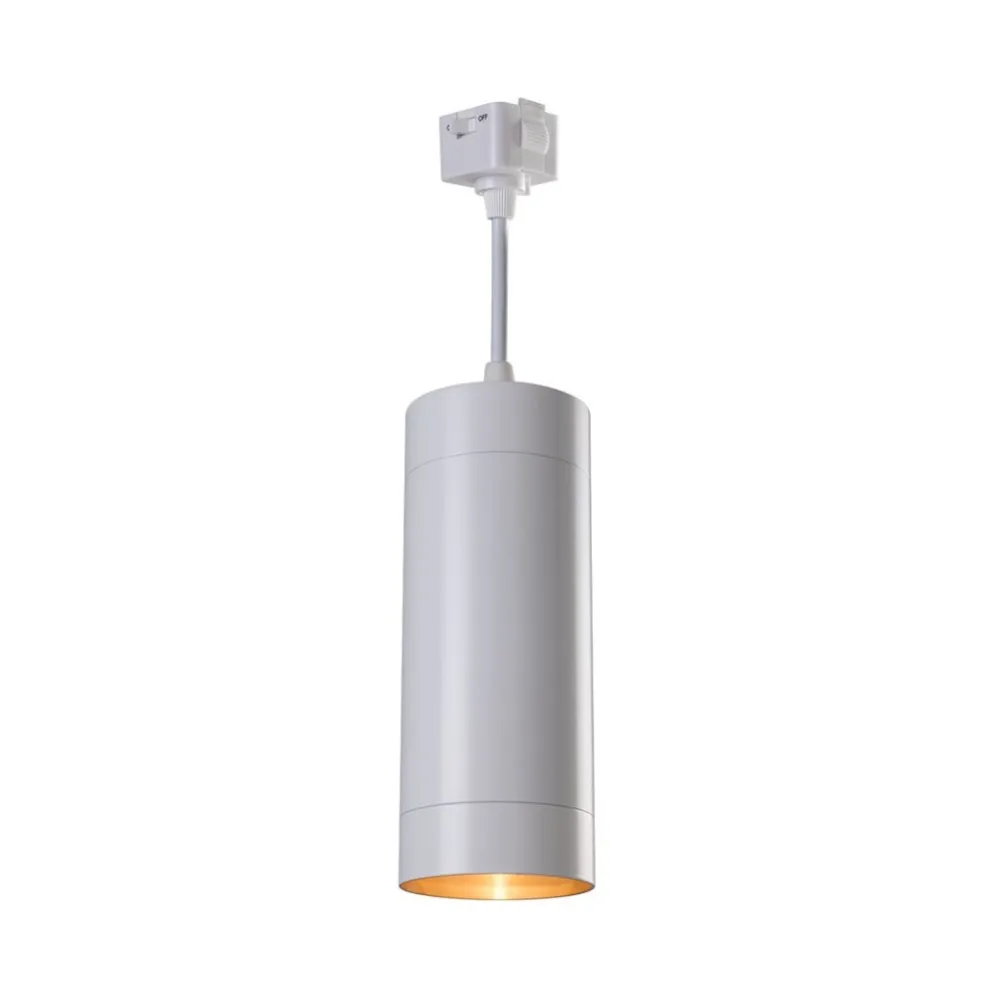

DINE PAR20 TRACK SPOTLIGHT - LCTL-DINE-TR-WH

Clean, bright and discreet
The DINE track pendant series was specifically designed for restaurants and dining applications, allowing ideal control of visual comfort. Constructed of aluminum, which provides superior strength and rigidity, the body features a smooth cylindrical shape, and in white this track pendant light recedes into light ceilings so guests notice the food and the décor rather than the fixture. Low-glare lighting and the flexibility to make on-site adjustments give balanced horizontal or vertical illumination under high or low ceilings.

Lamps and adjustable beam
The E26 porcelain lamp socket accepts 120V PAR20, R20, PAR16 or A19 lamps, 50W max. Choose a dimmable LED PAR20 lamp for a defined beam and lower energy use, or an A19 lamp for a softer glow. The lamp holder bracket is height adjustable up to 2 inches, and the adjustment screw gives an adjustable beam spread from 20° to 110°: narrow to make a dessert display pop, wide to light a communal table from end to end.

Track connection and dimming
This track lighting head is available with 1- or 2-circuit track connectors for track applications, and the ordering guide lists connectors for several track systems, including H-style and L-style tracks as well as 2- and 3-circuit options. Confirm the connector matches your track before installation. The fixture is dimmable with industry standard TRIAC dimming controls and compatible dimmable lamps. Accessories are ordered separately: 1-inch, 2-inch and 4-inch snoots (DNG-SN1, DNG-SN2 and DNG-SN4) come in black or white with a golden interior, and a white snoot keeps the look uniform.

Where it shines
Light the pastry counter of a bakery, a long communal table in a café, the island of an all-white kitchen, a cozy breakfast nook or a boardroom table. As dining room track lighting or kitchen track lighting, a few heads on one run cover the whole space, each fine-tuned on site. On ceilings without track, choose the white Dine PAR20 surface spotlight; for darker décors, the black Dine PAR20 track spotlight shares the same design. The spec sheet, with its dimensional drawing and ordering guide, is in the Documentation tab.

Technical specifications
SKU: LCTL-DINE-TR-WH
Mounting: track, 1- or 2-circuit connectors
Socket: E26 porcelain
Compatible lamps: PAR20, R20, PAR16, A19
Maximum lamp wattage: 50W
Voltage: 120V
Beam spread: adjustable, 20° to 110°
Lamp holder adjustment: up to 2 inches
Dimming: TRIAC, with compatible dimmable lamps
Body: aluminum
Finish: white
