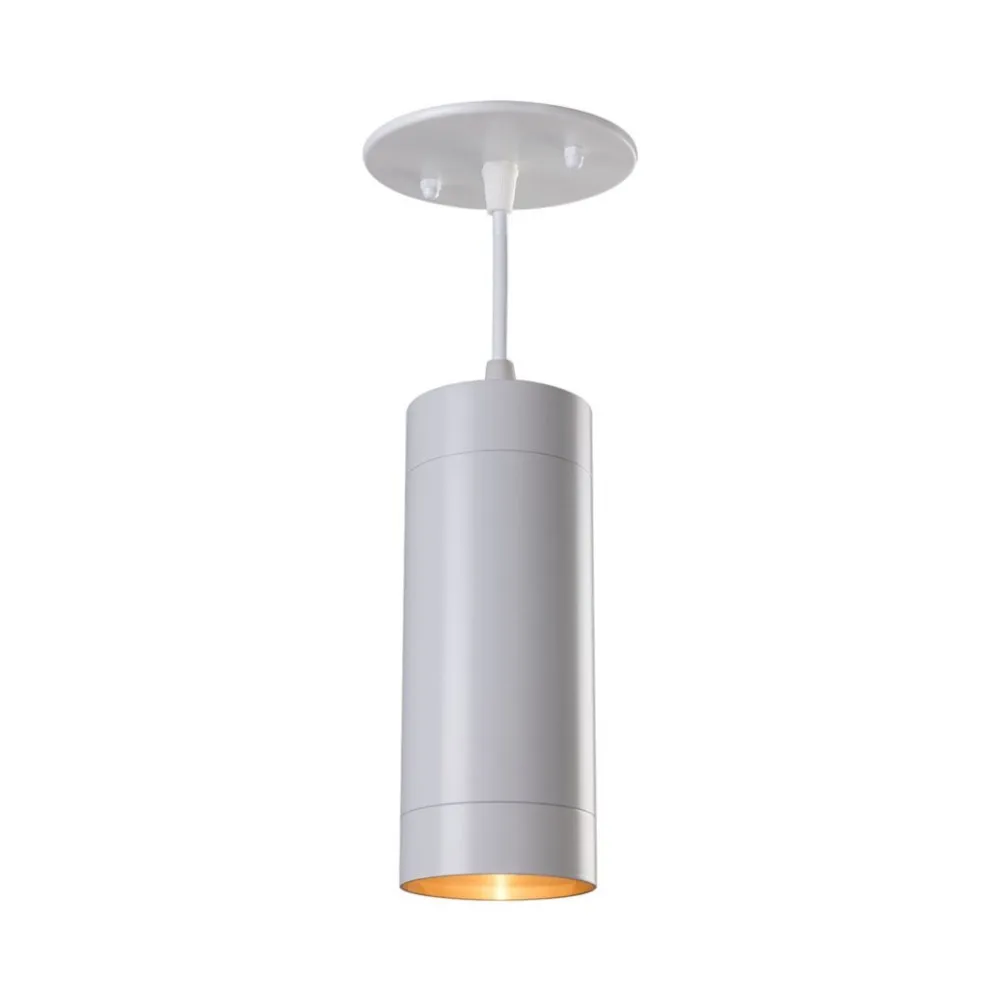

A restaurant-inspired design for any tableThe DINE surface pendant series was specifically designed for restaurants and dining applications, allowing ideal control of visual comfort.
Low-glare lighting and the flexibility to make on-site adjustments deliver balanced horizontal and vertical illumination, whether the ceiling is high or low. Constructed of aluminum, which provides superior strength and rigidity, this
surface mount spotlight features a smooth cylindrical shape that stays discreet in white.
Choose your lamp, shape your beamThe
E26 porcelain lamp socket takes 120V PAR20, R20, PAR16 or A19 lamps up to 50W max. Reflector lamps such as PAR20 and PAR16 are the usual choice for defined beams, while an A19 gives a softer glow. The lamp holder bracket is height adjustable up to 2 inches, and the adjustment screw varies the
beam spread angle from 20° to 110°, so you can tighten the light over a single plate or open it up across a buffet, right on site.
Installation and dimmingMounting is simple: the fixture attaches to an industry standard 4-inch octagon box, the same type of box used for many ceiling fixtures. It is
dimmable with industry standard TRIAC dimming controls and compatible dimmable lamps, so select a lamp rated for dimming. Accessories are ordered separately; the ordering guide lists 1-inch, 2-inch and 4-inch snoots (DNG-SN1, DNG-SN2 and DNG-SN4) in black or white, each with a golden interior. Have a qualified electrician complete the wiring.
Where it works bestPlace a row over a restaurant counter, centre one above a round breakfast table, light a coffee bar or a
kitchen island, or use several to structure an open-concept living and dining area. Because the beam is set on site, each fixture can be fine-tuned once the tables and chairs are in their final position. Want continuity on track? The
white Dine PAR20 track spotlight shares the same design, and the
black Dine PAR20 surface spotlight suits dark ceilings. The spec sheet, with its dimensional drawing and ordering guide, is available in the Documentation tab.
Technical specificationsSKU: LCTL-DINE-SURF-WH
Mounting: industry standard 4-inch octagon box
Socket: E26 porcelain
Compatible lamps: PAR20, R20, PAR16, A19
Maximum lamp wattage: 50W
Voltage: 120V
Beam spread: adjustable, 20° to 110°
Lamp holder adjustment: up to 2 inches
Dimming: TRIAC, with compatible dimmable lamps
Body: aluminum
Finish: white
