DINE PAR20 TRACK SPOTLIGHT

Name: DINE PAR20 TRACK SPOTLIGHT
Brand: LEDCO
SKU: LCTL-DINE-TR-BK
Price: 148.97 CAD
Availability: InStock

SKU: LCTL-DINE-TR-BK

Brand: LEDCO

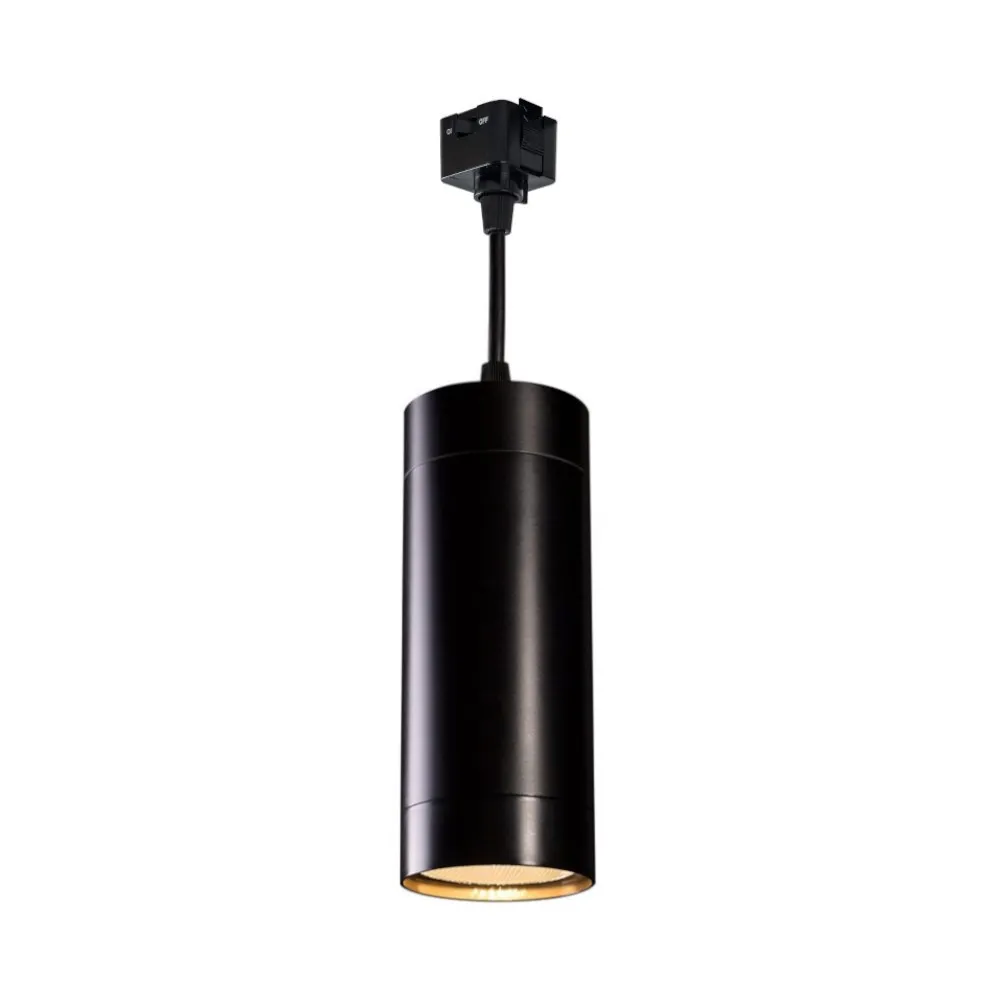

Bring restaurant-style ambiance to your track with the DINE PAR20 track spotlight (SKU LCTL-DINE-TR-BK). Among track lighting heads, this one was specifically designed for restaurants and dining applications: a smooth black aluminum cylinder that takes a standard PAR20 LED bulb and delivers low-glare, well-controlled light over tables, counters and bars. It is a versatile track light head for residential and commercial projects alike, as comfortable in a family kitchen as in a busy bistro.

Inside is an E26 porcelain socket for 120V PAR20, R20, PAR16 or A19 lamps up to 50W max, so you can match the bulb to every room. Turn the adjustment screw to raise or lower the lamp holder bracket up to 2 inches and the beam spread varies from 20° to 110°, from a crisp spot on a plate to a broad wash across a long table. Its aluminum body provides superior strength and rigidity, and the fixture is dimmable with industry standard TRIAC controls when paired with compatible dimmable lamps.

Hang a row of them along a track above a harvest table, a sushi bar, a bistro banquette or a kitchen island, in homes and restaurants across Canada, under high or low ceilings. It connects with 1- or 2-circuit track connectors, and the ordering guide lists options for several track systems, including H-style and L-style. Need the same look without a track? The black Dine PAR20 surface spotlight mounts on a ceiling box, and the white Dine PAR20 track spotlight suits lighter ceilings. Add your favourite dimmable LED PAR20 lamp and set the table.

Designed around the dining experience
The DINE track pendant series was specifically designed for restaurants and dining applications, allowing ideal control of visual comfort. Low-glare lighting and the flexibility to make on-site adjustments give you balanced horizontal or vertical illumination under both high and low ceilings. The aluminum body provides superior strength and rigidity, while its smooth cylindrical shape in black gives this track pendant a clean, modern profile that suits exposed ceilings and dark décors.

Lamp choice and beam control
The E26 porcelain lamp socket accepts 120V PAR20, R20, PAR16 or A19 lamps, 50W max. An LED PAR20 bulb is a natural fit for a defined, energy-efficient beam, and you choose the colour temperature and output that suit the space. The lamp holder bracket is height adjustable up to 2 inches; turning the adjustment screw varies the beam spread angle from 20° to 110°. Tighten it for intimate pools of light on each table, or open it up to light a buffet or a long counter evenly from end to end.

Track compatibility and installation
This track lighting head is offered with 1- or 2-circuit track connectors for track applications. The ordering guide lists connectors for several track systems, including H-style and L-style tracks as well as 2- and 3-circuit options, so confirm the connector matches your track before installing. The fixture is dimmable with industry standard TRIAC dimming controls and compatible dimmable lamps. Accessories are ordered separately: the ordering guide shows 1-inch, 2-inch and 4-inch snoots (DNG-SN1, DNG-SN2 and DNG-SN4) in black or white with a golden interior.

Inspiring applications
In a restaurant, run a line of heads over banquettes and bar counters for true restaurant track lighting; at home, create kitchen island lighting, light a dining table or a wine cellar tasting nook; in business settings, accent a boardroom table or a café counter. For ceilings without track, the black Dine PAR20 surface spotlight offers the same design on a ceiling box, and the white Dine PAR20 track spotlight blends into white ceilings. The spec sheet, with its dimensional drawing and full ordering guide, is in the Documentation tab.

Technical specifications
SKU: LCTL-DINE-TR-BK
Mounting: track, 1- or 2-circuit connectors
Socket: E26 porcelain
Compatible lamps: PAR20, R20, PAR16, A19
Maximum lamp wattage: 50W
Voltage: 120V
Beam spread: adjustable, 20° to 110°
Lamp holder adjustment: up to 2 inches
Dimming: TRIAC, with compatible dimmable lamps
Body: aluminum
Finish: black
