BRICK LIGHT TRIMS FOR RECESSED HOUSING (RH) WHITE

Name: BRICK LIGHT TRIMS FOR RECESSED HOUSING (RH) WHITE
Brand: LUMENSTARLED
SKU: LS-RT06-SRH-WT
Price: 36.97 CAD
Availability: InStock

SKU: LS-RT06-SRH-WT

Brand: LUMENSTARLED

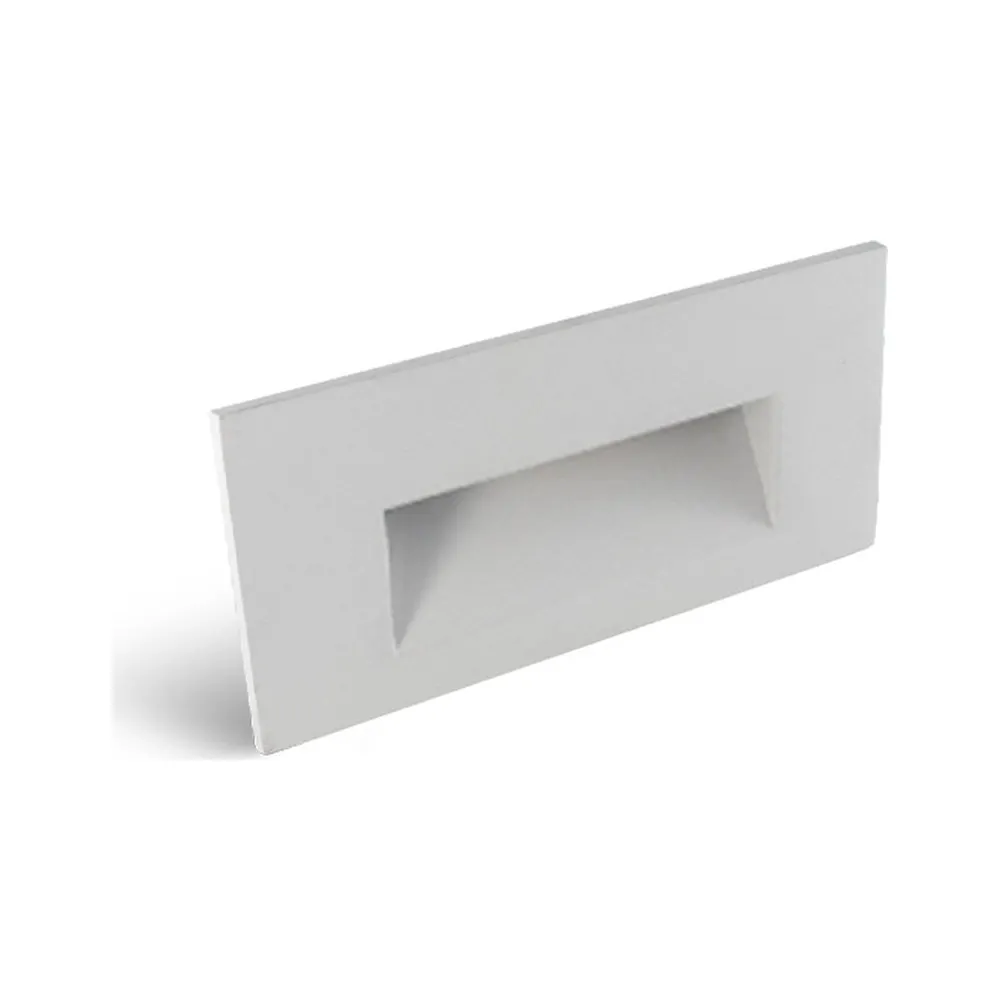

Give your exterior brick lights the clean, finished look they deserve. The LumenstarLED LS-RT06-SRH-WT is the white screwless recessed brick light trim — also called a trim ring, face plate or garniture — made for the Lumix Commercial Grade LED Brick Light system. It's the visible piece of the puzzle: it hides the rough opening of the housing, locks the light engine in place and leaves a smooth, screwless face on your wall, step or riser. If you're searching for trimless recessed lighting looks on stairs, decks and pathways, this is the part that delivers that architectural, no-hardware-showing finish in a bright white powder-coated tone that blends into painted walls, stucco, precast and light masonry.

This trim measures H3-1/4" x W8-9/16" (H84 x W218mm) and is built from zinc-magnesium with a powder-coated finish, so it stands up to weather, road salt and temperature swings instead of chalking or warping. It's part of a 3-part system — rough-in housing, light engine and trim are ordered separately — and it works only with the RT06HV-RH recessed brick light engine. That engine runs on 100-277V AC line voltage, draws 5W, puts out 365 lumens at a 120° beam angle with CRI >90 colour rendering, and the complete luminaire is sealed to IP67 for wet locations, with a rated lifespan of +50,000 hours, an operating range of -30~+45°C and a 3-year warranty.

Specify it for exterior stairs and step lights, deck and balcony edges, walkway and pathway runs, façade grazing and architectural accents on condo entries, restaurant patios, parks, schools and municipal walkways. That -30~+45°C operating range matters in Canada, where a stairwell light lives through freeze-thaw cycles and January storms. This trim fits LumenstarLED recessed brick light housings (LS-RT06-HSG) with the recessed light engine — never the Louver or Window versions. Prefer a darker face? The same trim is offered as Brick light trim for recessed housing (RH) black. Order your trims with your housings and engines and finish the job in one trip.

Light engine sold separately
This trim does not include the light engine. It fits the RT06 brick light engines with recessed housing: LS-RT06HV-RH-3K, LS-RT06HV-RH-4K (on request, contact us).

Compatible with
Works with:
Fixture: LS-RT06HV-3K, LS-RT06HV-4K

Built to last outdoors
The LS-RT06-SRH-WT is a screwless recessed trim made of zinc-magnesium with a powder-coated finish, the same family of materials used throughout the Lumix Commercial Grade LED Brick Light platform, whose housing is die-cast zinc magnesium. That matters on an exterior step light or pathway light: the face is the part exposed to rain, snow, sprinklers, salt and the odd boot. The screwless design means no visible fasteners across the front, so the finished wall reads as a clean recessed slot rather than a piece of hardware, and the white finish keeps the fixture visually quiet against painted concrete, stucco or light brick.

Light quality and electrical details
The trim itself carries no electronics — the light comes from the matching RT06HV-RH recessed brick light engine, which operates on 100-277V AC line voltage (dimmable 120V AC available on request, with compatible line-voltage dimming controls). The engine delivers 5W for 365 lumens at a 120° beam angle, with CRI >90 for true-looking stone, wood and landscaping colours at night. Stocked colour temperatures are 3000K and 4000K; 2700K, 3500K, 5000K and Amber (Turtle Friendly) are available on custom order with a 10-piece MOQ for custom colours. The assembled luminaire is rated IP67, operates from -30~+45°C (-22~113°F), is rated for +50,000 hours and carries a 3-year warranty. Lead wire length is 12" (30cm).

Technical specifications
SKU: LS-RT06-SRH-WT
Type: Screwless recessed trim (RH)
Finish: White
Trim dimensions: H3-1/4" x W8-9/16" (H84 x W218mm)
Trim material: Zinc-magnesium, powder-coated
Compatible light engine: RT06HV-RH recessed brick light engine only
Recessed housing size: W6-3/4" (171mm) x D3-1/8" (80mm) x H3-1/8" (80mm)
System voltage: 100-277V AC
Wattage: 5W
Lumen output: 365
CRI: >90
Beam angle: 120°
IP rating: 67
Operating temperature: -30~+45°C (-22~113°F)
Lifespan: +50,000 hours
Warranty: 3 years

Installation and compatibility
Lumix is a 3-part system: the rough-in housing (back box), the light engine, and the trim with its install accessories are all ordered separately. Plan the housing first — the LS-RT06-HSG black junction box measures L8-7/16 x H3-1/8 x W3-1/8" (L215 x W80 x H80mm) and includes three 1/2" NPS knockouts with plugs for clean conduit or cable entry. Mounting accessories exist for every substrate: the LS-RT06-BKT masonry bracket set for brick and masonry, the LS-RT06-STD stud mounting bracket and bar, and the LS-RT06-CLP drywall spring clips. For the wiring run, the LS-OW-16-2-100 outdoor wire (16-2 AWG, 100') and the LS-GEL-MAR outdoor-rated gel-filled marettes (pack of 2) keep connections sealed in wet conditions. Important: this SRH trim mates only with the recessed light engine — the Louver (SLV) and Window (SW) trims belong to the RT06HV engine and are not interchangeable.

Where it works and what's documented
Think stair risers in a condo lobby, the perimeter of a rooftop patio, a long garden path at a municipal park, the base of a hotel façade, or deck and balcony edges on a custom home — anywhere you want usable light at ankle height without glare in the eyes. Because the brick light sits flush in the wall, snow shovels and patio furniture pass by without catching it. For matching multi-unit or commercial runs, mix finishes as the architecture demands: the same screwless recessed trim is available as Brick light trim for recessed housing (RH) black. Full ordering codes, dimensions and accessory tables are in the LS-RT06-SRH-WT spec sheet available in the Documentation tab.
