BRICK LIGHT TRIMS FOR RECESSED HOUSING (RH) BLACK

Name: BRICK LIGHT TRIMS FOR RECESSED HOUSING (RH) BLACK
Brand: LUMENSTARLED
SKU: LS-RT06-SRH-BK
Price: 36.97 CAD
Availability: InStock

SKU: LS-RT06-SRH-BK

Brand: LUMENSTARLED

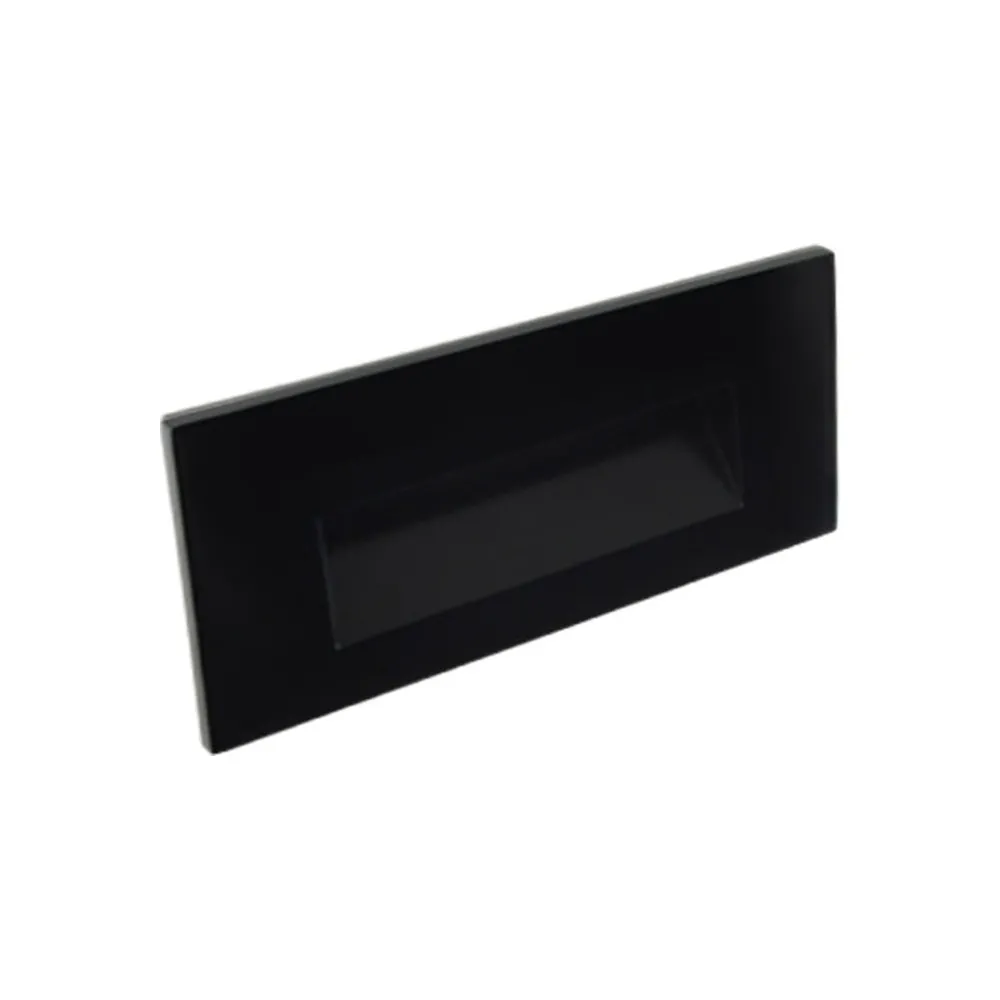

Give your brick light installation the clean, finished face it deserves. The LS-RT06-SRH-BK is the black screwless recessed trim from the Lumenstar LED Lumix Commercial Grade LED Brick Light system — the visible faceplate that frames the light engine and hides the rough-in housing. People look for it as a brick light trim, a recessed brick light faceplate, a step light trim ring or simply a trimless recessed lighting look for exterior walls, and that's exactly what it delivers: no visible screws, just a crisp black rectangle sitting flush against brick, block, stone, stucco, tile or drywall. It's used for step and stair lighting, deck and balcony illumination, pathway and walkway lighting, exterior wall and façade lighting, and architectural accent work.

This trim measures H3-1/4" x W8-9/16" (H84 x W218mm) and is made of zinc-magnesium with a powder-coated finish, so it keeps its colour and shrugs off the weather year after year. It's part of the Lumix three-part system rated IP67 for fully sealed wet-location use, built around a die-cast zinc magnesium housing. The matching recessed light engine runs on 100-277V AC line voltage, draws 5W for 365 lumens at a 120° beam angle, offers CRI >90 colour rendering in 3000K or 4000K, is dimmable with compatible line-voltage controls, operates from -30 to +45°C and is rated for more than 50,000 hours with a 3-year warranty.

Black is the finish of choice when you want the fixture to disappear by day and the light to do the talking at night — think front entry steps, a garden retaining wall, condo corridors, hotel façades, municipal walkways or a restaurant patio that has to survive a real Canadian winter. Important: this screwless recessed trim works only with the RT06HV-RH recessed brick light engine and the LS-RT06-HSG rough-in housing, both ordered separately, since housing, light engine and trim are sold as separate parts. Prefer a different look? Compare the Brick light trims for recessed housing (RH) brushed nickel and the Brick light trims for recessed housing (RH) white. Order your trims with your housings and finish the job right the first time.

Light engine sold separately
This trim does not include the light engine. It fits the RT06 brick light engines with recessed housing: LS-RT06HV-RH-3K, LS-RT06HV-RH-4K (on request, contact us).

Compatible with
Works with:
Fixture: LS-RT06HV-3K, LS-RT06HV-4K

A three-part system, and this is the part everyone sees
The Lumix Commercial Grade LED Brick Light is built as a 3-part system: the rough-in housing (back box), the light engine, and the trim with its install accessories — each ordered separately. The LS-RT06-SRH-BK is the black screwless recessed trim, the finishing piece that frames the aperture, covers the joint between the fixture and the wall material, and protects the housing edges. Because it is screwless, there are no fasteners breaking the line of the faceplate, which is why architects and designers reach for it on projects where a clean architectural appearance matters more than anything.

Materials and durability
The trim is formed in zinc-magnesium and finished with a powder coat in black, mated to a die-cast zinc aluminum housing for strength. The complete assembly is fully sealed to IP67, which means it is built for outdoor wet-location installations — driving rain, snow load, spring melt and sprinkler spray included. The system carries an operating temperature range of -30 to +45°C (-22 to 113°F), a rated life of more than 50,000 hours and a 3-year warranty.

Technical specifications
SKU: LS-RT06-SRH-BK
Brand: LumenstarLED
Type: Screwless recessed trim
Finish: Black, powder-coated
Trim material: Zinc-magnesium
Trim size: H3-1/4" x W8-9/16" (H84 x W218mm)
Recessed housing size: W6-3/4" (171mm) x D3-1/8" (80mm) x H3-1/8" (80mm)
Voltage (system): 100-277V AC
Wattage (system): 5W
Lumen output: 365
Colour temperature: 3000K / 4000K
CRI: >90
Beam angle: 120°
IP rating: IP67
Lead wire length: 12" (30cm)
Lifespan: +50,000 hours
Warranty: 3 years

Compatibility and installation
Read this carefully before ordering: the recessed horizontal trims, including this black one, can only be used with the RT06HV-RH light engine for the Recessed Brick Light. They do not fit the Louver or Window style engines — those take the SLV and SW trims, such as the Brick light horizontal trims - brushed nickel. The rough-in housing LS-RT06-HSG is a black junction box measuring L8-7/16 x H3-1/8 x W3-1/8" (L215 x W80 x H80mm) with three 1/2" NPS knockouts and plugs. Mounting accessories are chosen by surface: the LS-RT06-BKT masonry bracket set for brick and masonry, the LS-RT06-STD stud mounting bracket and bar, or the LS-RT06-CLP drywall spring clips. For outdoor runs, the LS-OW-16-2-100 100' outdoor 16-2 AWG wire and the LS-GEL-MAR outdoor-rated gel-filled marettes keep connections dry and secure. The light engine is dimmable with compatible line-voltage dimming controls, and a dimmable 120V AC version is available on request. Colour temperatures 3000K and 4000K are stocked; 2700K, 3500K, 5000K and Amber (turtle friendly) are custom order, as are custom trim colours with a 10-piece minimum.

Where it earns its keep, and documentation
Picture a row of these washing the treads of a cedar deck stair, marking the edge of a sloped driveway, grazing a limestone façade on a municipal building, or lighting a condo entry walkway so the 5 a.m. shift never misses a step. Contractors like them because the housing goes in at framing or during masonry work and the trim snaps on at the end, after the finish material is set — so the trim stays clean and unmarked. Matching finishes across a whole project is easy: pair black here with Brick light trims for recessed housing (RH) white or Brick light trims for recessed housing (RH) brushed nickel on other elevations. The full technical spec sheet with dimensions, ordering codes and the accessory list is in the Documentation tab.
