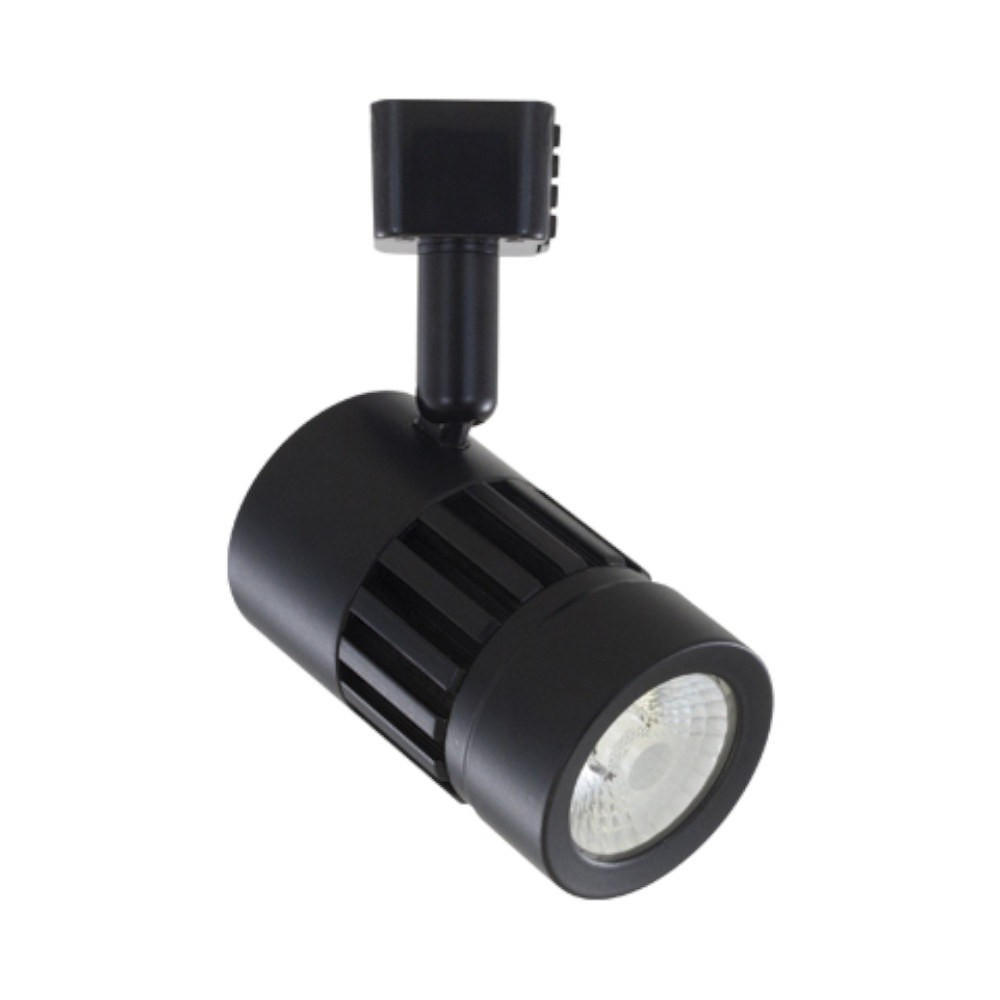

7509 8.5W 38° SPOTLIGHT - DIM TO WARM

Name: 7509 8.5W 38° SPOTLIGHT - DIM TO WARM
Brand: LEDCO
SKU: LCTL-ATF8.5-DTW-BK
Price: 135.97 CAD
Availability: InStock

SKU: LCTL-ATF8.5-DTW-BK

Brand: LEDCO

Love the cozy glow of a dimmed halogen lamp but want the efficiency of LED? The 7509 8.5W 38° spotlight - dim to warm is a compact LED track head specially designed for task and accent lighting, and its light gets warmer as you dim it. Also searched as track lighting heads, track light heads or a dim-to-warm track spotlight, model LCTL-ATF8.5-DTW-BK comes in a sleek black finish that blends into dark ceilings and black track, ideal for dining rooms, living rooms, restaurants, wine bars and boutiques where ambiance matters as much as visibility.

Its high powered 8.5W LED chip maintains uniform intensity with a typical luminous flux up to 532 lumens, making it a suitable replacement for 50W PAR20 halogen lamps. At full brightness it shines at a warm white 2750 K, and as you turn the dimmer down, the integrated driver shifts the light toward 2000 K for an intimate, relaxing mood. The CRI of 90 keeps food, wood and skin tones looking natural, while the 38° beam gives a balanced spread for walls, tables and shelves. Constructed of aluminum with a colour matching heat sink for maximum heat dissipation, the head tilts up to 90° and rotates 330°. It runs on 120V AC, is dimmable with TRIAC or ELV dimming controls, carries cETLus certification and offers a rated life of 35,000 hours, backed by a 5-year warranty.

Picture it above the dining table of a Montreal condo, over the bar of a Toronto bistro or along the art wall of a Vancouver gallery: clear and bright when you need to see, soft and warm for evening service or a family dinner. Approved for dry, indoor locations, this dim-to-warm track light suits homes and businesses across Canada. Need a lighter look? Choose the 7509 dim-to-warm spotlight in white, and for larger displays that call for more output, see the 7415 15W 38° spotlight. Check the connector against your track lighting system and bring warm, flattering light to every room!

What dim-to-warm means
Standard LEDs keep the same colour when dimmed, which can feel cold in a dining room at night. The ATF7509-DTW changes that: its integrated driver dims the light to a warmer colour temperature when used with TRIAC or ELV dimming controls, moving from 2750 K at full output toward 2000 K at low levels, the same warm drift people love in halogen and incandescent lamps. This version, LCTL-ATF8.5-DTW-BK, combines that dim-to-warm LED technology with a black finish and a 38° beam, a versatile choice for accent lighting in homes, restaurants and hospitality spaces.

Construction and light quality
Constructed of aluminum, the body features an aesthetically pleasing smooth cylindrical shape and includes a colour matching aluminum heat sink for maximum heat dissipation, which helps the LEDs hold their output: the spec sheet rates lumen maintenance at 70% at 50,000 hours. The high powered 8.5W chip delivers a typical luminous flux up to 532 lumens, or 62.6 lumens per watt, with a CRI of 90 for rich, accurate colours. The series is also made in 15° and 60° beam angles, while this model's 38° beam, confirmed by the photometric report on the spec sheet, balances punch and spread for artwork, shelving and table tops.

Electrical and installation details
The head operates on a 120V AC primary voltage and is dimmable with TRIAC or ELV controls; check the compatibility of your dimmer before installing to get the smoothest warm shift. It is fitted with a track connector, and the ordering guide on the spec sheet lists the connector styles offered for the series, so confirm that yours matches your track system. Adjustable up to 90° tilt and 330° rotation, it can spotlight in multiple directions and be re-aimed in seconds. It is approved for dry, indoor locations and cETLus certified. Switch off the power at the breaker before adding or moving heads, and have a qualified electrician install the track and its power feed.

Technical specifications
SKU: LCTL-ATF8.5-DTW-BK
Series: ATF7509-DTW dim-to-warm LED track head
Wattage: 8.5W
Lumens: 532
Efficacy: 62.6 lumens per watt
Colour temperature: 2750 K, dimming to 2000 K
CRI: 90
Beam angle: 38°
Voltage: 120V AC
Dimming: TRIAC, ELV
Adjustability: 90° tilt, 330° rotation
Rated life: 35,000 hours
Lumen maintenance: 70% at 50,000 hours
Location: dry, indoor
Certification: cETLus
Finish: black
Warranty: 5 years

Applications and documentation
Hang a row of these LED track light heads over restaurant banquettes and lower the dimmer as the evening goes on, aim a couple at the wine wall of a Québec City bistro, or light a Calgary gallery wall or a Halifax kitchen island with the same warm, welcoming tone. The 7509 dim-to-warm spotlight in white lets you match a lighter ceiling in another room. The spec sheet, with the technical drawing, ordering guide and photometric report, is available in the Documentation tab.
