7415 15W 38° SPOTLIGHT

Name: 7415 15W 38° SPOTLIGHT
Brand: LEDCO
SKU: LCTL-ATF15-30K-BK
Price: 135.97 CAD
Availability: InStock

SKU: LCTL-ATF15-30K-BK

Brand: LEDCO

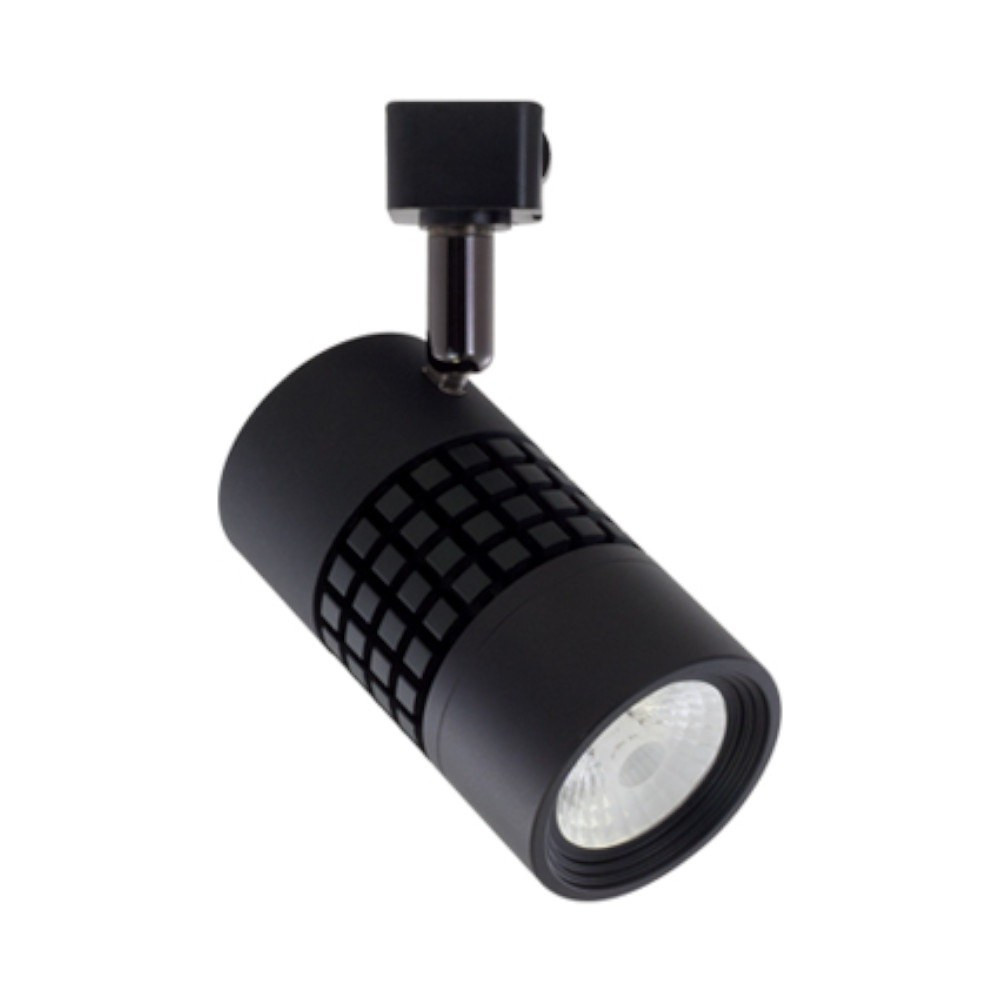

Need serious punch from a single track head? The 7415 15W 38° spotlight (LCTL-ATF15-30K-BK) is a high powered LED track head specially designed for task and accent lighting, with a sleek black cylinder that looks sharp on any track. If you are shopping for track lighting heads, LED track light heads, a track spotlight or a replacement for old halogen track lamps, this head lights a kitchen counter, a retail wall, a gallery piece or a workshop bench with confidence.

Its 15 W LED array maintains uniform intensity, and the spec sheet presents it as a suitable replacement for 55W PAR38 halogen and 22W PAR20 CMH lamps. In the photometric report for the 15 W, 3000 K, 38° model, it delivers 1,158.2 lumens with a 38° beam spread, and 84% of that light stays within the 0-30° zone for crisp, controlled accents. The 3000 K warm white suits homes, restaurants and boutiques. The aluminum body includes a colour matching heat sink for maximum heat dissipation, with 70% lumen maintenance at 50,000 hours and a 5-year warranty. The head tilts up to 90° and rotates 330°, dims with TRIAC controls (TRIAC/ELV), runs on 120 V and is ENERGY STAR approved and cULus listed for dry locations.

Picture it over a butcher-block island in a Halifax kitchen, washing a feature wall in a Calgary showroom or spotlighting the wine display of a Montréal restaurant. Where a PAR38 halogen lamp once drew 55W, this LED spotlight needs only 15 W. Prefer a white head? The 7415 15W 38° spotlight in white keeps the same 3000 K colour, while the 7415 15W 38° spotlight in 4000 K offers a crisper, neutral white in black. Check the connector for your track system and upgrade your lighting today!

High output in a slim cylinder
According to its spec sheet, the ATF7415 is a 15W high powered, ENERGY STAR approved LED track fixture specially designed for task and accent lighting; this black 3000 K, 38° version carries the code LCTL-ATF15-30K-BK. The aluminum body features an aesthetically pleasing smooth cylindrical shape and includes a colour matching aluminum heat sink for maximum heat dissipation, which is what keeps a high powered LED array performing: the spec sheet rates lumen maintenance at 70% at 50,000 hours.

Light output you can measure
The photometric report in the spec sheet covers the 15 W, 3000 K, 38° model: 1,158.2 lumens in total, with 972.8 lumens (84%) in the 0-30° zone and 1,079.6 lumens (93.2%) in the 0-40° zone. Measured spreads are 34.0° vertical and 33.9° horizontal. Centre beam illuminance reaches 178.3 fc at 4 ft over a 2.4 ft beam, 79.3 fc at 6 ft over 3.7 ft, 44.6 fc at 8 ft over 4.9 ft and 28.5 fc at 10 ft over 6.1 ft, which makes it a solid choice for accent lighting under higher ceilings. The series comes with a CRI of 80 or 90 and in 15°, 20°, 38° and 60° beam angles; this model is the 38° spotlight.

Electrical, dimming and installation
The fixture runs on a 120 V primary voltage and is dimmable with TRIAC dimming controls (dimming technology: TRIAC/ELV); check dimmer compatibility before you install. It is cULus listed, ENERGY STAR approved, LM79 and LM80 tested, and approved for dry locations. Adjustable up to 90° tilt and 330° rotation, it can spotlight in multiple directions. The spec sheet states the connector supplied and lists other connector configurations: confirm the style matches your track system before ordering. For glare control or a tighter look, the spec sheet also lists honeycomb and snoot accessories for the series. Have a licensed electrician install the track and its power feed.

Where it earns its place
In a Calgary furniture showroom, a row of black 7415 heads brings sofas and art to life; in a Halifax kitchen, a few heads over the island give bright task light for cooking; in a Thunder Bay hardware store, they light signage and end displays. For a clean look on white ceilings, choose the 7415 15W 38° spotlight in white; for a cooler light in workshops or offices, see the 4000 K version in black. The spec sheet, with photometry, drawing and ordering guide, is in the Documentation tab.

Technical specifications
Model: LCTL-ATF15-30K-BK
Series: ATF7415 LED track head
Finish: black
Power: 15 W
Colour temperature: 3000 K
Beam angle: 38°
Lumens (photometric report, 15 W, 3000 K, 38°): 1,158.2
Replaces: 55W PAR38 halogen, 22W PAR20 CMH
Lumen maintenance: 70% at 50,000 hours
Tilt / rotation: 90° / 330°
Voltage: 120 V
Dimming: TRIAC/ELV
Certifications: cULus, ENERGY STAR, LM79, LM80
Location: dry
Warranty: 5 years
Dimensions (drawing): 5 5/8 in (143 mm), 5 3/16 in (132 mm), 2¾ in (70 mm)
