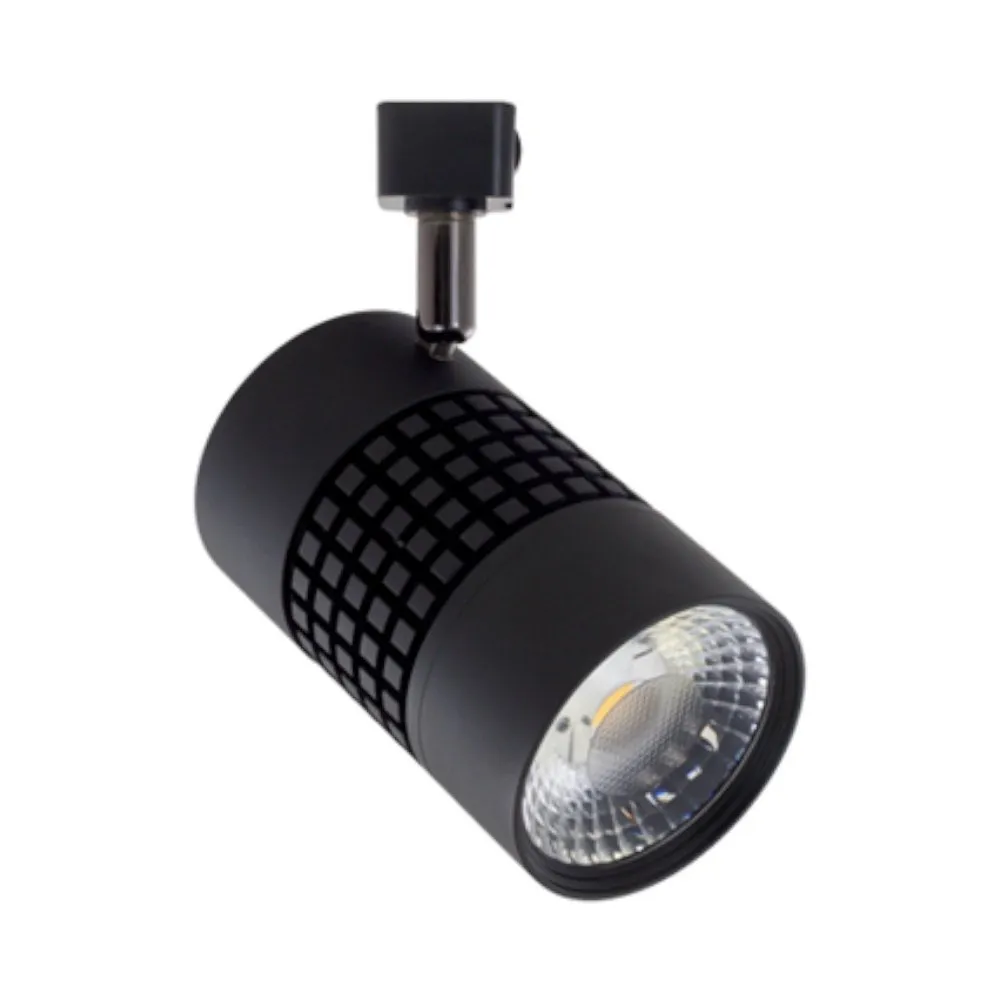

7425 25W 38° SPOTLIGHT - LCTL-ATF25-40K-BK

Name: 7425 25W 38° SPOTLIGHT - LCTL-ATF25-40K-BK
Brand: LEDCO
SKU: LCTL-ATF25-40K-BK
Price: 216.97 CAD
Availability: InStock

SKU: LCTL-ATF25-40K-BK

Brand: LEDCO

Maximum output, neutral white and a bold black finish: the 7425 25W 38° spotlight in 4000 K (LCTL-ATF25-40K-BK) is the brightest version of this high powered LED track head, specially designed for task and accent lighting. It suits spaces where people need to see detail, from showrooms and studios to workshops, gyms and grocery aisles. Searching for track lighting heads, LED track light heads or a powerful LED spot to replace halogen? This black cylinder puts crisp light exactly where you point it.

At 4000 K, the spec table rates its 25 W LED array at 2,600 lumens, the top figure of the series, with a CRI of 90 that keeps colours accurate and details sharp. The spec sheet presents the series as a suitable replacement for 100W halogen and 39W PAR20 CMH lamps. The 38° beam spread balances intensity and coverage; the photometric report, run on the 3000 K, 38° version, measures spreads of 40.3° vertical and 40.2° horizontal. The head tilts up to 90° and rotates 330°, the aluminum body includes a colour matching heat sink for maximum heat dissipation, and lumen maintenance reaches 70% at 50,000 hours. It is dimmable with TRIAC dimming controls, runs on 120 V, and is ENERGY STAR approved, cULus listed for dry locations and covered by a 5-year warranty.

Imagine it above the vehicles of a Brossard car showroom, over the workbenches of a Hamilton maker space or across the produce displays of a Regina grocery store: neutral white light at 4000 K reveals every detail. One head can take the place of a 100W halogen while drawing 25 W. For a white ceiling, choose the 7425 25W 38° spotlight in white, 4000 K; for warmer zones such as lounges or dining areas, the 3000 K version in black. Check the connector for your track system and power up your space!

The brightest configuration
According to its spec sheet, the ATF7425 is a 25W high powered, ENERGY STAR approved LED track fixture specially designed for task and accent lighting; this black 4000 K, 38° version carries the code LCTL-ATF25-40K-BK. The spec table lists 2,500 lumens at 3000 K, 2,575 lumens at 3500 K and 2,600 lumens at 4000 K, so this model sits at the top of the range, and the whole series has a CRI of 90. That combination of high output, 4000 K neutral white and faithful colour makes it a strong choice for demanding task lighting.

Construction and durability
The aluminum body has an aesthetically pleasing smooth cylindrical shape and includes a colour matching aluminum heat sink that provides maximum heat dissipation, a must for a 25 W array. Lumen maintenance is rated at 70% at 50,000 hours, and the fixture is LM79 and LM80 tested and cULus listed for dry locations, with a 5-year warranty. The black finish looks sharp on white ceilings and melts into dark or exposed ones, perfect for industrial and loft-style interiors.

Beam and photometry
The series offers 15°, 25° and 38° beams; this model is the 38° spotlight, the widest of the three. The photometric report was run on the 3000 K, 38° version (2,507.4 lumens): it gives beam widths of 1.5 ft at 2 ft, 2.9 ft at 4 ft, 4.4 ft at 6 ft, 5.9 ft at 8 ft and 7.3 ft at 10 ft, with 96.1% of the lumens within the 0-60° zone. Use these as reference points for spacing heads; rated at 2,600 lumens, this 4000 K version is specified for slightly more output than the tested model. The head tilts up to 90° and rotates 330° to aim in multiple directions.

Installation and ideas
It runs on a 120 V primary voltage and is dimmable with TRIAC dimming controls; check dimmer compatibility before installing. The spec sheet lists the connector supplied and other connector configurations, so confirm the match with your track lighting, and have a licensed electrician install the track and its power feed. Honeycomb and snoot accessories for the series are listed too. In a Brossard car showroom, a row of these heads makes paint and chrome gleam; in a Hamilton maker space, they light each workbench; in a Regina grocery store, they keep produce displays bright and fresh-looking. Pair it with the 7425 25W 38° spotlight in white, 4000 K or the 3000 K version in white. The spec sheet is in the Documentation tab.

Technical specifications
Model: LCTL-ATF25-40K-BK
Series: ATF7425 LED track head
Finish: black
Power: 25 W
Colour temperature: 4000 K
Lumens: 2,600
CRI: 90
Beam angle: 38°
Replaces: 100W halogen, 39W PAR20 CMH
Lumen maintenance: 70% at 50,000 hours
Tilt / rotation: 90° / 330°
Voltage: 120 V
Dimming: TRIAC
Certifications: cULus, ENERGY STAR, LM79, LM80
Location: dry
Warranty: 5 years
Dimensions (drawing): 6½ in (165 mm), 6 in (152 mm), 3½ in (89 mm)
